ENGEL Duo 16050/2300 Injection moulding machine

Show in original language

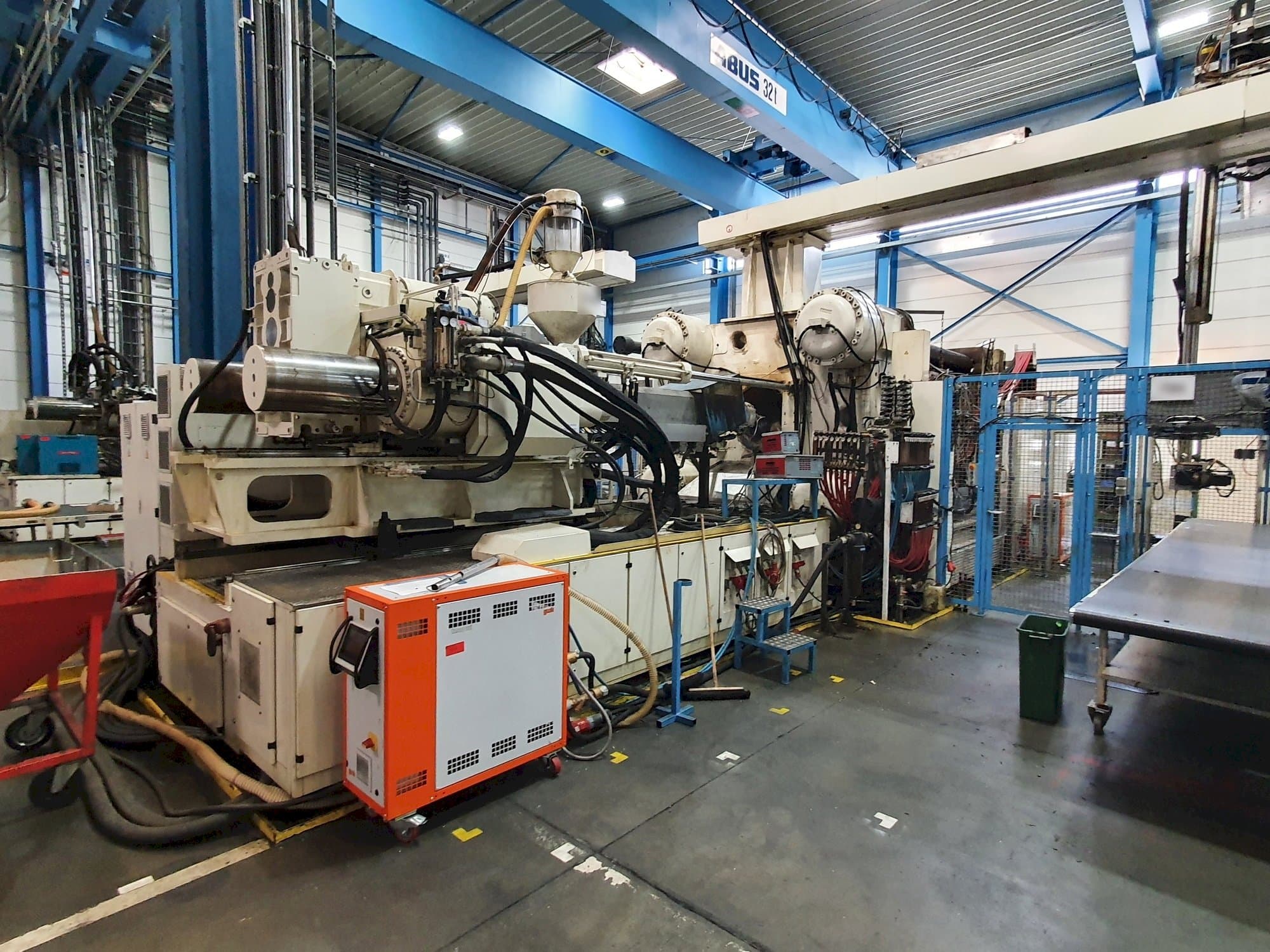

This ENGEL Duo 16050/2300 Injection moulding machine was made in 2002. It is equipped with an Engel control unit. The machine has a clamping force of 23000 kN and a screw diameter of 135 mm.

Overview

brand: Engel
year: 2002
MODEL: Duo 16050/2300
production hours: 4985
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ENGEL

Technical Information - Engel Duo 16050/2300

General Data

Machine weight: 14100 kg

Control Unit

Brand: ENGEL

Injection Unit

Screw diameter: 135 mm
Injection pressure: 16400 N/cm3 BAR

Clamping unit

Clamping force: 23000 kN
Opening stroke: 3000 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar distance horizontal/vertical 2000/1600 mm
- - Clamping platen horizontal/vertical, 2900/2500 mm
- - Mold installation height max/min 2000/800 mm
- - Total mold weight: 54000 kg
- - Centering ds/as :250/250 mm
- - Crosshead thread m30
- - Injection volume 8870 cm3
- - Cascade 15-fold, core pulls fap/bap 2/3
- - Heating circuits ma/psg 40/12
Qualitative Machine Benefits:
- - Linear handling robot engel type erc xxl
- - Protective enclosure
- - 560 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
