- ➤ Used Emmegi Emmegi Diamant XL7700 | Universal Center

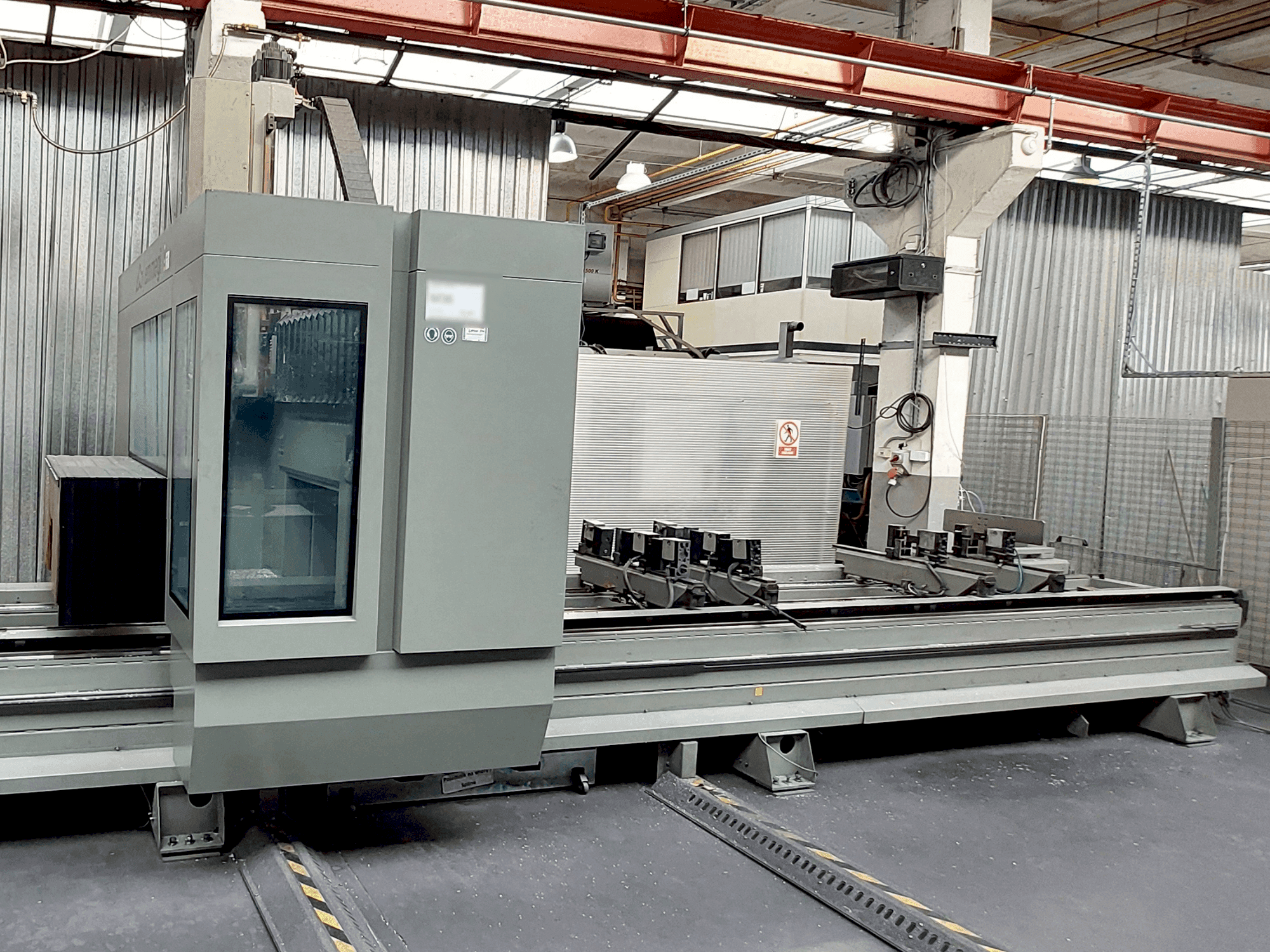

This 4-axis Emmegi Diamant XL7700 universal machining center was manufactured in 2013. It features a large working area with X-Axis at 7700 mm, Y-Axis at 900 mm, and Z-Axis at 380 mm. The spindle can reach speeds up to 20,000 rpm, ideal for diverse machining tasks. A great opportunity to buy this Emmegi Diamant XL7700 universal machining center. Contact us for further details regarding this universal machining center.
Overview
- brand: Emmegi
- year: 2013
- MODEL: Emmegi Diamant XL7700
- production hours: 13296
- application type: Milling
- Location: Poland
- machine type: Universal Machining Centre
- availability: Immediately
Technical Information - Emmegi Emmegi Diamant XL7700
General Data
- Machine weight: 6800 kg
Main drive
- Spindle speed range: 20000 1/MIN
- Spindle motor power: 7.5 kW
- Number of axis: 4
Movement
- X-AXIS Movement: 7700 mm
- X-AXIS Rapid traverse: 80 m/min
- Y-AXIS Movement: 900 mm
- Y-AXIS Rapid traverse: 64 m/min
- Z-AXIS Movement: 380 mm
- Z-AXIS Rapid traverse: 64 m/min
- A-AXIS Rapid traverse: 10,000 °/min
- AXIS 1 Movement: 0° ÷ 180
Additional Equipment
- - Independent, Adjustable Work Areas on X-Axis: 2
- - Optional Tool Holder Cone: ISO 30 (DIN 69871)
- - Pull Stud for Tool Holder Cone ISO 30: Special
- - Number of Tool Magazine Slots for HSK F63: 9
- - Number of Tool Magazine Slots for ISO 30: 10
- - Optional Number of Clamping Systems (total): Up to 12 // Positioning of Clamping Systems Standard: Automatic
- - Optional Positioning of Clamping Systems: Automatic and independent
- - Number of Stops Standard: 2
- - Optional Number of Stops (total): 4
- - Average Absorbed Electric Power: 12 kW
Additional Information
- Technical Machine Benefits:
- - Travel path x-axis (longitudinal): 6500 mm // travel path y-axis (lateral): 1095 mm // travel path z-axis (vertical): 800 mm
- - Max. Speed for tool holder cone iso 30: 24,000 rpm
- - Positioning accuracy over 1000 mm: +/- 0. 15 mm
- - Tool holder cone standard: hsk-f 63 (din 69893)
- - Max. Tool dimensions: milling-drilling tools diameter/length (flat contact surface of tool holder): 63 / 168 mm
- - Max. Tool dimensions: disk milling cutters diameter/thickness and length of tool holder for hsk f63: 250 / 5 / 125 mm
- - Max. Tool dimensions for iso 30: 180 / 5 / 125 mm
- - Tool change time (span to span) for hsk f63: < 16 seconds // tool change time for iso 30: < 18 seconds
- - Number of clamping systems standard: 6
- - Installed electric power: 15 kw
- - 2 Units available. Machines still under power.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
