EMCO Emcoturn 220 Lathe

Show in original language

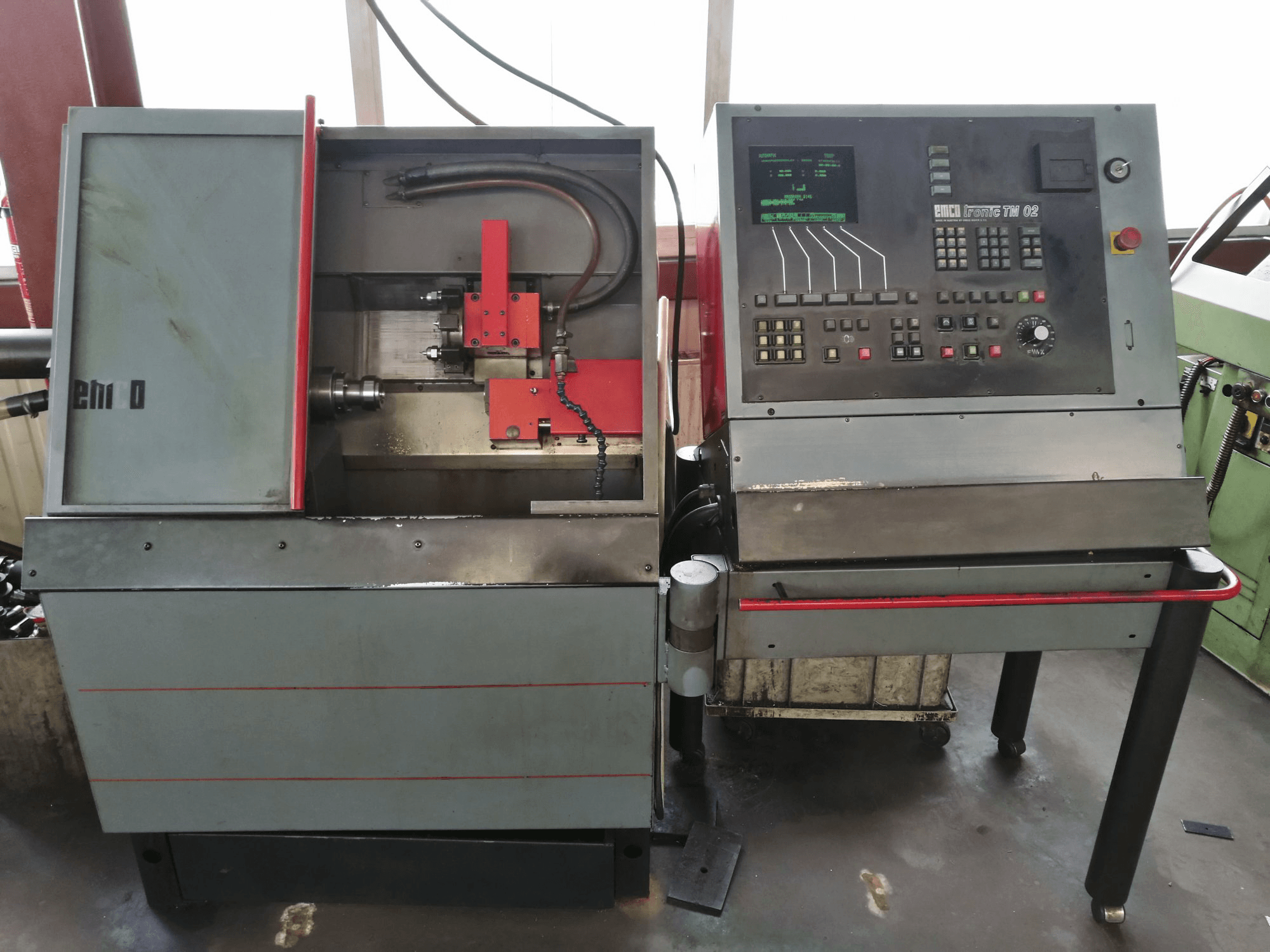

This EMCO Turn 220 Lathe was manufactured in 1990 in Austria and has a working record of approximately 30300 production hours. Equipped with an EMCO Emcotronic TM02 Control unit, this machine stands out due to its 8x automatic tool changer and has mainly worked with non-ferrous metals during the past.

Overview

brand: EMCO
year: 1990
MODEL: Turn 220
production hours: 30300
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: EMCO

Technical Information - EMCO Turn 220

General Data

Measurements width: 2089 mm
Measurements depth: 854 mm
Measurements height: 1548 mm
Machine weight: 600 kg

Control Unit

Model: Emcotronic TM02
Brand: EMCO

Main drive

Number of spindles: 1
Spindle speed range: 150-6300 1/min
Spindle motor power: 4 kW
Spindle bore: 31 mm

Movement

X-AXIS Working Feed: 1-3000 mm/min
X-AXIS Feed Force: 2000 kN
X-AXIS Rapid traverse: 3000 mm/min
Z-AXIS Working Feed: 1-3000 mm/min
Z-AXIS Feed Force: 1500 kN
Z-AXIS Rapid traverse: 3000 mm/min

Workpiece

Workpiece drm over bed: 180 mm
Workpiece drm over support: 75 mm
Workpiece drm: 88 mm

Turret

Number of tool slots: 8
Tool taper: 16 mm

Tail Stock

Pinol diameter: 35 mm
Pinol force: 2500 N
Pinol way: 120 mm

Tools

Max tool diameter: 22 mm
Max tool length: 140 mm

Media

Main electronic connection: 380/220 V / 50 Hz
Power consumption: 5 kVA
Air pressure: 6 bar
Lubrication tank: 85 L
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
