EMCO - Maxxmill 500UDE-MIL-EMC-2011-00001

Name: EMCO Maxxmill 500U
Brand: EMCO
SKU: DE-MIL-EMC-2011-00001
Price: 49000 GBP
Availability: InStock

£ 49,000

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO Maxxmill 500U For sale | gindumac.com

Show in original language

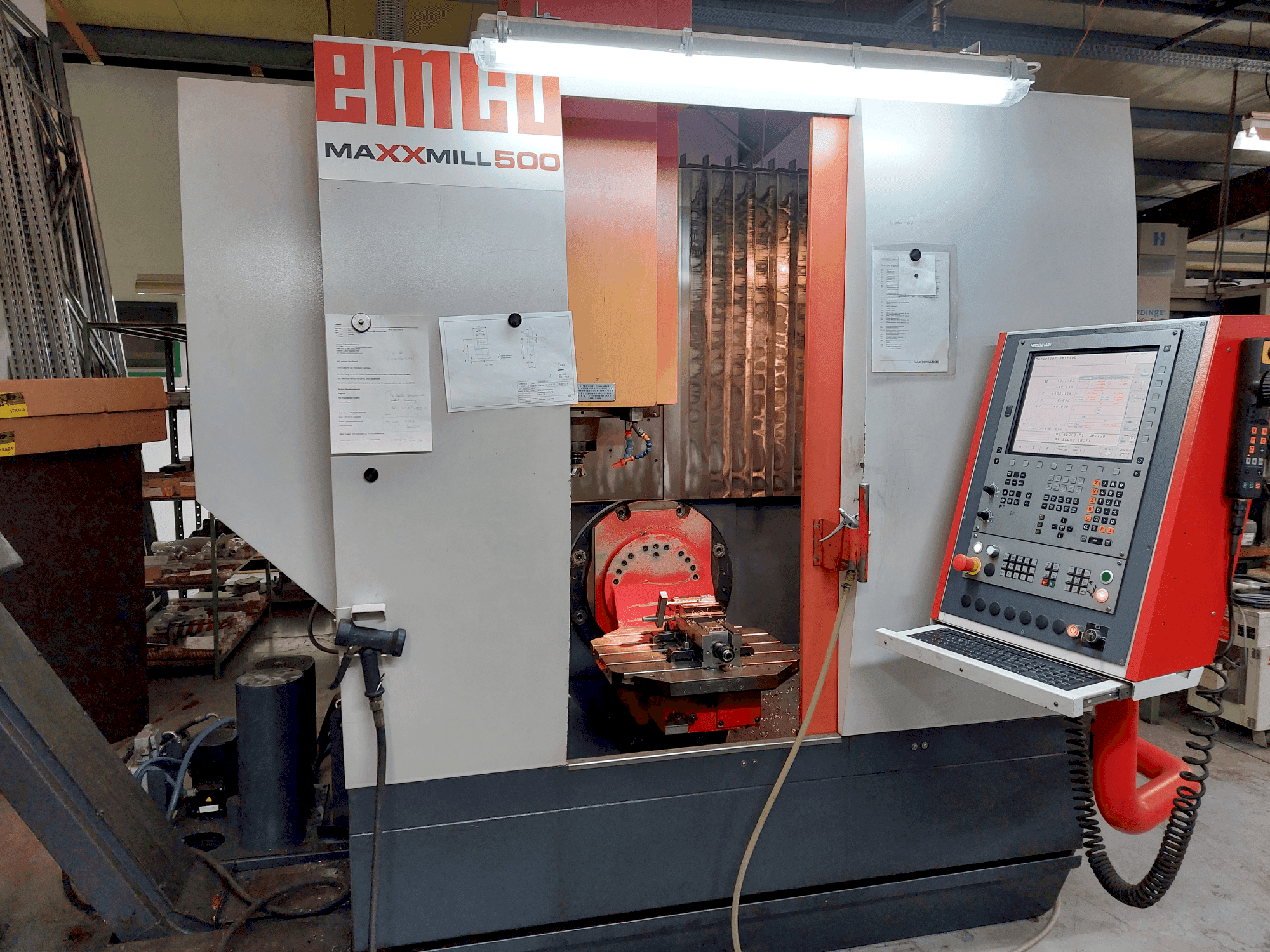

This 5-axis EMCO Maxxmill 500U vertical machining centre was manufactured in 2011. It features a robust 30-position tool changer, a powerful 15 kW spindle, and a maximum spindle speed of 10,000 rpm. The machine offers a working range of 650 mm (X), 550 mm (Y), and 500 mm (Z), with rapid traverse speeds up to 30 m/min. Ideal for complex and precise machining tasks. Reach out for further details regarding this vertical machining centre.

Overview

brand: EMCO
year: 2011
MODEL: Maxxmill 500U
production hours: 8500
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - EMCO Maxxmill 500U

General Data

Measurements width: 3000 mm
Measurements depth: 2880 mm
Measurements height: 3000 mm
Machine weight: 9200 kg

Main drive

Number of spindles: 1
Spindle speed range: 10000 rpm 1/MIN
Spindle motor power: 15 kW
Number of axis: 5

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 600 mm
Outer width: 600 mm
TSlots size: 14 mm
Number of tslots: 5
Distance between: 100 mm
Table load: 250 kg

Tools

Number of index: 30 tool positions (SK40)
Max weight: 8 kg
Max tool diameter: ø80 mm
Max tool length: 250 mm

Media

Internal cooling: Yes

Additional Equipment

- Tank Capacity: 250 l
- Flow Rate at 2 bar: 40 l/min
- Pneumatics: Supply Pressure: 6 bar
- Pneumatics: Supply Volume: 200 l/min
- Lubrication System: Main Spindle: Grease lubrication
- Lubrication System: Guideways and Feed Spindles: Oil central lubrication

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swivel range b-axis: ± 100°
- - Swivel range c-axis: n × 360°
- - Centering hole on the table top: 30 h6 mm
- - Max. Tool diameter with empty position: ø125 mm
- - Max. Loading weight of the tool magazine: 100 kg
- - 5-axis machining for complex operations
- - Efficient tool changer with random management
- - Max. Torque: 100 nm
- - Tool clamping force: 8000 n
- - Force for unclamping the tool (at 6 bar): 13500 n
Qualitative Machine Benefits:
- - Direct drive spindle for high precision
- - Accurate positioning and rapid traverse speed
- - Spindle hours 6903

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
