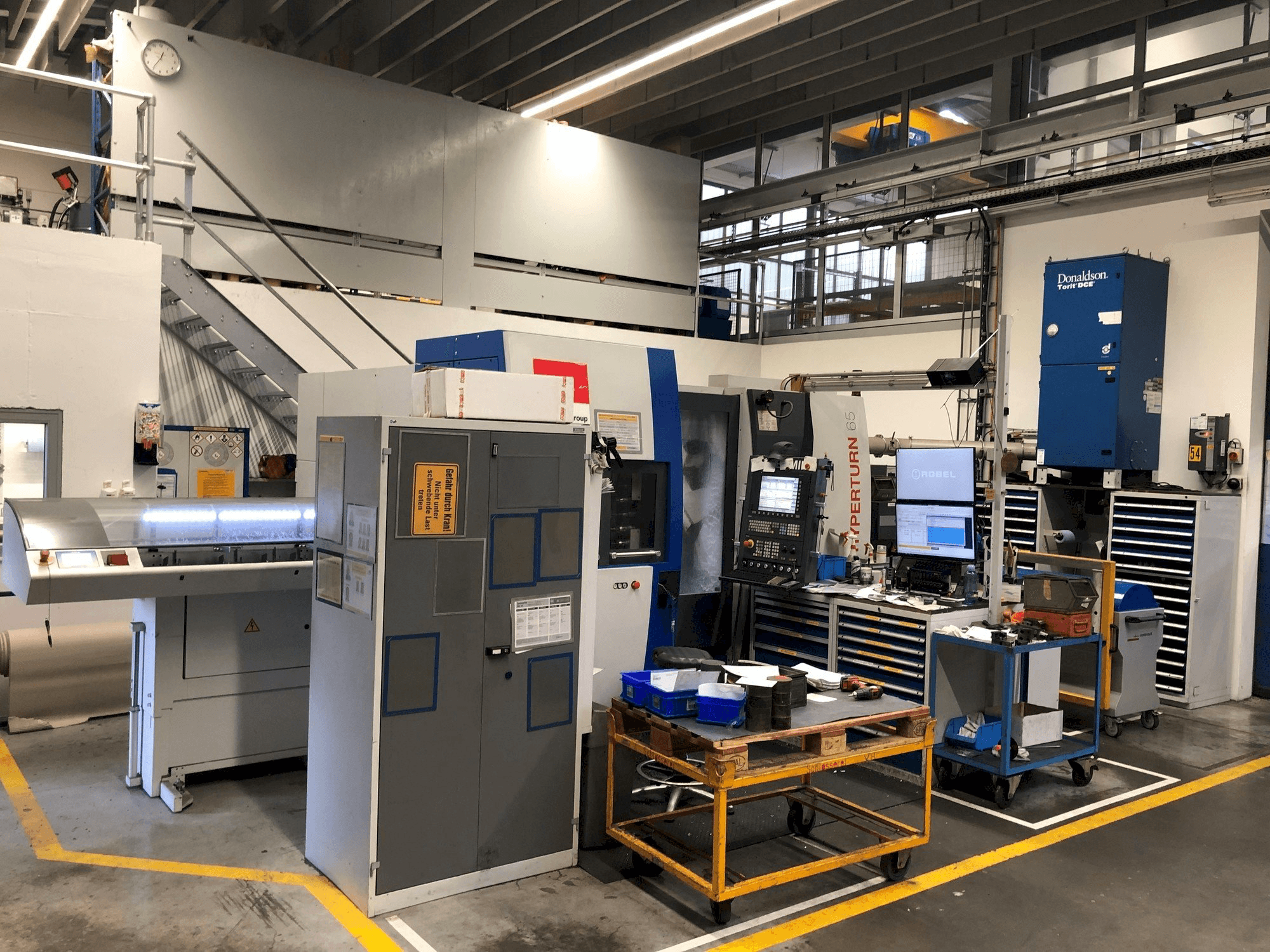

EMCO - HYPERTURN 65 PMDE-TUR-EMC-2019-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Milling spindle and turret incl.
  • - Max. Bar capacity Ø 65mm
  • - Main spindle: kk6
  • - Socket at control panel
  • - B-axis with +/- 110° swivel range
  • - Y-axis with +120 / -100 mm traverse path
  • - Rod passage: Ø 76. 2mm
  • - Draw tube connection: m85 x 2
  • - Spindle connection (din 55026): a2-8
  • - Max. Chuck size: Ø 250mm
• Qualitative Machine Benefits:
  • - Max. Torque: 250nm
  • - Irco bar feeder: rods up to 1200 mm length
  • - Milling spindle and turret incl. Milling drive
  • - Siemens main spindle: kk6 (max. Bar capacity Ø 65mm) 230 v socket on control panel
  • - B-axis with +/- 110° swivel range
  • - Y-axis with +120 / -100 mm travel range
  • - C-axis for main and counter spindle coolant device integrated in chip conveyor
  • - Bar passage 3 inch (Ø 76. 2mm) instead of Ø 65mm (main spindle), max. Speed: 4000 rpm max. Torque: 250nm max. Power: 29kw max. Chuck size: Ø 250mm
  • - Vdi 40 for ht65-pm tool system vdi 40 replaces vdi 30 for ht65-pm/mt65 1000 with driven tools on the turret! Max. Speed: 4500 rpm max. Torque: 25 nm max. Power: 6. 7 kw drive coupling: din5480
  • - 80-fold chain hsk-t63 an 80-fold chain magazine replaces the 20-fold disk magazine from the basic machine
