- EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center

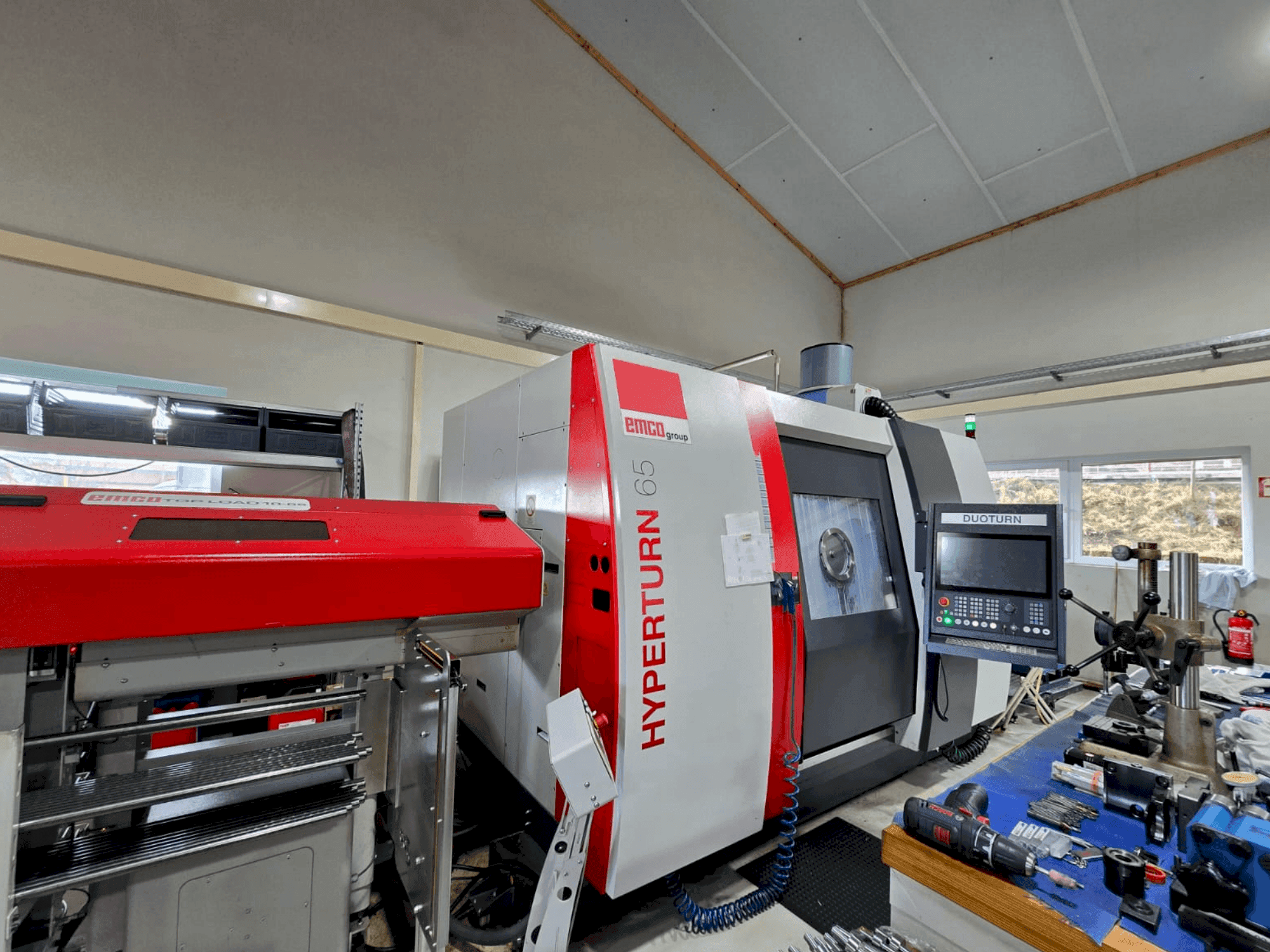

This EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center was built in the year 2018 in Austria. It is equipped with a SIEMENS Sinumerik 840D SL Control and 2 turrets including milling drive and 2 Y-axes. This highly productive CNC turning/milling center is perfect for the complete machining of turned and milled parts with 1300 m spindle distance. It has integrated spindle motors (ISM) on the main and counter spindles with a spindle speed range from 0 - 5000 min-1. This complete center features 2x 12-fold tool turret radial with directional logic for up to 2x 12 driven tool stations (swivel speed adjustable with feed switch). It comes with several extras from MT65/HT65 BigBore77 to BMT turret (top right) with direct drive for HT65DT/HT65TT/MT65 (the VDI30 standard turret is replaced by a BMT turret with BMT55P precision interface). See original PDF (German) with all positions attached. Check out photo and video gallery for more details.
Overview
- brand: EMCO
- year: 2018
- MODEL: HYPERTURN 65-1300 DUOTURN
- production hours: 15000
- application type: Turning
- Location: Germany
- machine type: Lathe
- availability: Immediately
- control unit brand: SIEMENS
Technical Information - EMCO HYPERTURN 65-1300 DUOTURN
Control Unit
- Brand: SIEMENS
- Model: SINUMERIK 840D SL
Main drive
- Number of spindles: 2
- Spindle speed range: 0 - 5000 min-1 1/MIN
- Spindle motor power: 29 kW
- Spindle bore: 76 mm
- Tool taper: BMT 55
Turret
- Number of tool slots: 2 x 12
- Rotating tools: Yes
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Equipment
- - Top Automazioni bar loader (Model: ETL10-75, YOM 2018) - weight 2500 kg
- - 600l external cooling water tank with belt filter from Bürener
- - Parts ejector and flushing through the counter spindle
- - Chip conveyor with an ejection height of 1200mm (programmable)
- - Coolant device integrated in the chip conveyor
- - 2 pcs. High pressure pumps with 14 bar // 2 pcs. flushing pumps with 3.7 bar
- - Electronic handwheel 840D
- - COMPRESSED AIR SYSTEM FOR GLASS SCALES
- - EMCO TOP LOAD 15-75/3200 MULTI-LEVEL
- - PART CATCHER WITH FINISHED PART DUST BELT // BELT FILTER SYSTEM
Additional Information
- Technical Machine Benefits:
- - Duoturn with 2 turrets incl. Milling drive and 2 y-axes
- - Drive power: main spindle - 29 kw
- - Counter spindle - 29 kw
- - Bmt 55 turret two pieces with one y-axis each
- - Main spindle big bore with 76mm
- - Water-cooled turret drive with 12,000 revolutions
- - 2x 12-fold tool turret vdi 30 radial with directional logic for up to 2x 12 driven tool stations
- - Swivel speed adjustable with feed switch
- Qualitative Machine Benefits:
- - Highly productive cnc turning/milling center for the complete machining of turned and milled parts with 1300 m spindle distance
- - Integrated spindle motors (ism) on the main and counter spindles
- - Main and counter spindles (liquid-cooled) cooled)
- - Preloaded roller guides
- - Tools are not included in the price
- - Optional tools available for sale
- - 15,000 spindle hours // 20,000 switch-on hours
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
