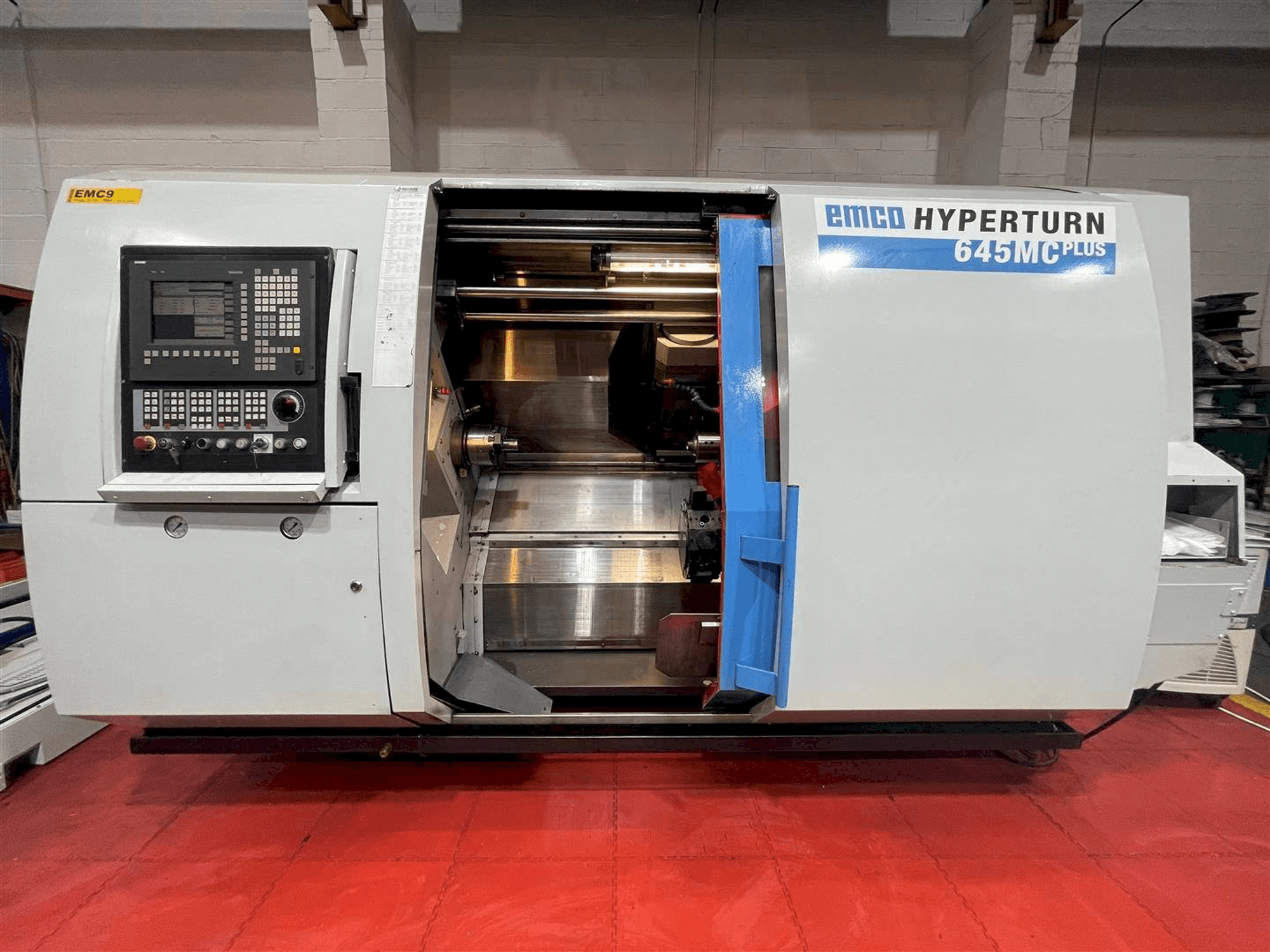

EMCO Hyperturn 645MC Plus Lathe machine

Show in original language

This EMCO Hyperturn 645MC Plus Lathe machine was made in 2009 in Austria. It is equipped with a SIEMENS 840 D control unit. This machine works with a spindle speed range 0-7000 rpm and a spindle motor power of 17/22 kW. Very good condition

Overview

brand: EMCO
year: 2009
MODEL: Hyperturn 645MC Plus
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - EMCO Hyperturn 645MC Plus

General Data

Measurements width: 3400 mm
Measurements depth: 2550 mm
Measurements height: 2300 mm
Machine weight: 9500 kg

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 7000 1/MIN

Movement

X-AXIS Movement: X1/X2 280/205 mm
Y-AXIS Movement: +/- 50 mm
Z-AXIS Movement: Z1/Z2/Z3 900/750/750 mm
B-AXIS Movement: 210 DEGREES MM
C-AXIS Movement: 0.001 DEGREE MM

Turret

Number of turrets: 1

Tools

Slots in storage: 24
Type of tool holder: CAPTO C4

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 600 mm
- - Swing over cross-slide 500 mm
- - Maximum cutting length 744 mm, diameter 430 mm
- - Maximum cutting diameter 430 mm
- - Bar capacity 45 mm
- - Milling rpm 10. 000, power 14. 5 kw
- - Spindle motor power 17/22 kw
- - Sub spindle speed 7000rpm, sub spindle motor 17/22kw
- - Turret milling motor 6. 7kw, 12 stations
- - C axis & milling, internal spindle, coolant, y-axis, low volt light, 3 jaw chuck, b axis, swarf conveyor, sub spindle, lower turret
Qualitative Machine Benefits:
- - Very good condition
- - Machine manual

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
