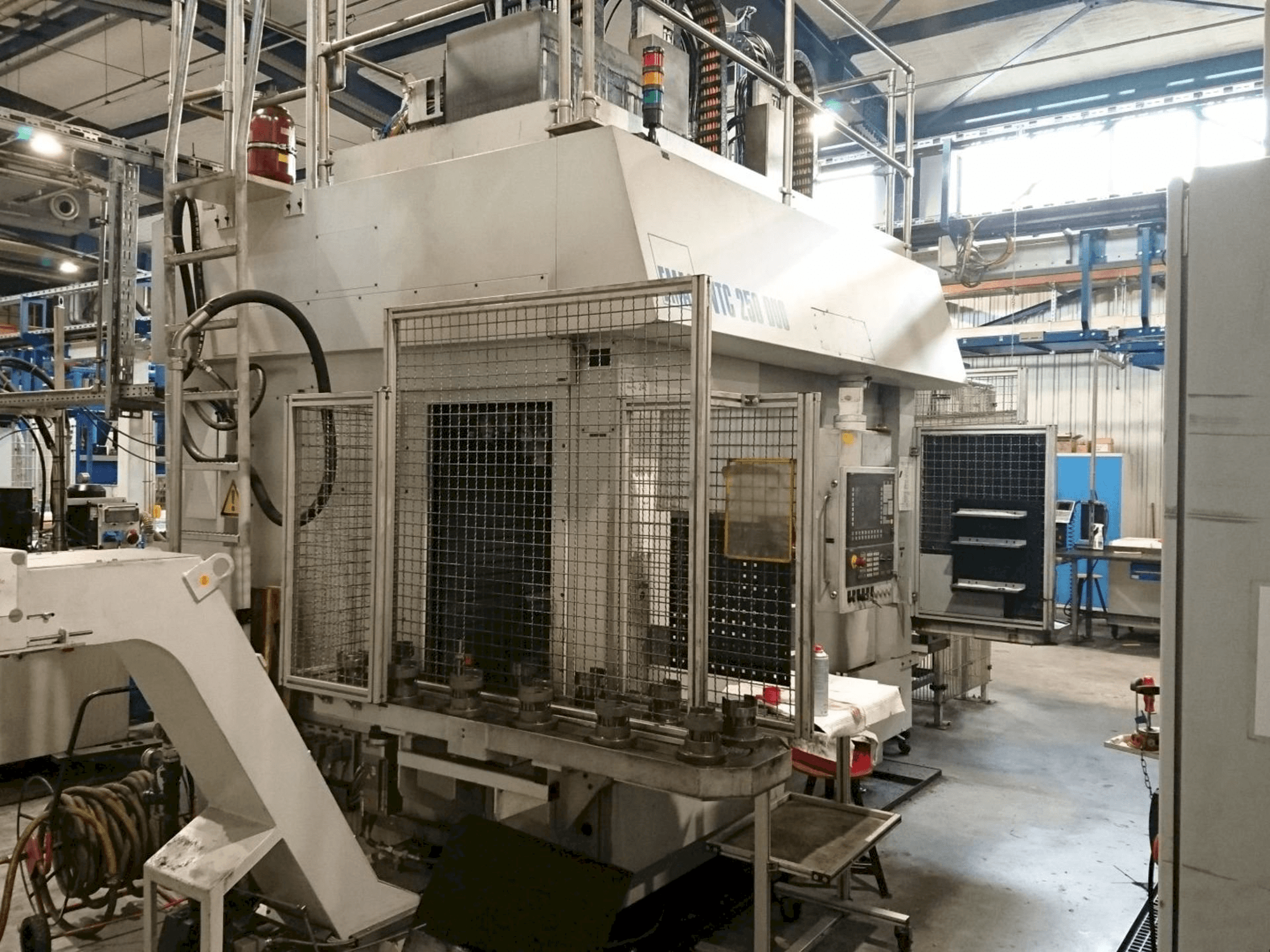

This EMAG VTC 250 DUO Lathe was built in 2010. It is equipped with a Siemens 840D control unit. This 3 axis machine can perform with a spindle speed up to 6000 rpm an a clamping force 2.4 kN.
Overview
- brand: EMAG
- year: 2010
- MODEL: VTC 250 DUO
- application type: Turning
- Location: Germany
- machine type: Vertical Turning Machine
- availability: Sold
- control unit brand: Siemens
Technical Information - EMAG VTC 250 DUO
General Data
- Machine weight: 21000 kg
Control Unit
- Brand: Siemens
- Model: 840D
Main drive
- Number of spindles: 1
- Spindle speed range: 6000 1/MIN
- Spindle motor power: 38 KW
- Number of axis: 3
Movement
- X-AXIS Movement: 300 MM
- X-AXIS Feed Force: 9 KN
- X-AXIS Rapid traverse: 30 M/MIN
- Y-AXIS Movement: +- 25 mm
- Z-AXIS Movement: 740 MM
- Z-AXIS Feed Force: 10 KN
- Z-AXIS Rapid traverse: 40 M/MIN
Workpiece
- Workpiece weight: 20 KG
Tools
- Type of tool holder: HSK63
Clamping unit
- Clamping force: 2.4 KN
Media
- Main electronic connection: 400 V 50 HZ
- Power consumption: 70 KW
- Internal cooling: Yes
Additional Information
- Technical Machine Benefits:
- - Torque: 15 nm/3,5 kw
- - Disc turret with 11 driven tools and 1 workpiece gripper (vdi 40)
- - Tool holders cdi 68 with capto c4
- - Clamping Ø: 90mm
- - Chuck diameter: max. 250 mm
- - Workpiece Ø: max. 140 mm
- - Workpiece length: max. 630 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
