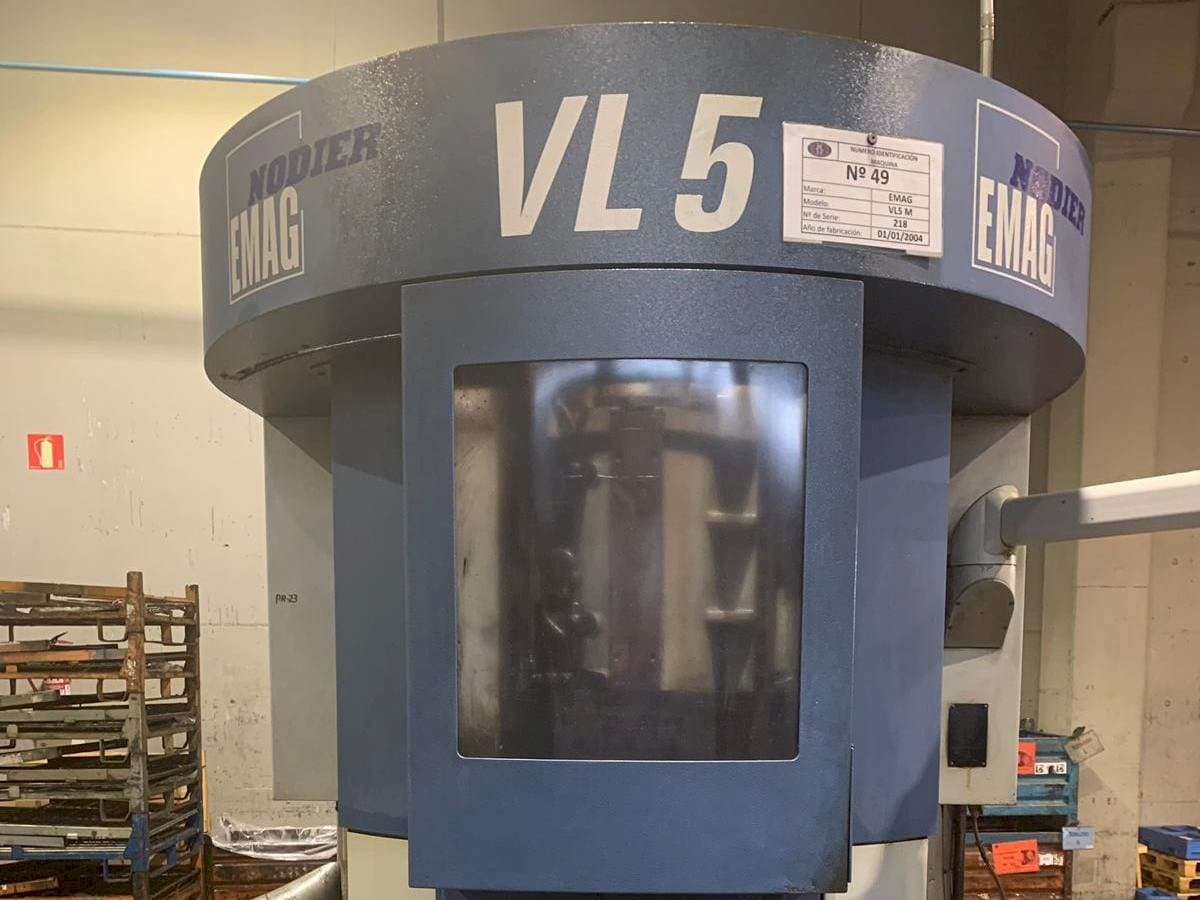

EMAG VL 5 Vertical Lathe

Show in original language

This EMAG VL 5 Vertical Lathe was produced in 2004. Operated through a FANUC Series 18i-TB Control unit, this machine stands out for incorporating a motorized turret VDI 40.

Overview

brand: EMAG
year: 2004
MODEL: VL 5
application type: Turning
Location: Spain
machine type: Vertical Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - EMAG VL 5

General Data

Measurements width: 2700 mm
Measurements depth: 2050 mm
Measurements height: 2400 mm
Machine weight: 7000 kg

Control Unit

Model: Series 18i-TB
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 rpm 1/MIN
Spindle motor power: 28/18 kVA
Spindle bore: 110 mm

Movement

X-AXIS Movement: 570 mm
X-AXIS Feed Force: 5 kN
X-AXIS Rapid traverse: 60 m/min
Y-AXIS Feed Force: 5 kN
Z-AXIS Movement: 200 mm
Z-AXIS Feed Force: 5 kN
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 42 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Motorized turret vdi 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
