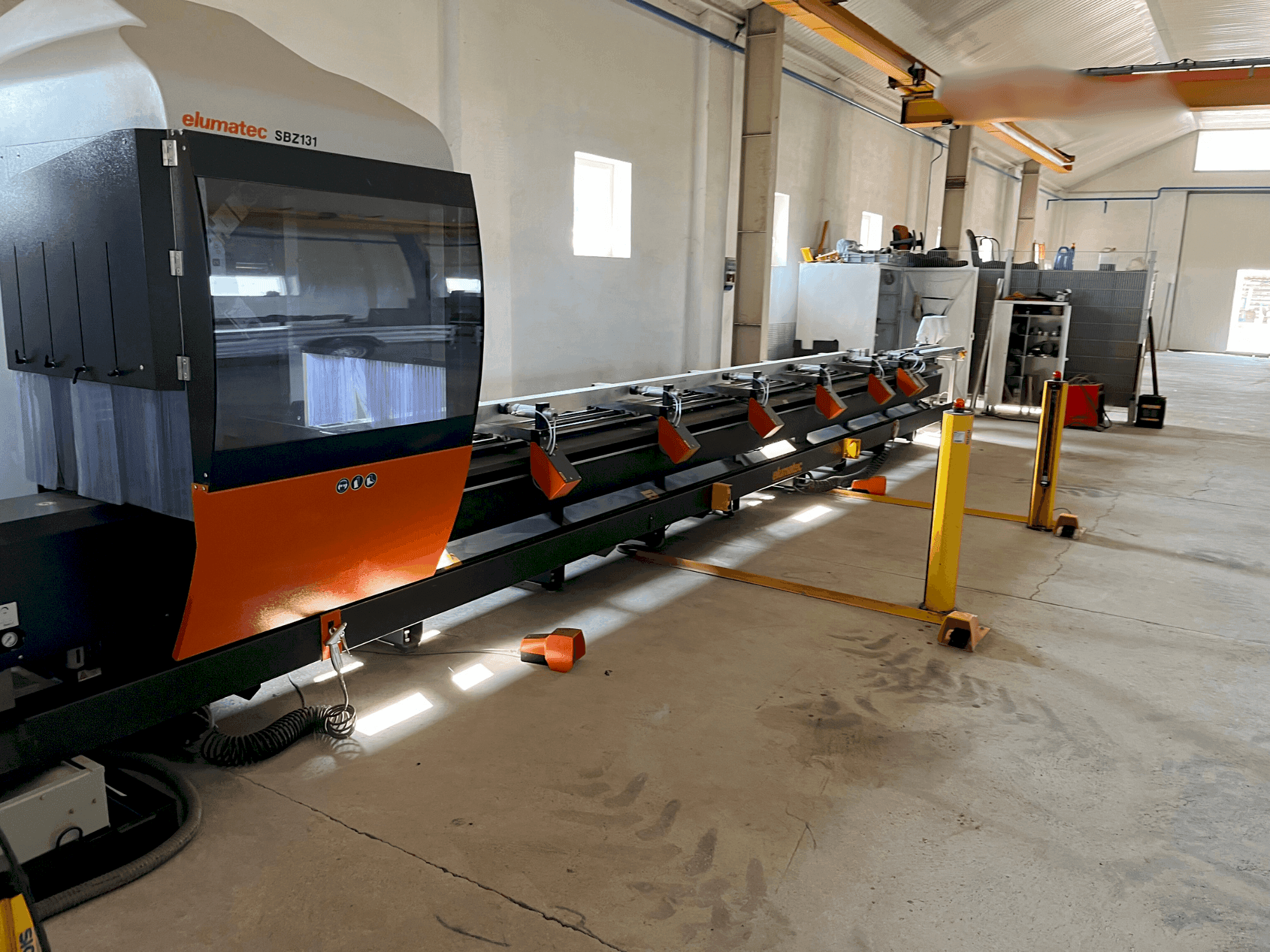

Elumatec - SBZ 131HU-SAW-ELU-2019-00001

Additional Equipment

• - 2 carbide saw blades for aluminum and plastic Diameter: 420 mm, number of teeth: 96
• - Saw blade cooling equipment
• - Small stop for the stationary head
• - Profile lifting bars for the stationary and moving head
• - Work piece support that can be moved on the machine bed
• - Two cutting and oversize cutting software solution
• - Software connection to production preparation program
• - Pneumatic clamping unit, horizontal
• - Roller track mounted on a moving head 1.5 meters, 300 mm wide

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Dg 104 double miter saw 6. 0 m, with e580/1 electronics saw blade
  • - Cutting length: 6000
  • - Automatic length adjustment with positioning control
  • - Saw blade inclination 90 and 45° automatic pneumatic
  • - Positioning accuracy of +/-0. 1 mm/m
  • - Pneumatic fixation in the desired position
  • - Computer control windows operating system, 400 mhz - cpu, 128 mb ram, 1 gb flashdisk, 4 usb connection options, 3 rs 232 port connections, network connection rj45, 10/100 mbit, 8. 4" monitor foil keyboard and handwheel for moving around the operating system
  • - Possibility to connect to an external keyboard and mouse
  • - Air connection: 7 bar
  • - Air consumption per work cycle:saw without cooling: 40 l saw with cooling: 64 l
• Qualitative Machine Benefits:
  • - All adjustment options are cut to the outside size, eliminating the need for lengthy size calculations, which is a big advantage for special angles
  • - Due to the larger saw blade diameter, it is also suitable for cutting wider profiles
  • - Saw blades moving from the bottom up due to the optimal clamping and cutting force
  • - Automatically closing protective covers
  • - Electrical connection: 230/400 v, 3 phases, 50 hz
  • - Saw speed: 2,800 1/min

Extra information

• - Machine still under power
