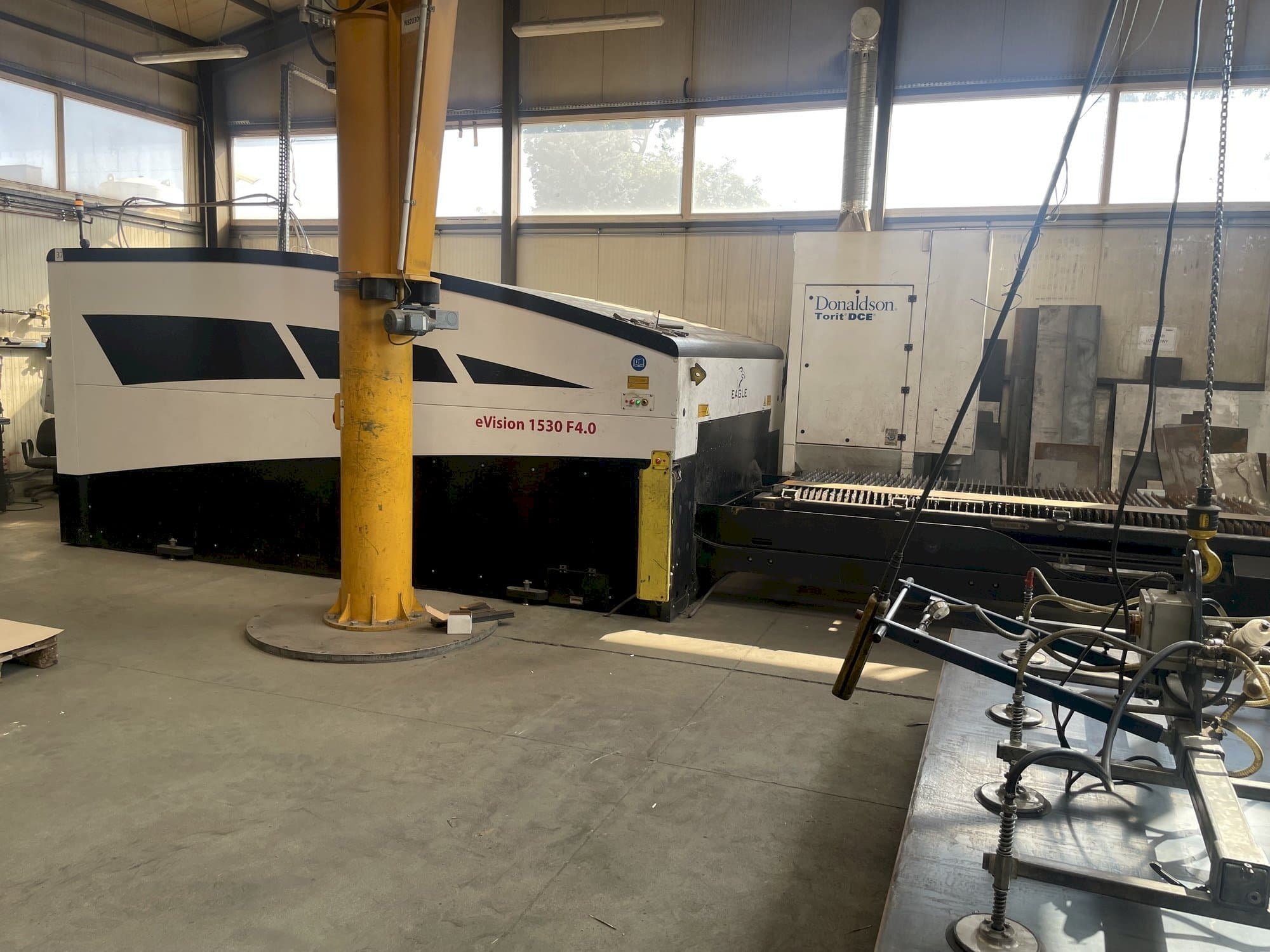

This EAGLE eVision 1530 F4.0 Fiber Laser Cutting Machine was manufactured in Poland in 2016. This laser cutter has a power output of 4 kW (4000 W) and is designed for cutting steel up to a thickness of 20 mm, stainless steel up to 20 mm, aluminum up to 15 mm, and copper up to 6 mm. The machine's working area along the X, Y, and Z axes is 3000 x 1500 x 120 mm, respectively. The laser cutter is equipped with CNC (Computer Numerical Control) and magnetic linear drive motors from Beckhoff.
Overview
- brand: EAGLE
- year: 2016
- MODEL: eVision 1530 F4.0
- production hours: 18213
- application type: Cutting
- Location: Poland
- machine type: Fiber Laser Cutting Machine
- availability: Sold
- control unit brand: Beckhoff
Technical Information - EAGLE eVision 1530 F4.0
General Data
- Measurements width: 9800 mm
- Measurements depth: 3800 mm
- Measurements height: 2300 mm
- Machine weight: 18000 kg
Control Unit
- Brand: Beckhoff
Main drive
- Laserpower: 4 kw
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
- Z-AXIS Movement: 120 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 20 mm
- Aluminum: 15 mm
Media
- Main electronic connection: 400V/50 Hz
- Power consumption: 43 kVA
- Air pressure: 6 bar
Additional Information
- Technical Machine Benefits:
- - Maximum speed, simultaneously x, y: 300 m/min
- - Maximum cutting thickness, copper: 6 mm
- - Positioning accuracy: 0. 05 mm
- - Repeatability: 0. 03 mm
- - Cutting accuracy: 0. 1 mm
- - Acceleration for x and y axes: 2 g
- - Nitrogen pressure: 25 bar, oxygen pressure: 10 bar, drive: magnetic linear motors by beckhoff
- Qualitative Machine Benefits:
- - The machine has undergone replacement of:
- - Modules on 01. 2023
- - Cutting head on 01. 2023
- - Fiber optic on 01. 2023
- - Internal gas installation on 01. 2023
- - Full documentation available
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
