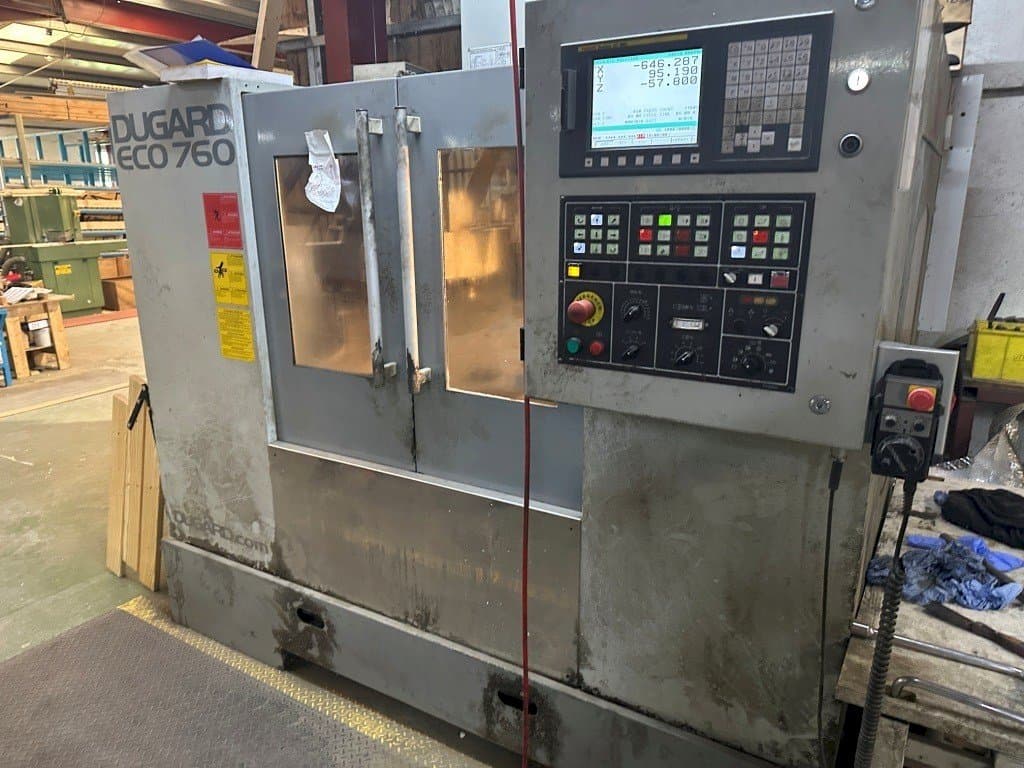

Dugard Eagle ECO 760 Vertical Machine Center

Show in original language

This Dugard Eagle ECO 760 Vertical Machine Center was built in the year 2011 in Taiwan. It is equipped with a Fanuc Series Oi-MD control unit and has 2 axis. The machine has a spindle speed of 8000 rpm.

Overview

brand: Dugard
year: 2011
MODEL: Eagle ECO 760
application type: Milling
Location: Ireland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Dugard Eagle ECO 760

General Data

Measurements width: 2100 mm
Measurements depth: 1935 mm
Measurements height: 2500 mm
Machine weight: 3650 kg

Control Unit

Model: Series Oi-MD
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 8000 1/MIN

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 430 mm
Z-AXIS Movement: 390 mm

Workpiece

Workpiece weight: 390 kg

Table

Outer length: 900 mm
Outer width: 410 mm

Tools

Slots in storage: 16
Max weight: 8 kg
Max tool diameter: 130 mm
Max tool length: 250 mm
Type of tool holder: BT40

Media

Main electronic connection: 400 V

Additional Equipment

- Machine Vice
- Tool Holders

Additional Information

Machine history

Material type: Plastic/steel
End product: Brackets
Industries: Domestic stairs

Machine Benefits

Qualitative Machine Benefits:
- - Very good technical condition
- - Only used for light work

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
