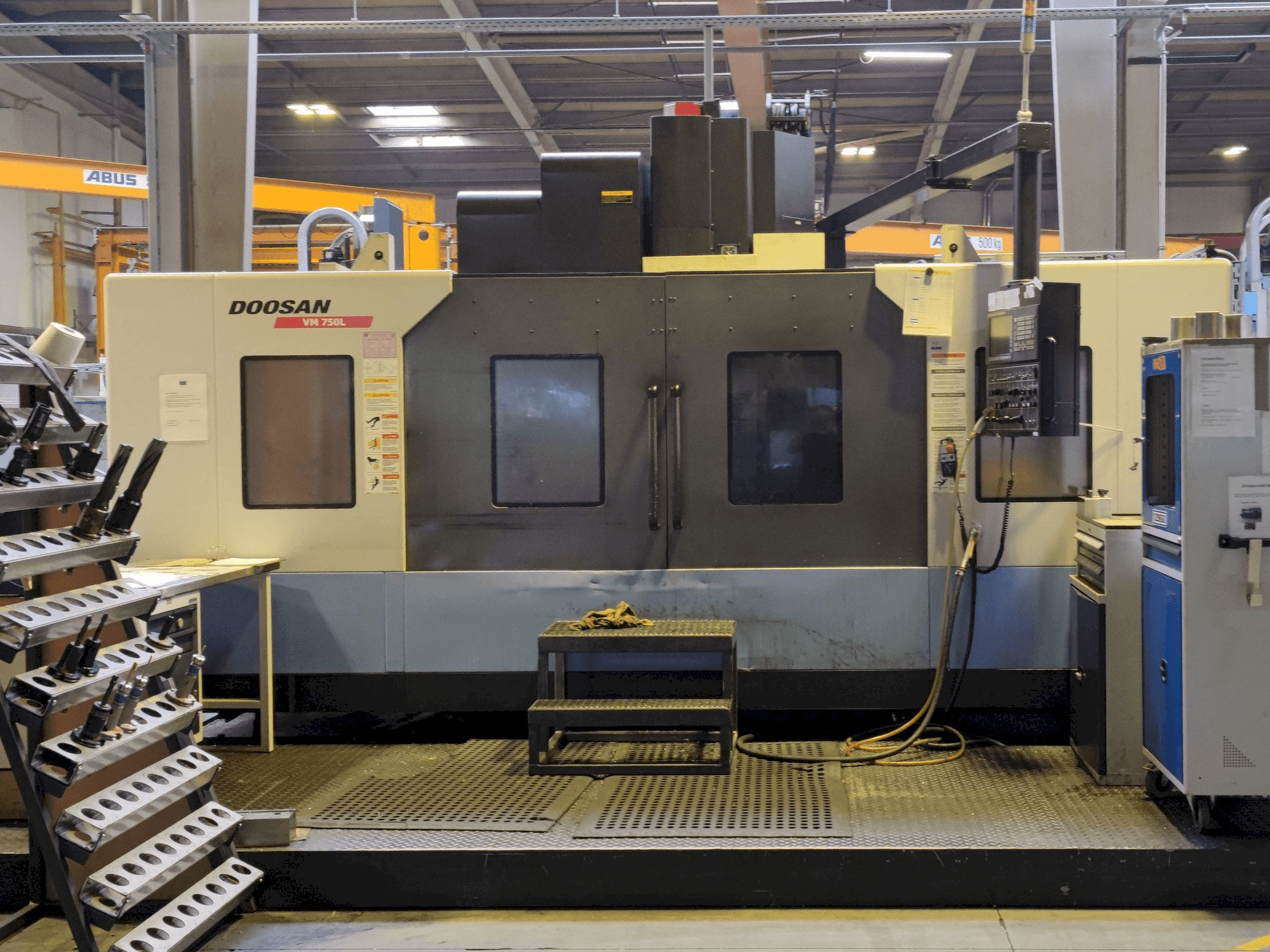

Doosan VM 750L Vertical Machining Center

Show in original language

This Doosan VM 750L Vertical Machining Center was manufactured in Korea in 2012. This 3-axis machine counts with a FANUC Series 31-iA control unit. It incorporates a spindle speed range of 30 - 6000 and a torque max of 562 nm. This machine includes its manual books.

Overview

brand: DOOSAN
year: 2012
MODEL: VM 750L
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VM 750L

General Data

Measurements width: 5190 mm
Measurements depth: 5075 mm
Measurements height: 3545 mm
Machine weight: 15100 kg

Control Unit

Model: 31-iA
Brand: FANUC

Main drive

Spindle speed range: 30 - 6000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 750 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 1900 mm
Outer width: 800 mm
Table load: 3500 kg

Tools

Max weight: 15 kg
Max tool diameter: 125 mm
Max tool length: 350 mm

Media

Pump drive power: 15 / 18,5 kW
Power consumption: 1,5 kW

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance table - spindle nose 200mm - 1000mm
- - Ball screw diameter x-axis 50mm x 12mm
- - Ball screw diameter y-,z-axis 50mm x 10mm
- - Feed motor x-,y-axis 7 kw
- - Feed motor z-axis with brake 7 kw
- - Rapid traverse x, y, z axis 20 / 20 / 20 m/min
- - Feed x, y, z axis 1 - 10000 mm/min
- - Guided tours: hardened and ground flat guides in all axes
- - Torque max. 562 nm
- - Spindle cone a 50
Qualitative Machine Benefits:
- - Number of magazine spaces 30 stk
- - Max. Tool diameter with free secondary stations 230 mm
- - Container capacity 480 l
- - Delivery rate 30 l/m
- - Delivery pressure 20 bar
- - Compressed air connection 6 bar
- - Connected load 60 kva
- - Voltage (+/-10%) 3 x 400 v
- - Frequency 50 hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
