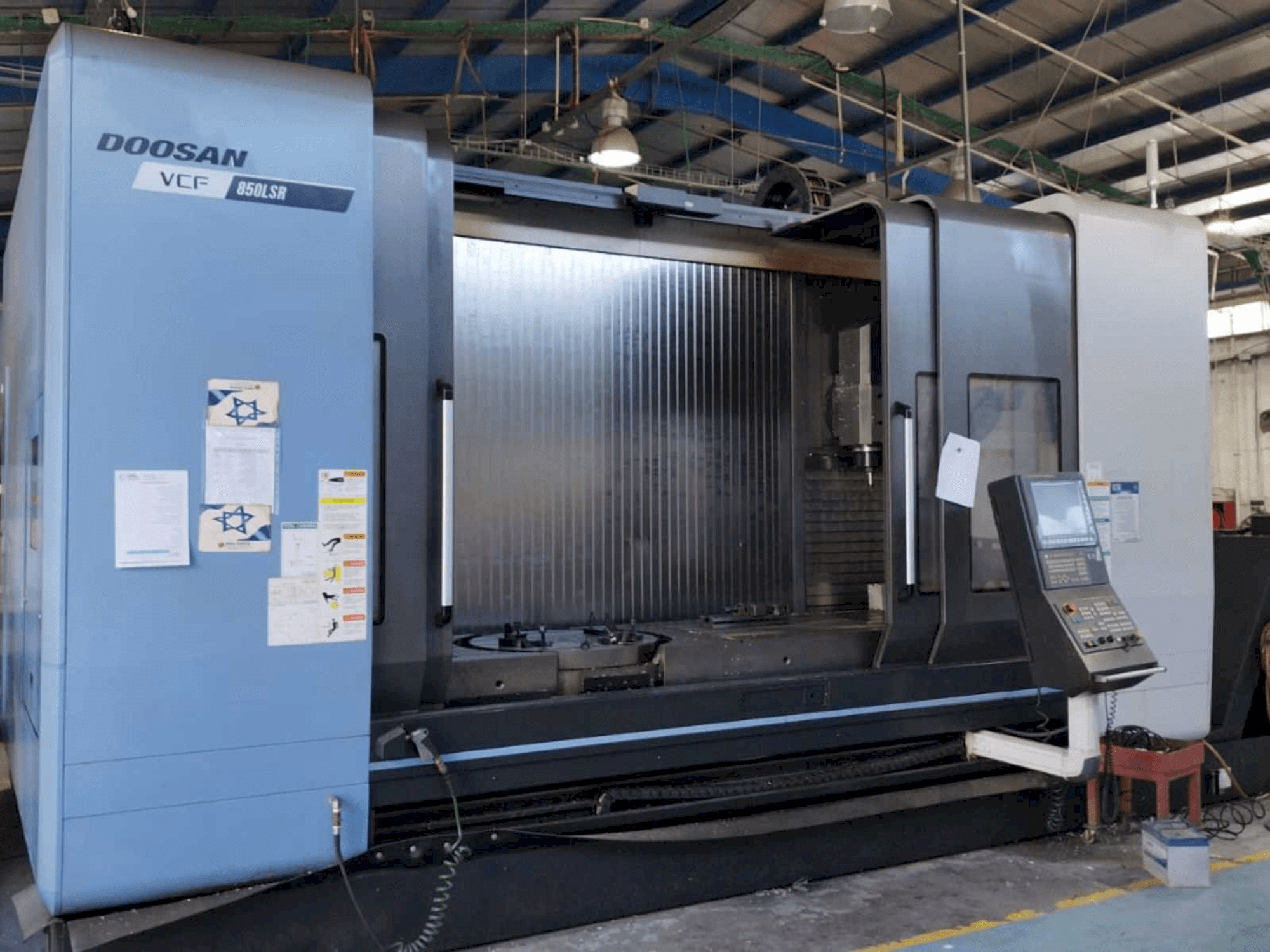

Doosan VCF 850LSR Vertical Machine Center.

Show in original language

This Doosan VCF 850LSR Vertical Machine Center was manufactured in the year 2017 in Korea. It is equipped with a FANUC F31i-5AX control unit and has 5 axis. The machine has a spindle speed of 12000 rpm and a max. tool diameter of 80 mm.

Overview

brand: DOOSAN
year: 2017
MODEL: VCF 850LSR
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN VCF 850LSR

General Data

Measurements width: 3795 mm
Measurements depth: 5440 mm
Measurements height: 3205 mm
Machine weight: 24000 KG

Control Unit

Model: F31i-5AX
Brand: FANUC

Main drive

Spindle motor power: 18.5/22 kw
Spindle bore: 12000
Tool taper: BT40
Number of axis: 5

Movement

X-AXIS Movement: 3000 mm
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 850 mm
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 800 mm
Z-AXIS Rapid traverse: 40 m/min

Workpiece

Workpiece weight: 3500 kg

Table

Outer length: 3500 mm
Outer width: 870 mm

Tools

Max weight: 8 kg
Max tool diameter: 80 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table surface mm t-slot (5-150 x 18h8)
- - Max. Workpiece height mm 900
- - Spindle to table surface mm 100-900
- - Max. Torque (25% ed) nm 204
- - Power transmission - built-in drive
- - Taper type iso #40, 7/24 taper
- - Max. Cutting feedrate 20,000 mm/min
- - Positioning mm ±0. 005/full stroke
- - Repeatability mm ±0. 002
- - Tool shank mas403 bt-40
Qualitative Machine Benefits:
- - Number of pockets: atc60

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
