DOOSAN - VC 430CZ-MIL-DOO-2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Doosan VC 430 Vertical Machining center

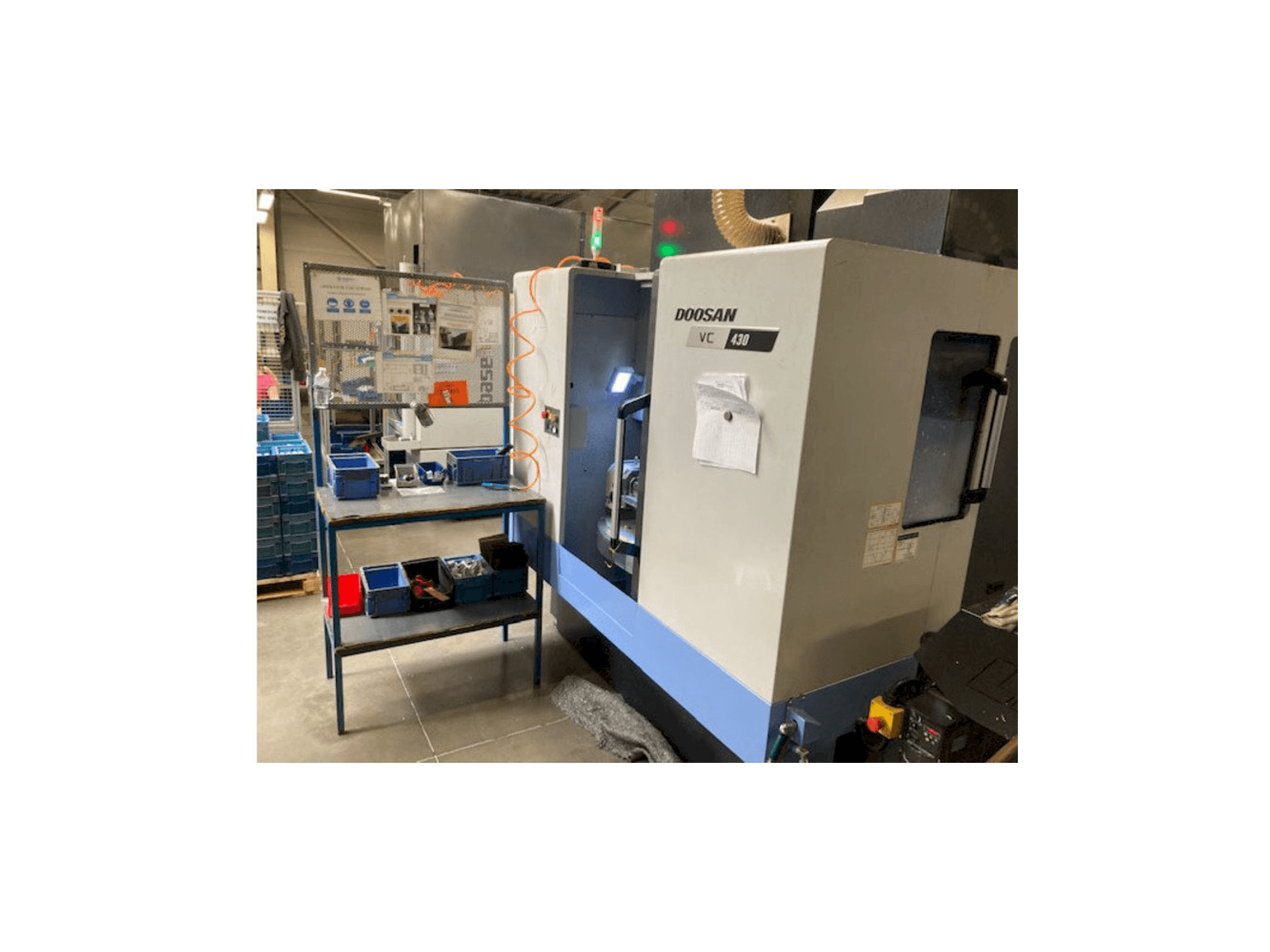

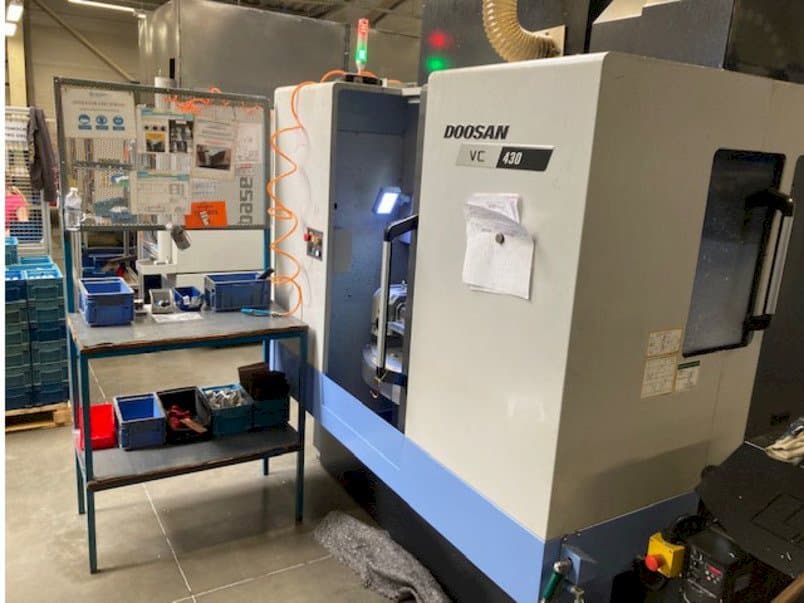

This Doosan VC 430 Vertical Machining center was manufactured in the year 2018 in Korea and has 4340 working hours, of which 980 are spindle hours. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 10000 rpm, is in very good condition and well maintained.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: VC 430
- production hours: 4340
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Fanuc
Technical Information - DOOSAN VC 430
General Data
- Machine weight: 7800 kg
Control Unit
- Brand: Fanuc
- Model: i-Series
Main drive
- Number of spindles: 1
- Spindle speed range: 10000 1/MIN
- Spindle motor power: 18.5/15 kW
- Number of axis: 4
Movement
- X-AXIS Movement: 560 mm
- Y-AXIS Movement: 430 mm
- Z-AXIS Movement: 570 mm
Workpiece
- Workpiece weight: 300 kg
Table
- Outer length: 712 mm
- Outer width: 490 mm
Tools
- Slots in storage: 30
- Max weight: 8 kg
- Max tool diameter: 80 mm
- Max tool length: 220 mm
- Type of tool holder: ISO 40
Additional Information
- Technical Machine Benefits:
- - 2 pallets
- - Incl. 4th axis
- - Through spindle coolant
- Qualitative Machine Benefits:
- - Very good condition, low hours!
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
