DOOSAN - SVM 4100DK-MIL-DOO-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DOOSAN SVM 4100 For Sale | gindumac.com

Show in original language

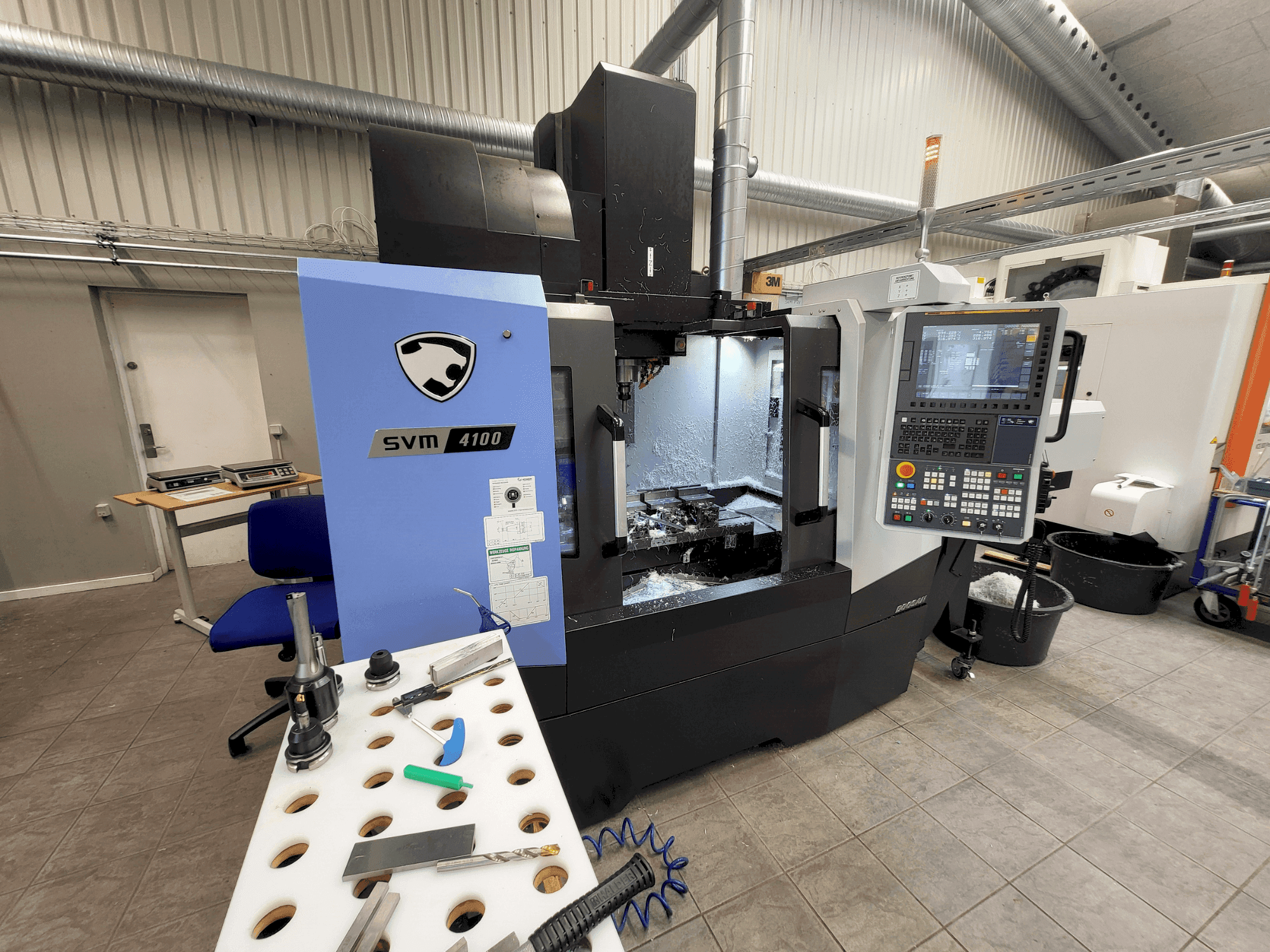

This 3-axis DOOSAN SVM 4100 vertical machining center was manufactured in 2021. Excellent condition, the machine was cutting only plastic and includes 4 x Geradi vises. It is powered by an 18.5/5.5 kW motor, and a rapid traverse rate of 36 m/min in all axes. The machine includes a 30-position automatic tool changer with a quick 1.2-second tool-to-tool change time. Ideal for high-efficiency machining with a worktable size of 920 x 410 mm and a maximum load capacity of 600 kg. Contact us for further details regarding this vertical machining center.

Overview

brand: DOOSAN
year: 2021
MODEL: SVM 4100
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DOOSAN SVM 4100

General Data

Measurements width: 2250 mm
Measurements depth: 2171 mm
Measurements height: 2661 mm
Machine weight: 3850 kg

Control Unit

Model: 15" iHMI Touch panel

Main drive

Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 18.5/5.5 kW
Tool taper: BT-40

Movement

X-AXIS Movement: 770 MM
Y-AXIS Movement: 410 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 920 mm
Outer width: 410 mm
TSlots size: 125 x 18H8
Number of tslots: 3

Media

Internal cooling: Yes

Additional Equipment

- Coolant System: Included
- Central Lubrication System: Included
- Enclosure: Full enclosure of work area
- Machine Lighting & Alarm Lamp: Included
- 4 x Geradi vises
- Leveling Plates and Bolts: Included

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cutting time 500h
- - Tool change time (tool-to-tool): 1. 2 seconds
- - Tool change time (chip-to-chip): 3. 2 seconds
- - Max x-/y-/z-axis rapid traverse: 36 m/min
- - Max feed rate: 18 m/min
- - Axis motor power (x/y/z): 1. 8 kw each
- - Max tool diameter: Ø76 mm (Ø125 mm in adjacent slots)
- - Max tool length: 300 mm / max tool weight: 6 kg / max load capacity: 600 kg
- - Spindle nose to table distance: 100 – 610 mm

Extra information

- COOLANT GUN THROUGH SPINDLE COOL 1.5 KW 2 MPA ADD AXIS PREPARATION BELT CHIP CONVEYOR DOOSAN TOOL LOAD MONITORING WORK PIECE MEASUREMENT M AND H TOOLSETTER DATA SERVER 1GB AIR BLOW AROUND SPINDLE EXTRA WORKING LIGHT

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
