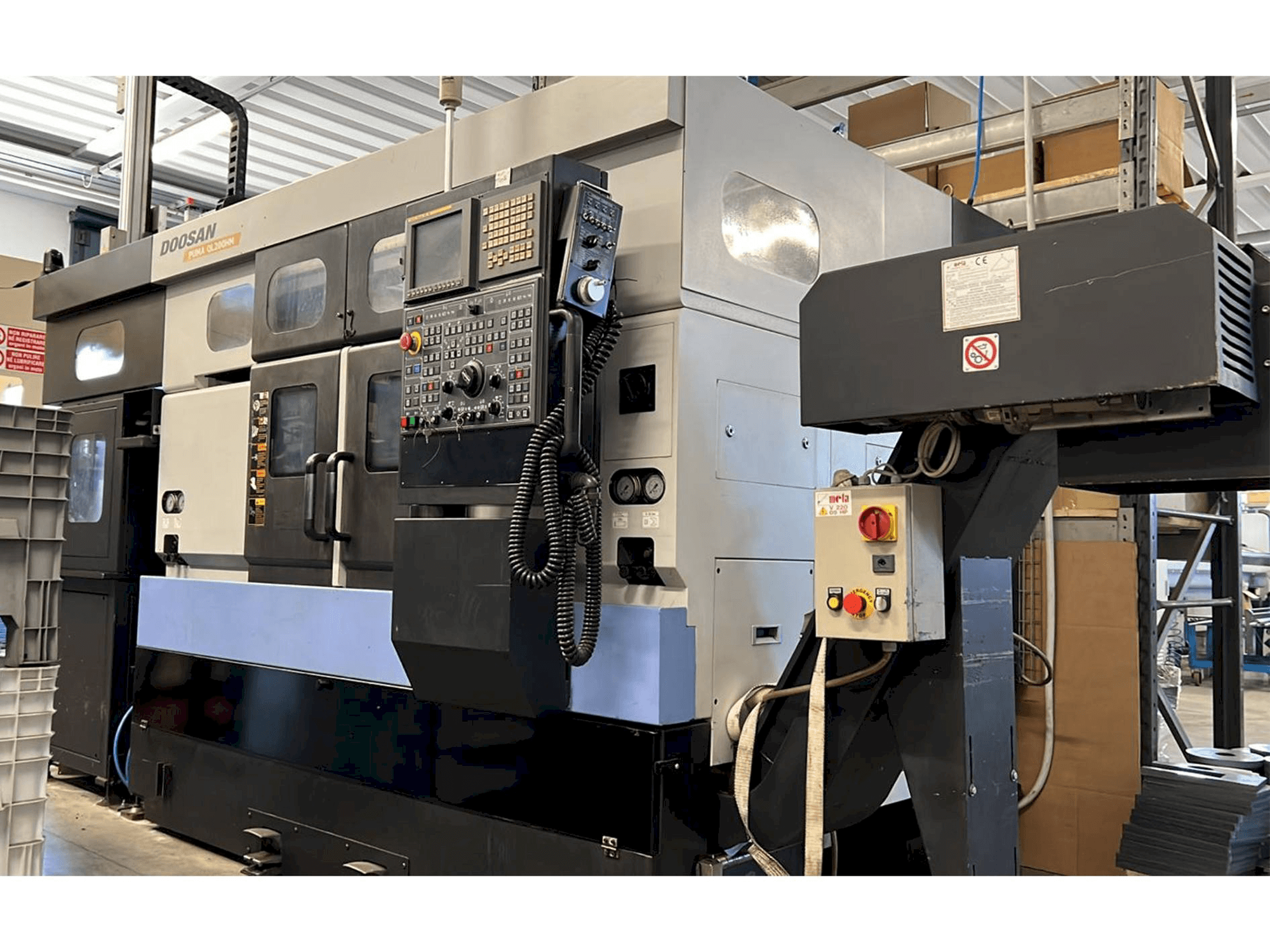

Doosan Puma QL 200HM Lathe machine

Show in original language

This Doosan QL 200HM Lathe machine was manufactured in Korea in the year 2008. This 5 axis machine operates through a Fanuc 18iTB control unit. It incorporates a spindle speed up to 4500 rpm and a spindle power of 11/15 kW.

Overview

brand: DOOSAN
year: 2008
MODEL: QL 200HM
application type: Turning
Location: Italy
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN QL 200HM

General Data

Measurements width: 1960 mm
Measurements depth: 3255 mm
Measurements height: 3187 mm
Machine weight: 5787 kg

Control Unit

Model: 18iTB
Brand: FANUC

Main drive

Spindle speed range: 4500 rpm 1/MIN
Spindle motor power: AC 11/15 KW
Tool taper: TAPER 1/20
Number of axis: 5

Movement

X-AXIS Movement: 180 mm
X-AXIS Rapid traverse: 400 mm/s
Y-AXIS Movement: 200 mm
Y-AXIS Rapid traverse: 400 mm/s

Turret

Number of tool slots: 12
Tool taper: VDI30

Media

Main electronic connection: 42 KVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance between centers: 460mm
- - Max turning diameter: 250mm
- - Recommended turning diameter: 210mm
- - Max turning length: 200mm
- - Spindle center height: 1160mm
- - Nose type: asa a2-6
- - Front bearing diameter: 100mm
- - Hole diameter: 62mm
- - Spindle speed override: %50-150
- - It comes also with a,b and c axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
