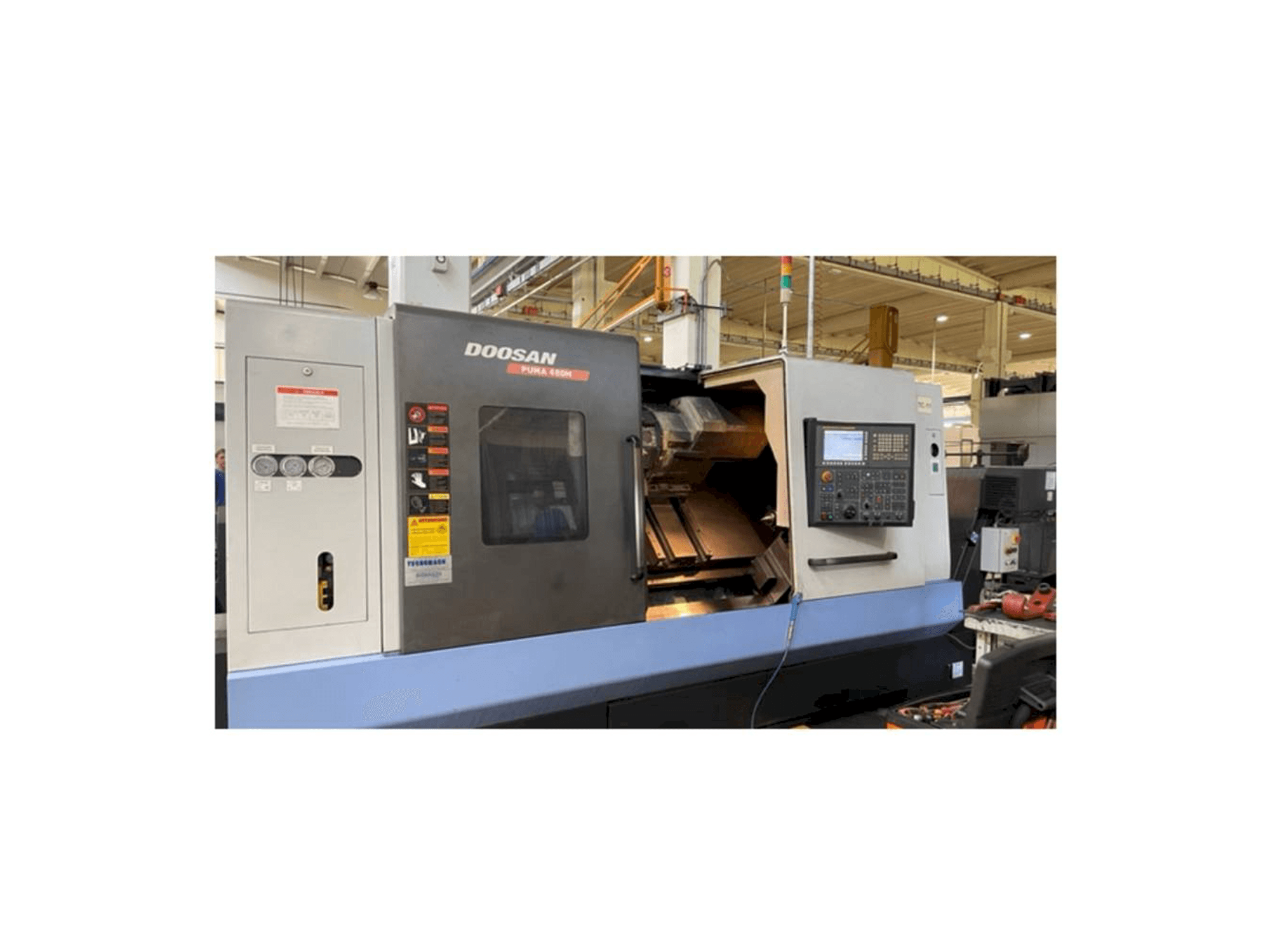

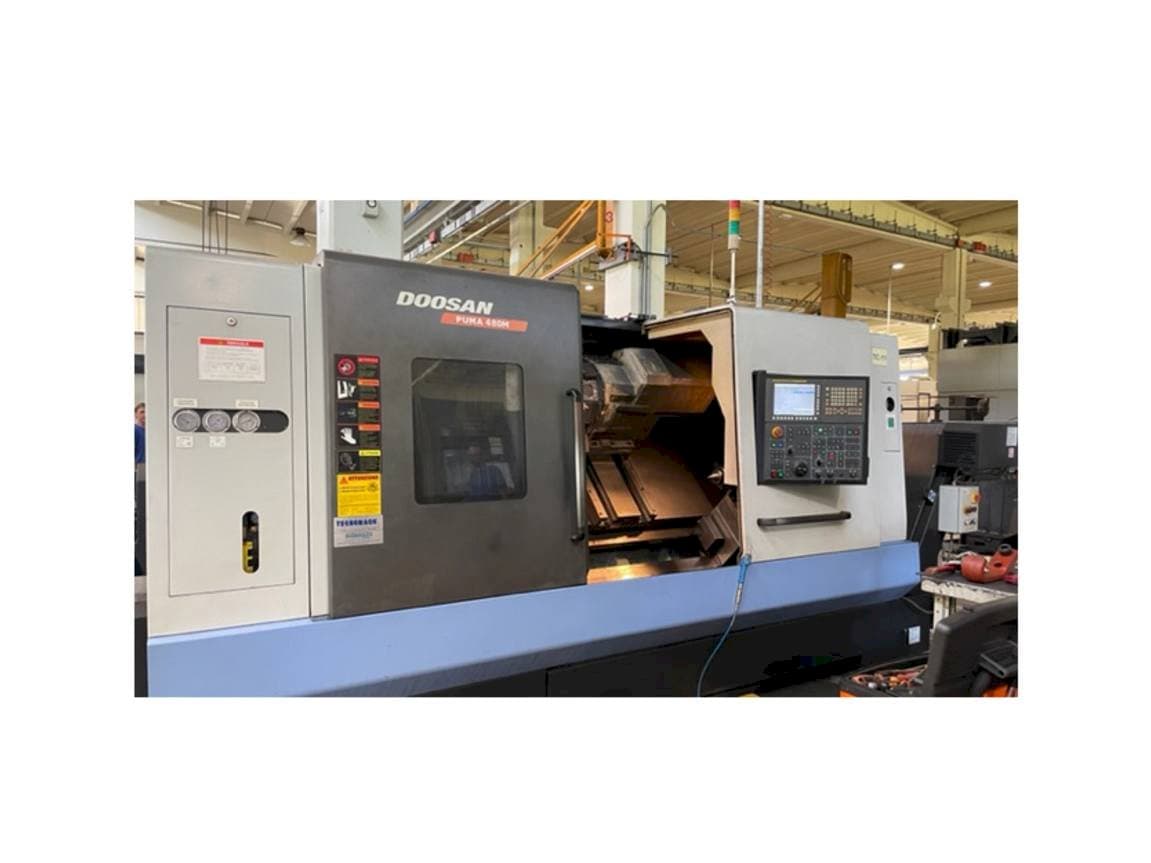

Doosan PUMA 480 MB Lathe machine

Show in original language

This Doosan 480 MB Lathe machine was manufactured in the year 2011. It is equipped with a FANUC Series 32i-Model A control unit and has 3 axis. The machine has a spindle speed of 15-1500 rpm and includes a chip conveyor, tool set, and set of motorized and static tool holders.

Overview

brand: DOOSAN
year: 2011
MODEL: PUMA 480 MB
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA 480 MB

General Data

Machine weight: 10100 kg

Control Unit

Brand: FANUC
Model: Series 32i-Model A

Main drive

Spindle speed range: 15 - 1500 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 362 mm
Y-AXIS Movement: 1105 mm
C-AXIS Movement: 360 ° positioning 0.001 ° MM

Turret

Number of turrets: 12

Additional Equipment

- chip conveyor
- tool setting
- Set of motorized and static tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Diam. Rotating on the bed 900 mm
- - Max. Diam. Rotating on the carriage 720 mm
- - Max. Diam. Bar turning 165 mm
- - Max. Diam. Turning 650 mm
- - Max. Turning length 951 mm
- - Spindle nose asa 15 "
- - Self-centering diam. 500 mm
- - Spindle motor power 45 kw (mechanical range change)
- - Motorized stations 12
- - Dimensions of turning / boring tools 25x25 - Ø 60 mm
Qualitative Machine Benefits:
- - Motor power of motorized tools 11 kw.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
