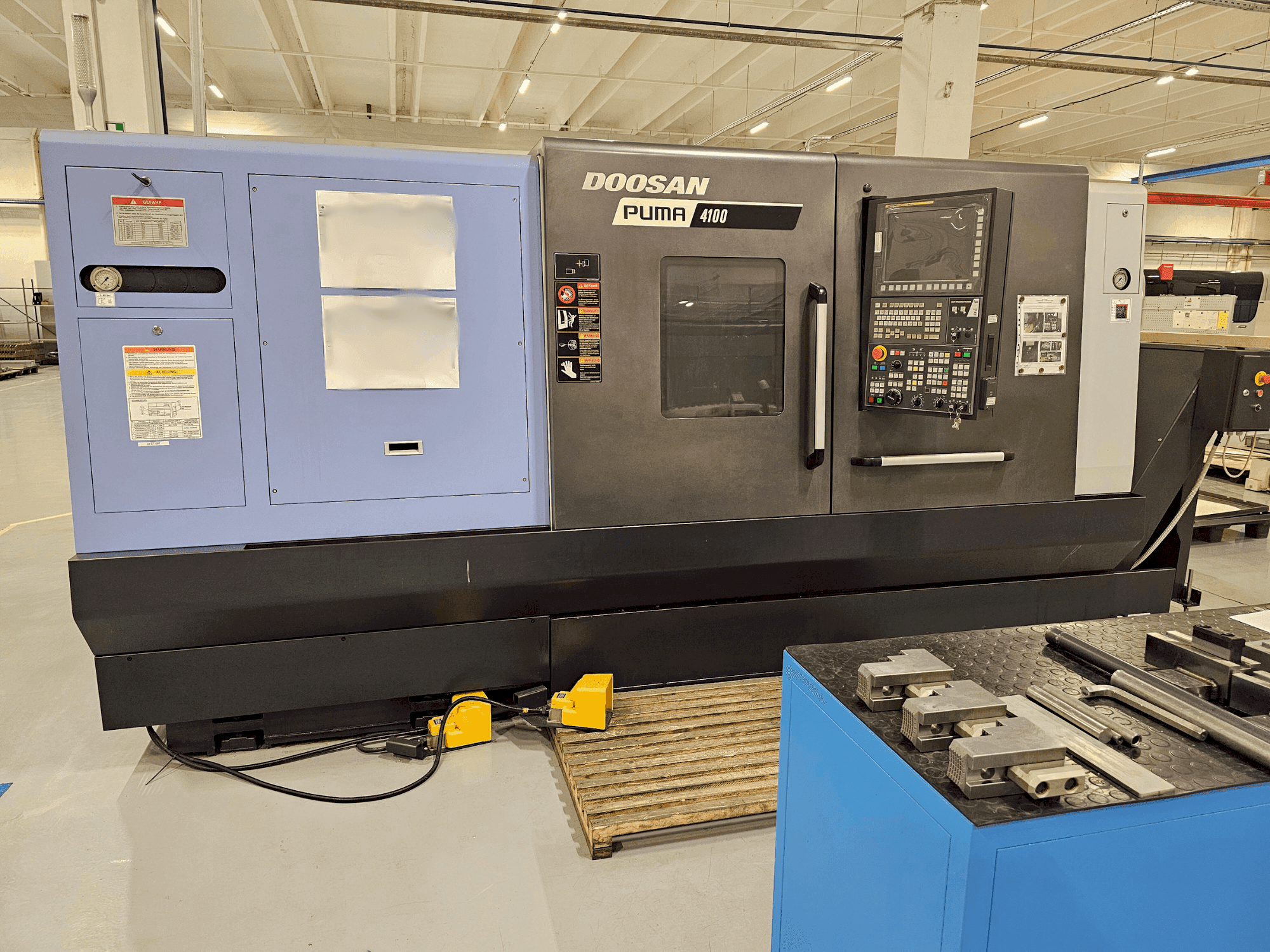

This DOOSAN Puma 4100B Horizontal Lathe was manufactured in 2018 in South Korea. It is equipped with a maximum workpiece diameter of 550 mm and a maximum workpiece length of 1042 mm. Controlled by a FANUC 0i Series control, it offers a spindle speed of 2000 rpm with a spindle power of 35 kW (30 min) / 22 kW (continuous). This machine accommodates 10 tools and features a A2-11 ASA taper size, providing versatility and precision in machining operations. It comes with chip conveyor, hydraulic, lubrication and cooling system. The machine has a run time of 796 hours, is still under power and can be inspected at any time.

Overview

brand: DOOSAN
year: 2018
MODEL: PUMA 4100B
production hours: 796
application type: Turning
Location: Bulgaria
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN PUMA 4100B

General Data

Measurements width: 4654 mm
Measurements depth: 2056 mm
Measurements height: 2194 mm
Machine weight: 9950 kg

Control Unit

Brand: FANUC
Model: 0i Series

Main drive

Spindle speed range: 2000 1/MIN
Spindle motor power: 35/22 (30min/Cont.) kW
Tool taper: A2-11 ASA

Movement

X-AXIS Movement: 352mm
Z-AXIS Movement: 1105 mm

Tools

Number of stations: 10

Media

Chip conveyor: Yes

Additional Equipment

- Hydraulic system // Tank capacity: 16 L, Viscosity grade of oil: ISO VG32
- Lubrication system // Tank capacity: 4.3 L, Discharge volume: 0,1 (50Hz) L/min, Viscosity grade of oil: ISO VG68
- Coolant system // Tank capacity: 365 L, Coolant oil type: Water soluble cutting fluid, Coolant pump motor power: 0.4 kW, Coolant pump max. pressure: 0,15/0,1 (60/50Hz) MPa, Coolant pump max. flow rate: 40 L/min
- Full enclosure chip and coolant shield
- Front door interlock Foot switch
- Hydraulic power unit
- Hydraulic chuck & actuating cylinde
- Work light
- Chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed: 790mm // swing over saddle: 590mm
- - Max turning diameter: 550mm
- - Max turning length: 1042mm
- - Bar working diameter: 116. 5mm
- - Accuracy: positioning x, z: 0,01/0,02mm
- - Repeatability: ±0,002 / ±0,003
- - Drive mechanism - belt drive + gear box standard chuck size: 380(15”) mm // spindle nose: a2-11 asa // spindle bearing diameter (front): Ø180 mm // spindle through hole diameter: Ø132 mm // bore of draw tube: Ø117. 5 mm
- - Max. Spindle torque for turning: 2379 n. M
- - Tail stock - drive mechanism: programmable (drive bar + carriage) // quill diameter: Ø120 mm // quill travel: 120 mm // tail stock travel: 1000 mm // tail stock center: #5 dead center mt
- - Turret - tool holder mount type: di base holder // number of tool stations: 10 ea // turret indexing type: servo driven type // turret indexing time – full station: 1. 9 // od tool size: 32x32 mm // max. Boring bar size: Ø60 mm // rapid traverse rate x, z - axis: 16/20 m/min // ballscrew (diameter x lead) – x axis: 40 x 8 mm // ballscrew (diameter x lead) – z axis: 50 x 10 mm // servo motor power x, , z – axis: 4,0 / 7,0 kw
Qualitative Machine Benefits:
- - Tool holder & boring sleeve kit
- - Easy operating system
- - Doosan ez guide i
- - Programmable tail stock
- - Coolant pump 4 kw 1,0 mpa 30l/min
- - Tool setter automatic
- - Signal tower
- - Oil skimmer
- - Doosan tool load monitoring
- - Arbitrary speed threading hardened & ground hard jaws

Extra information

- Control power: 3Ph-AC220V/50Hz // Required power capacity: 42.25 kVA // Compressed air supply, pressure: 0.5 MPa // Display unit size 15” color // 380V – 220V Electric power transformer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
