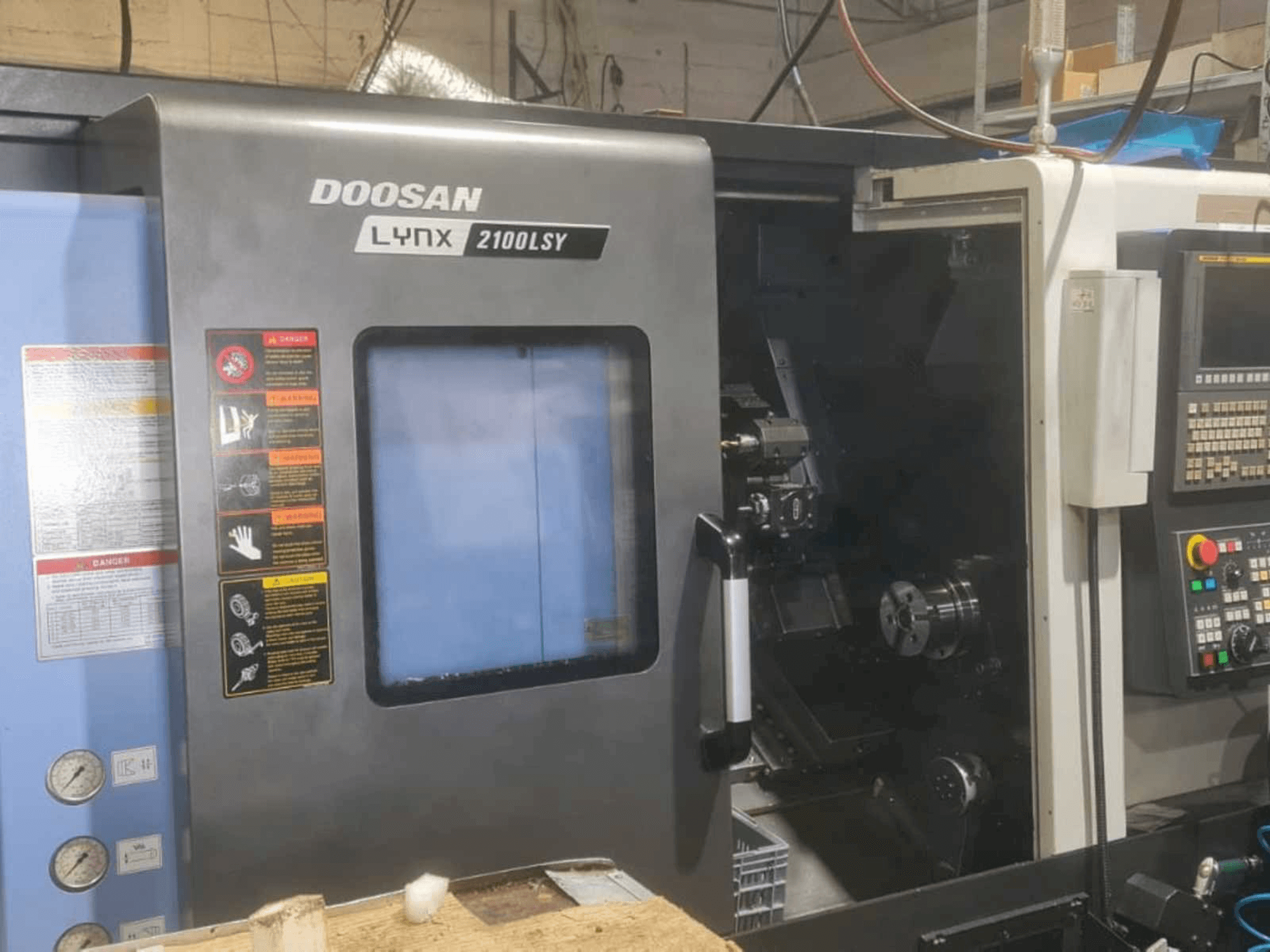

- This Doosan Lynx series 2100 LSYB Lathe machine
This Doosan Lynx series 2100 LSYB Lathe machine was manufactured in the year 2018 in Korea. It is equipped with a Fanuc i Series control unit. The machine has been working only for 152 and works with a spindle speed up to 4500 rpm. Tools and driven tools included.
Overview
- brand: DOOSAN
- year: 2018
- MODEL: Lynx series 2100 LSYB
- production hours: 152
- application type: Turning
- Location: Israel
- machine type: Turn-Mill Centre
- availability: Sold
- control unit brand: FANUC
Technical Information - DOOSAN Lynx series 2100 LSYB
General Data
- Measurements width: 1,710 mm
- Measurements depth: 2,880 mm
- Measurements height: 1,920 mm
- Machine weight: 4,200 kg
Control Unit
- Brand: FANUC
- Model: i Series
Main drive
- Spindle speed range: 4500 1/MIN
- Spindle motor power: 15 kW
Movement
- X-AXIS Movement: 205 mm
- Y-AXIS Movement: 105/52.5 mm
- Z-AXIS Movement: 560 mm
- B-AXIS Movement: 560 mm
Tools
- Number of stations: 12
- Type of tool holder: BMT-45
Additional Information
- Technical Machine Benefits:
- - Rapid traverse x-axis 30 m/min
- - Rapid traverse y-axis 10 m/min
- - Rapid traverse z-axis 36 m/min
- - Max turning diameter 300 mm
- - Max turning length 510 mm
- - Through hole diameter 66 mm
- - Boring bar diameter 32 mm
- - Rotary tool speed 6000 rpm
- - Rotary tool power 3. 7 kw
- - Rotary tool torque 24 nm
- Qualitative Machine Benefits:
- - Tools and driven tools included
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
