➤ Used DOOSAN Lynx 235II - Lathe For sale | gindumac.com

Show in original language

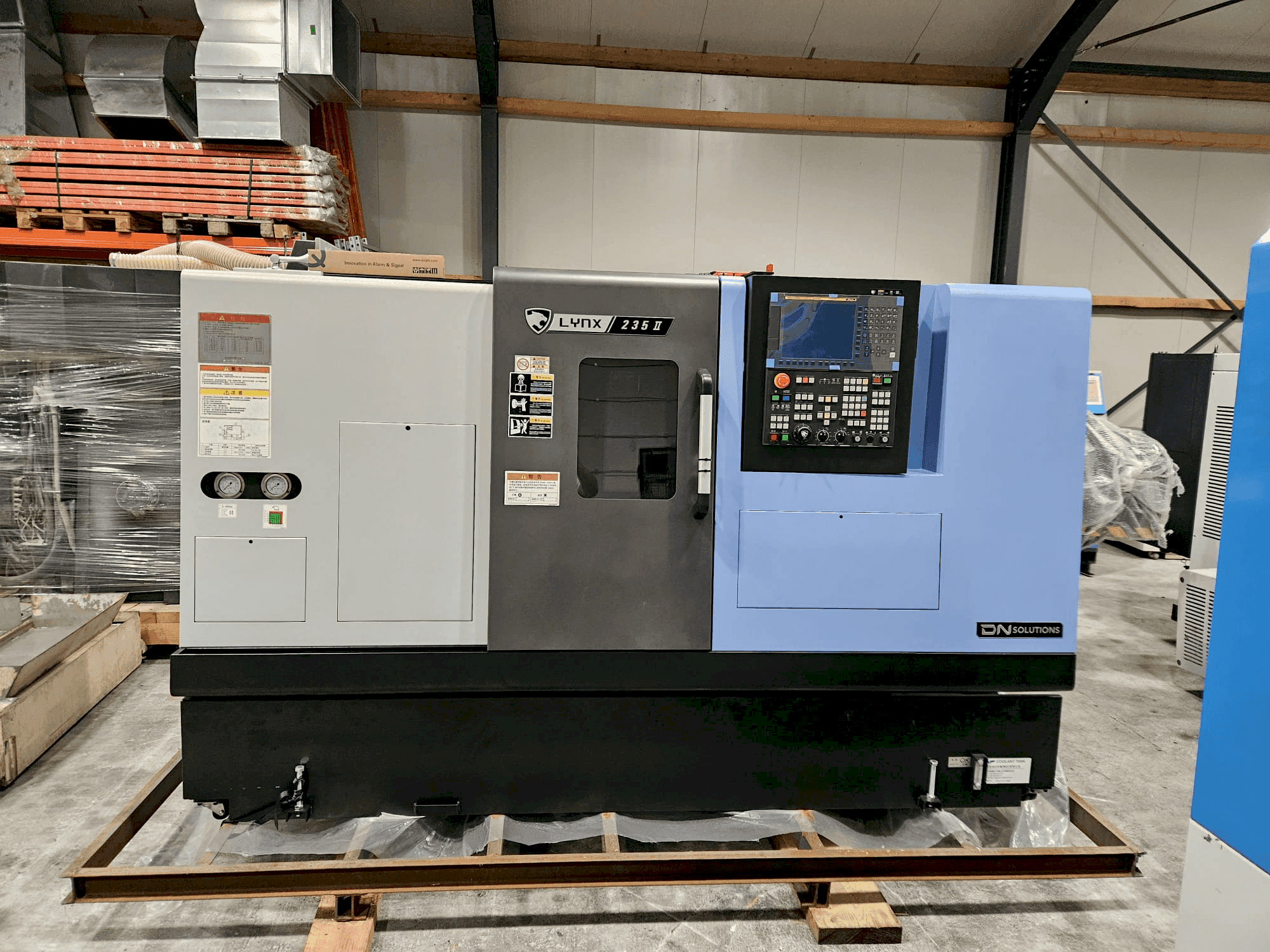

This DOOSAN Lynx 235II lathe was manufactured in 2024. It features a maximum turning diameter of 320 mm and a length of 525 mm, with a bar working diameter of 65 mm. The spindle supports a maximum speed of 4,000 rpm, ensuring efficient machining. Equipped with a 12-station turret and rapid traverses of 30 m/min (X-axis) and 36 m/min (Z-axis), this machine manufactured by DN Solutions (formerly DOOSAN MACHINE TOOLS), offers robust performance for precise operations. For more information about this lathe, please reach out to us.

Overview

brand: DOOSAN
year: 2024
MODEL: Lynx 235II
application type: Turning
Location: Slovenia
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: Fanuc

Technical Information - DOOSAN Lynx 235II

General Data

Measurements width: 1620 mm
Measurements depth: 2795 mm
Measurements height: 1650 mm
Machine weight: 3500 kg

Control Unit

Brand: Fanuc
Model: i Series

Main drive

Number of spindles: 1
Spindle speed range: 4000 rpm 1/MIN
Spindle motor power: 18.5 / 15 kW
Tool taper: MT#4
Number of axis: 2

Movement

X-AXIS Movement: 175 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 550 mm
Y-AXIS Rapid traverse: 36 m/min

Workpiece

Workpiece drm over bed: 510 mm
Workpiece drm over support: 290 mm

Tools

Number of stations: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum turning diameter: 320 mm / maximum turning length: 525 mm
- - Recommended turning diameter: 210 mm
- - Bar working diameter: 65 mm
- - Spindle nose: asa a2#6
- - Spindle bearing diameter (front/rear): 110 mm / 100 mm
- - Spindle through bore: 76 mm
- - Max. Spindle torque: 176. 7 nm
- - Od tool size: 25 × 25 mm
- - Turret index time: 0. 15 s
- - Top trips: 80 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
