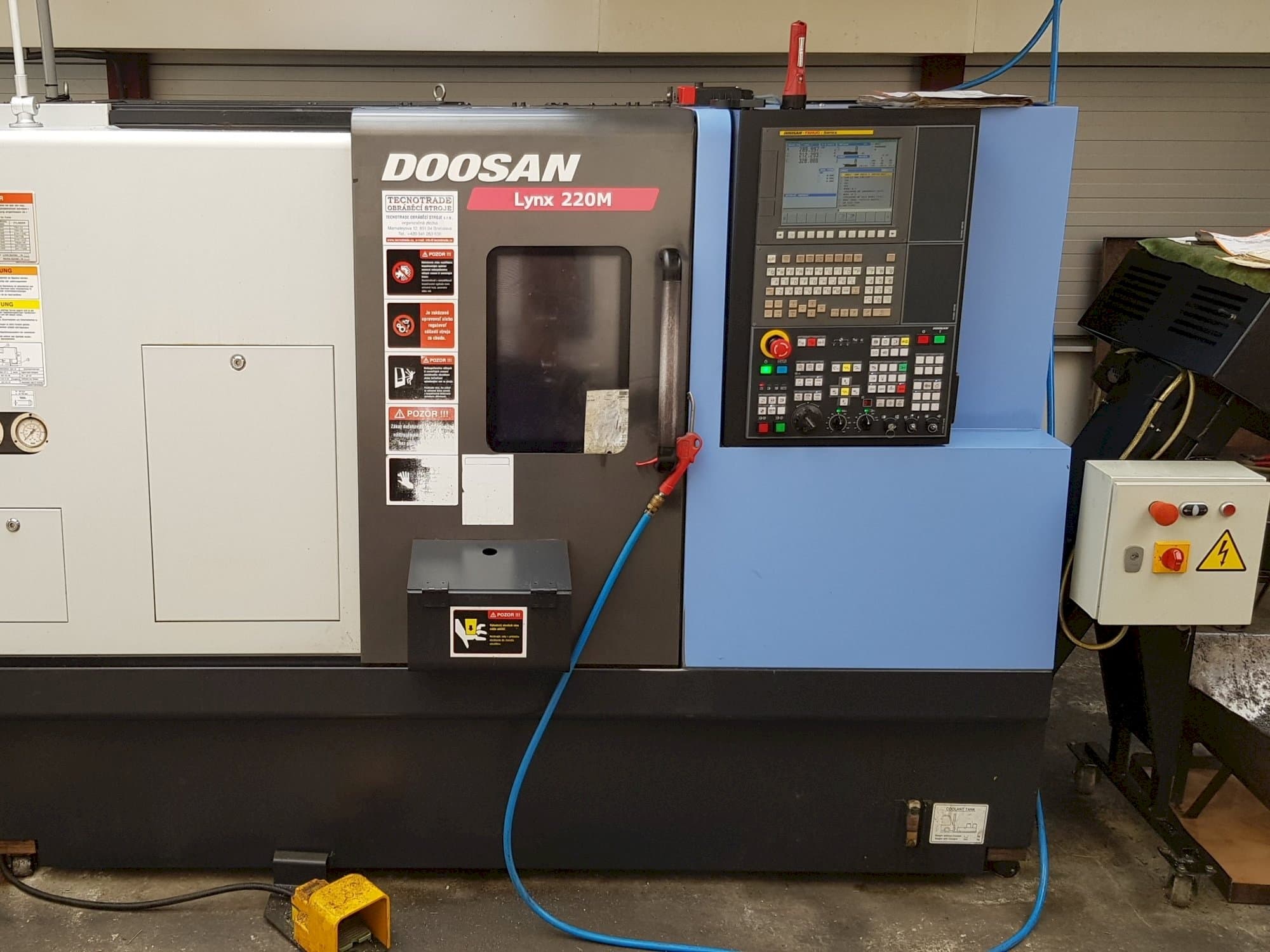

Doosan Lynx 220 MA Turning Machine

Show in original language

This Doosan Lynx 220 MA Turning Machine was built in South Korea in 2014. This machine counts with 11050 production hours, of which 4255 are spindle hours. It is equipped with a DOOSAN - FANUC i Series Control Unit. Its spindle speed is of 6000 1/min. This machine incorporates several technical benefits such as a tool load monitor and Fanuch Manual Guide programming as well as new spindle bearing done in 2020. It is in a very good condition.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 220 MA
production hours: 11050
application type: Turning
Location: Slovakia
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220 MA

General Data

Machine weight: 3300 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 600 1/MIN

Movement

X-AXIS Movement: 175 mm
Z-AXIS Movement: 330 mm

Workpiece

Workpiece weight: 70 kg

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Media

Chip conveyor: Yes

Additional Equipment

- Bar feeder Spacesaver 2200 available at extra charge and not included in the price
- Collet chuck available at extra charge and not included in the price

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing over bed 510 mm
- - Max. Machining diameter 250 mm
- - Max. Machining length 290 mm
- - Max. Bar diameter 51 mm
- - Spindle motor (cont. /30 min) 11/15 kw
- - Turret 12 positions (all driven)
- - C axis 0. 001 degree
- - Live tool power (cont. /10 min) 1. 1/3. 7 kw
- - Hydraulic 3-jaw chuck diameter 169 mm
- - Tool load monitor, fanuc manual guide programming
Qualitative Machine Benefits:
- - Very good condition, low hours.
- - 2020 - new spindle bearings

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
