Doosan Lynx 2100B Lathe

Show in original language

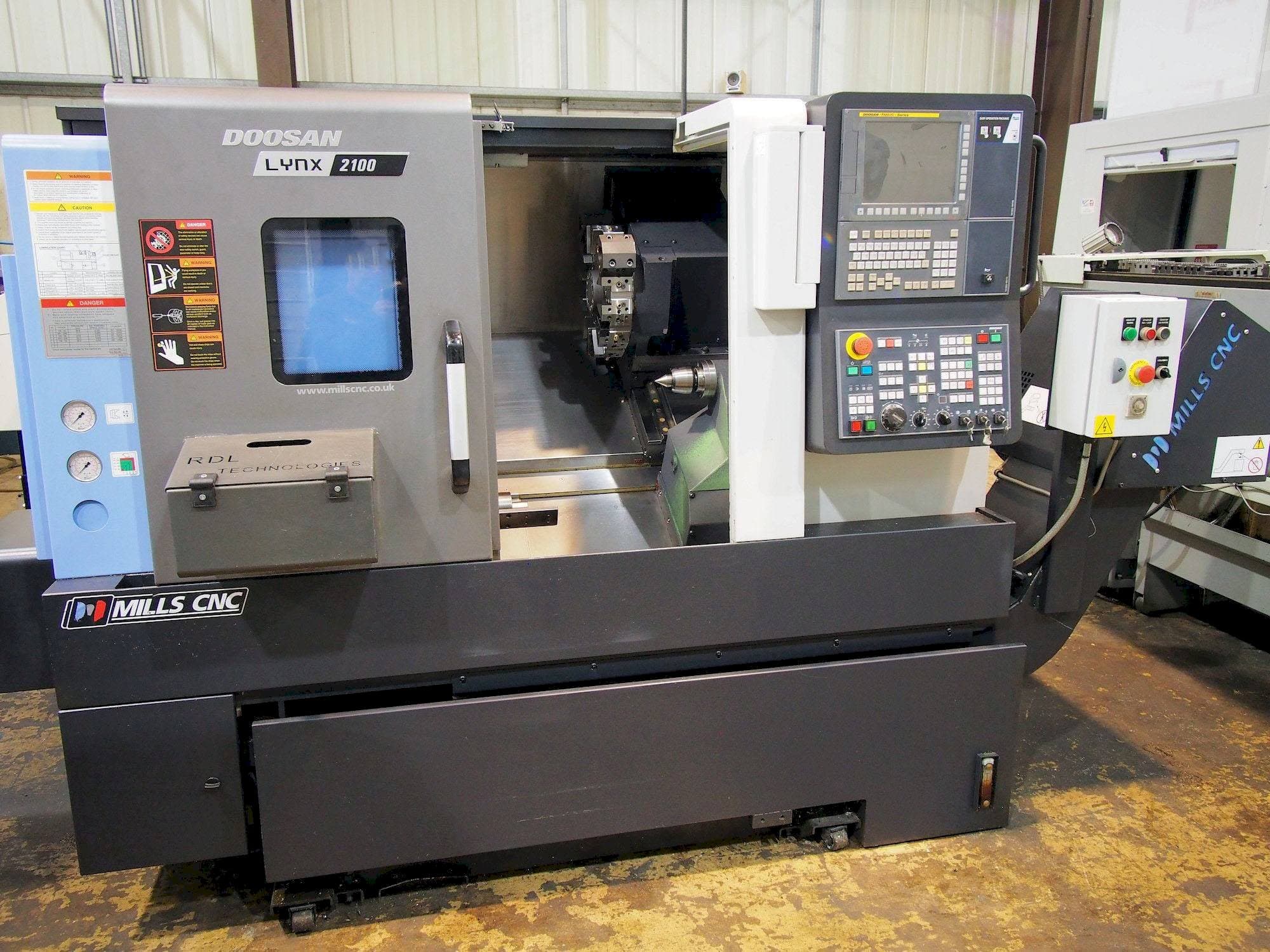

This Doosan Lynx 2100B Lathe was built in 2016 in South Korea. It is equipped with a FANUC I Series control unit. This machine can work with a speed up to 4500 rpm. It includes a tool setter, an internal spindle, a coolant, a tailstock, a low volt light, 3 jaw chuck, collets, collet chuck, parts catcher, and a USB Port.

Overview

brand: DOOSAN
year: 2016
MODEL: Lynx 2100B
application type: Turning
Location: United Kingdom
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100B

General Data

Machine weight: 2750 kg

Control Unit

Model: I Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Spindle motor power: 15/11 kW

Movement

X-AXIS Movement: 205 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing 600 mm
- - Swing over carriage 400 mm
- - Bar capacity 65 mm
- - Chuck size 200 mm
- - Max. Cutting diameter 350 mm
- - Max. Cutting length 330 mm
- - Tailstock quil diameter 65 mm
- - Barfeed magazine
- - Tool setter, internal spindle, coolant, tailstock, low volt light, 3 jaw chuck, collets, collet chuck, parts catcher, usb port
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
