DOOSAN - HM 800DE-MIL-DOO-2007-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

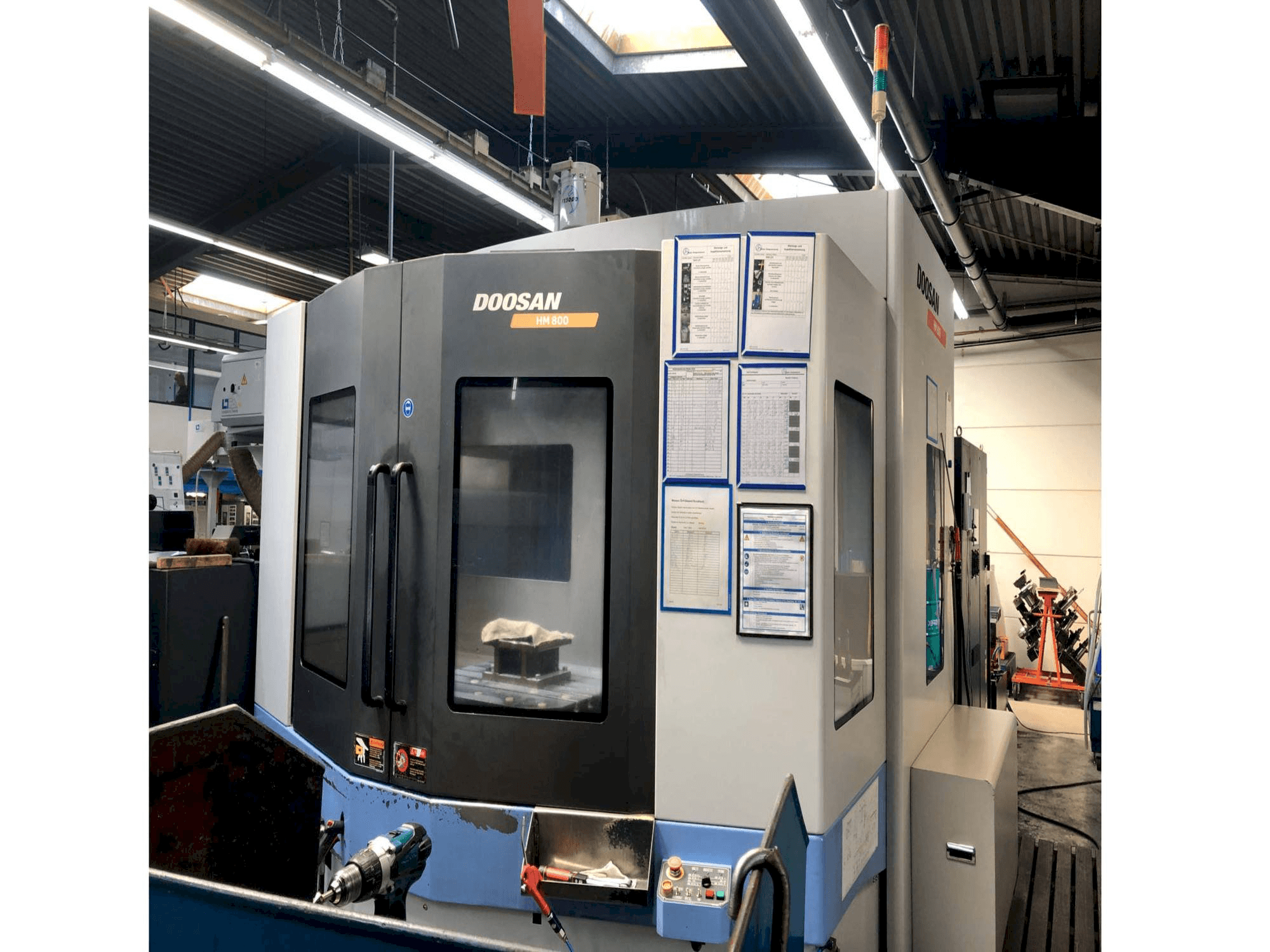

Doosan HM 800 Horizontal Machining center

Show in original language

This Doosan HM 800 Horizontal Machining center was manufactured in the year 2007 in Korea. It is equipped with a FANUC 18 - IM control unit and has 4 axis. The machine has a spindle speed of 20 - 6000 rpm.

Overview

brand: DOOSAN
year: 2007
MODEL: HM 800
application type: Milling
Location: Germany
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN HM 800

Control Unit

Model: 18 - IM
Brand: FANUC

Main drive

Spindle speed range: 20 - 6000 1/MIN
Spindle motor power: 8,5 -22 kW
Number of axis: 4

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 1000 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 800 mm
Outer width: 800 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max workpiece height: 1200 mm
- - Number of magazine places: 90
- - Tool taper: a50, din 69871 b tool length max. Mm. : 550
- - Tool Ø max. : 250 / with free auxiliary space tool weight max. Kg : 25
- - Macro package
- - Tool offsets: 200
- - Paper belt filter
- - Extraction
- - Schanier belt chip conveyor
- - Machine ran 70% of the time in 2 shifts in 14 years.
Qualitative Machine Benefits:
- - Number of pallets: 2

Extra information

- Optional: around 500 tools available for purchase

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
