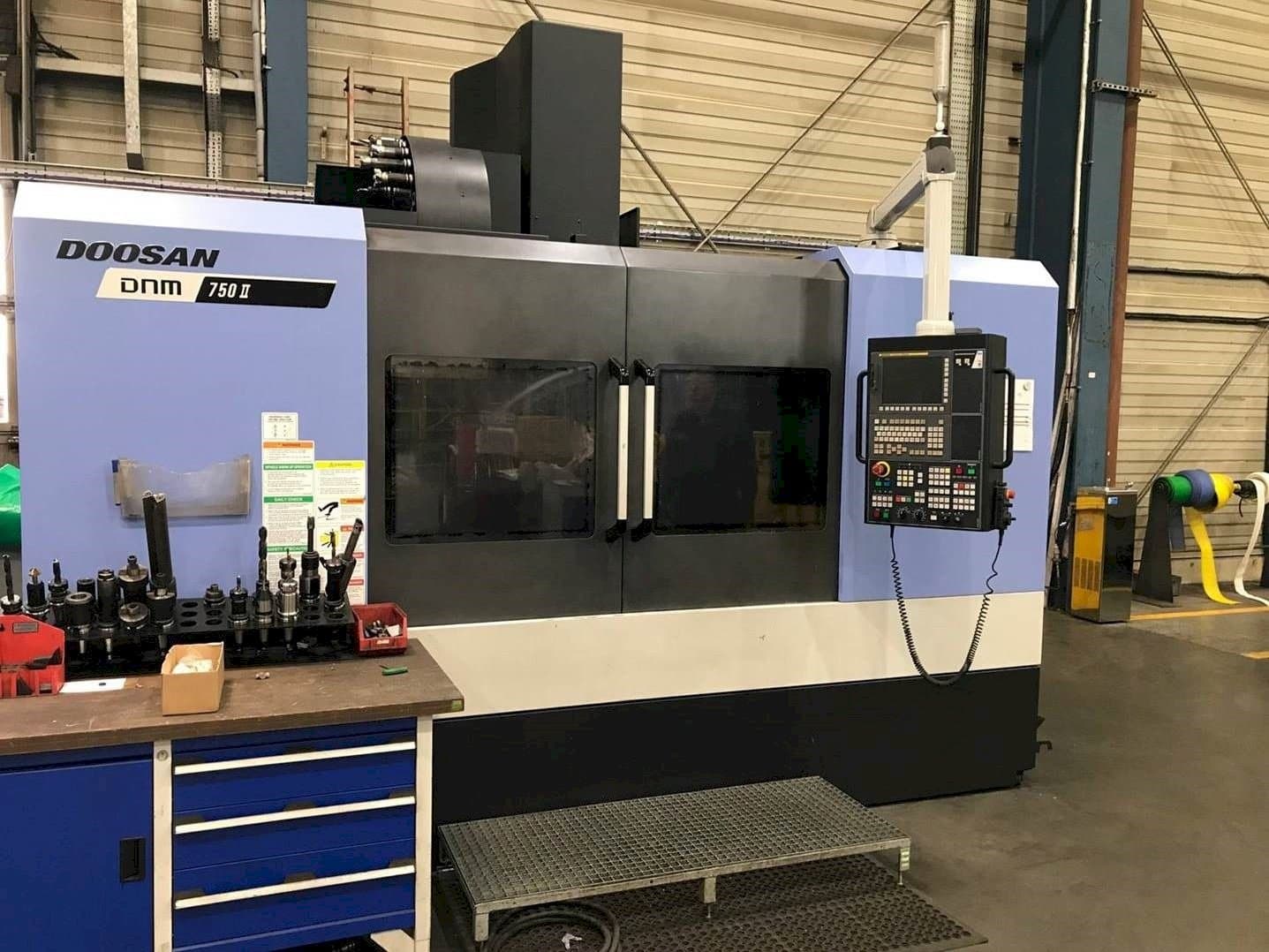

Doosan DNM 750 II Vertical Machining Center

Show in original language

This Doosan DNM 750 II Vertical Machining Center was manufactured in 2016 in South Korea and counts with 14298 hours, from which 1932 are cutting hours. It is operated with a FANUC Oi control unit. This machine can work with a speed up to 12000 rpm. It includes a coolant, interlocked guards, low volt light. This machine is in very good conditions.

Overview

brand: DOOSAN
year: 2016
MODEL: DNM 750 II
production hours: 14298
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 750 II

General Data

Machine weight: 13500 kg

Control Unit

Model: Oi
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Spindle motor power: 18,5 kW

Movement

X-AXIS Movement: 1630 mm
Y-AXIS Movement: 762 mm
Z-AXIS Movement: 650 mm

Table

Outer length: 1630 mm
Outer width: 760 mm

Tools

Slots in storage: 30
Type of tool holder: BT 40

Media

Power consumption: 37,5 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Through spindle coolant
- - Coolant
- - Interlocked guards
- - Low volt light
- - Manuals
- - Swarf conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
