Doosan DNM 6700 XL Vertical Machining center

Show in original language

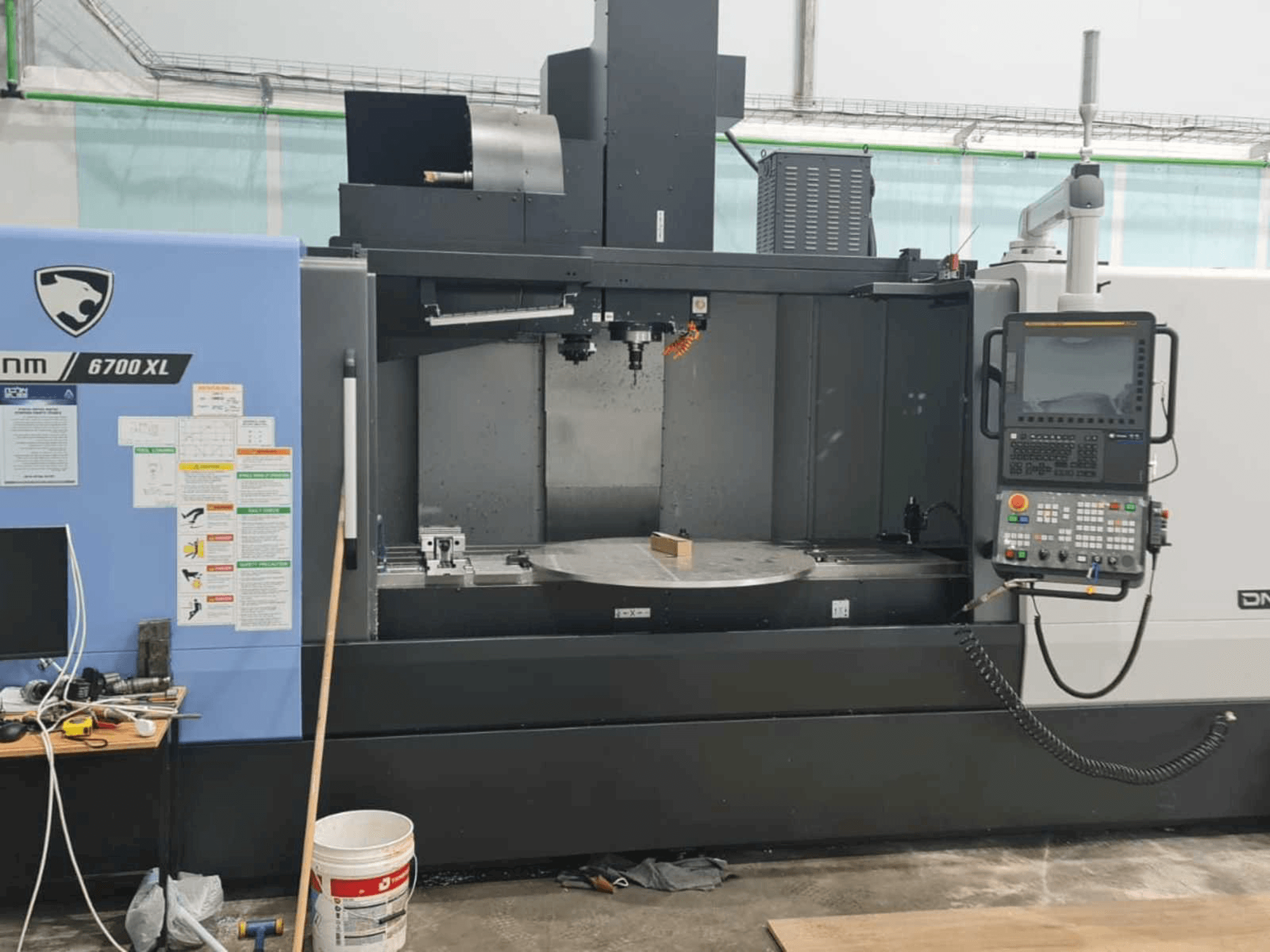

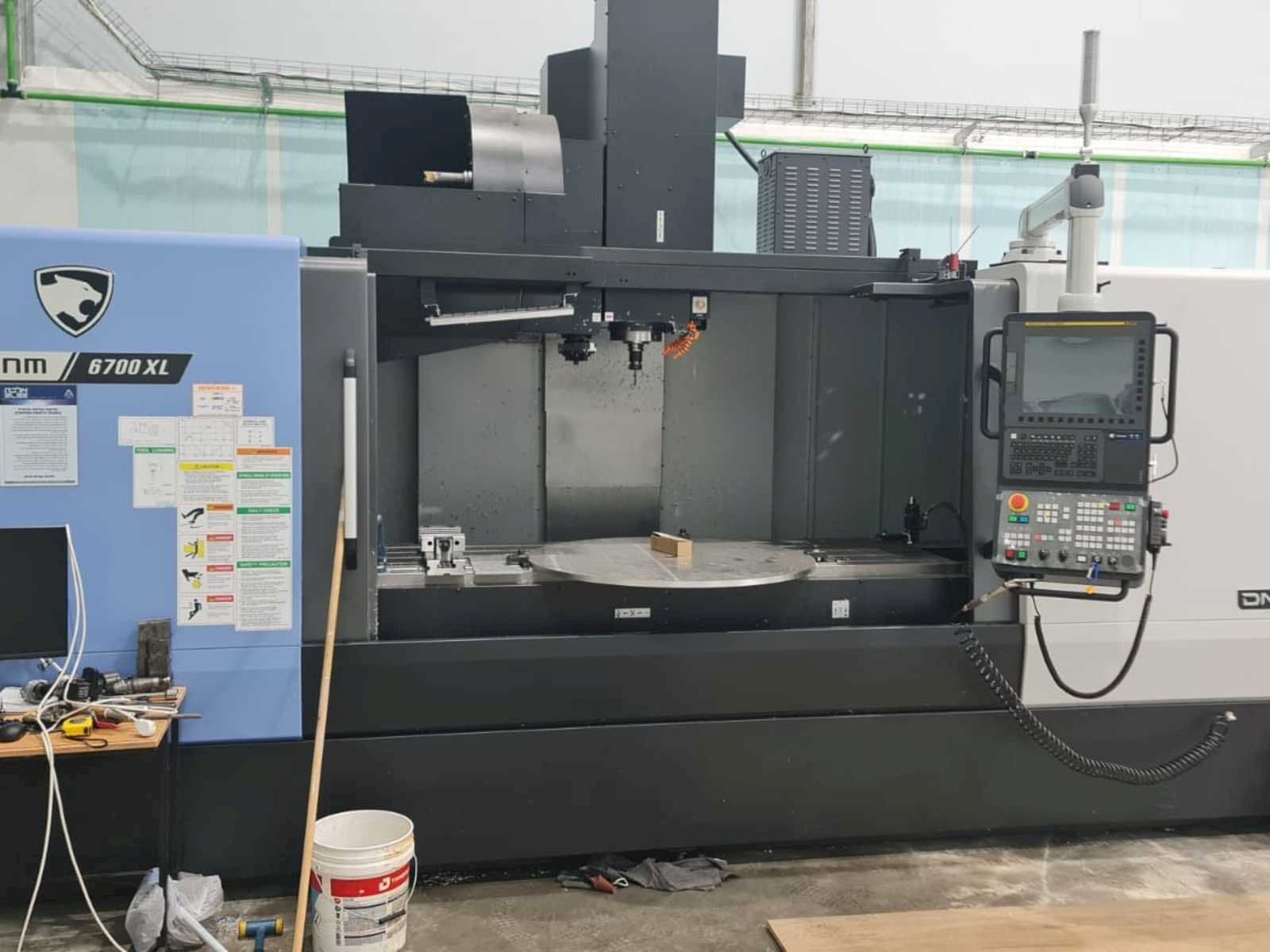

This Doosan DNM 6700 XL Vertical Machining Center was manufactured in the year 2023 in Korea. It is equipped with a FANUC Series 0i Plus control unit. The machine has a spindle speed of 12000 rpm.

Overview

brand: DOOSAN
year: 2023
MODEL: DNM 6700 XL
application type: Milling
Location: Israel
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 6700 XL

General Data

Measurements width: 4800 mm
Measurements depth: 2970 mm
Measurements height: 3120 mm
Machine weight: 10000 kg

Control Unit

Model: Series 0i Plus
Brand: FANUC

Main drive

Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 2100 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Movement: 670 mm
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 625 mm
Z-AXIS Rapid traverse: 30 m/min

Tools

Max weight: 8 kg
Max tool diameter: 80-125 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table surface : t‐slot (5‐125 x 18h8) mm
- - Table size: 2200x 670 mm
- - Max. Workpiece height : 700 mm
- - Max. Workpiece weight 1300 kg
- - Spindle to table surface 150 ~ 775 mm
- - Power (cont. / short) 11/18. 5 kw
- - Max. Torque (short term) 117. 8 (s3 25%) nm
- - Tool shank: mas403 bt 40
- - Tool storage capacity: 30
- - Cartiridge capacity: l 0. 7
Qualitative Machine Benefits:
- - Pump motor power: 0. 024 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
