DOOSAN - DNM 5700SK-MIL-DOO-2016-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan DNM 5700 Milling

Show in original language

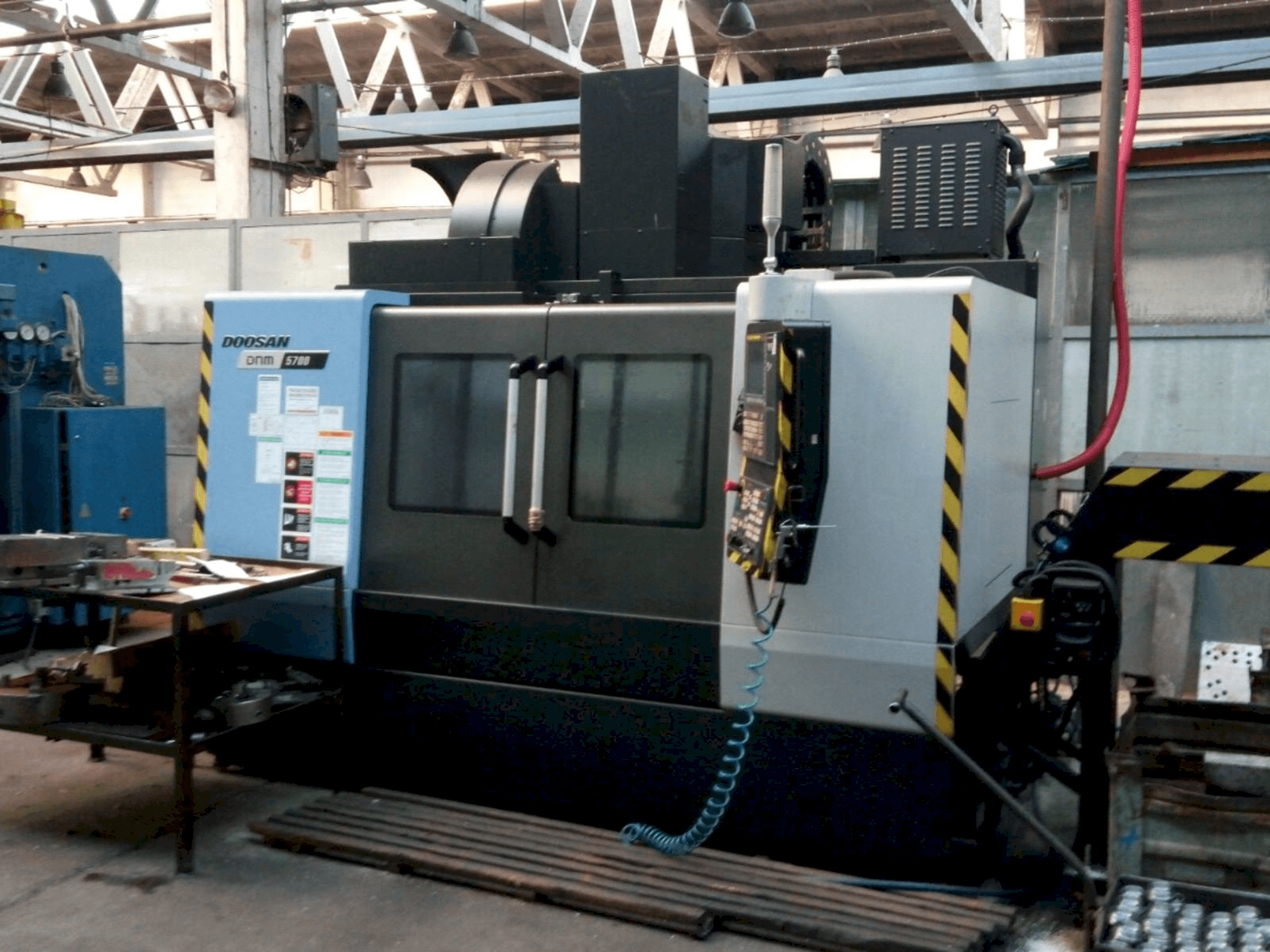

This Doosan DNM 5700 Vertical Machining Center was built in South Korea in the year 2016. It has 2848 hours of working time. It is equipped with a Fanuc i Series control unit. This machine can work with a spindle speed of 8000 rpm. The machine includes a set of tool holders.

Overview

brand: DOOSAN
year: 2016
MODEL: DNM 5700
production hours: 2848
application type: Milling
Location: Slovakia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN DNM 5700

General Data

Measurements width: 2413 mm
Measurements depth: 3110 mm
Measurements height: 2985 mm
Machine weight: 6500 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 8000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1050 mm
Y-AXIS Movement: 570 mm
Z-AXIS Movement: 510 mm

Workpiece

Workpiece weight: 1000 kg

Table

Outer length: 1300 mm
Outer width: 570 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm
Type of tool holder: ISO 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Set of tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Distance spindle nose/table surface 150-660 mm
- - Rapid feedrates x/y/z 36/36/30 m/min
- - Spindle motor power (cont. /15 min. ) 11/18. 5 kw
- - High pressure cooling with filter 12 bar
- - Coolant tank 310 l
- - Renishaw ts27r tool probe
- - 3 controlled axis
Qualitative Machine Benefits:
- - Very good condition, low hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
