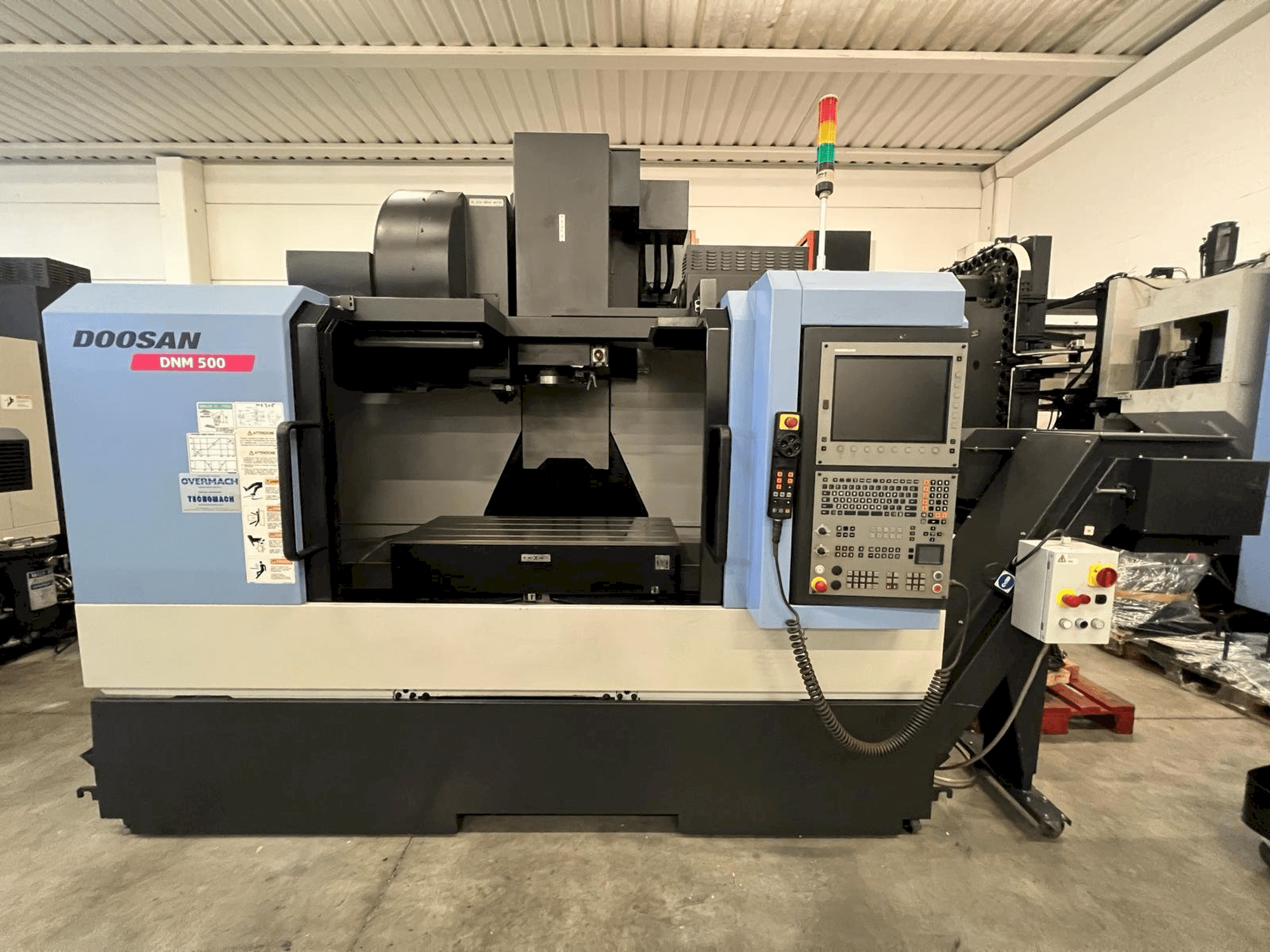

DOOSAN DNM 500 Vertical Machining Centre

Show in original language

This DOOSAN DNM 500 Vertical Machining Centre was manufactured in 2012 in South Korea. It is equipped with a HEIDENHAIN iTNC 530 control and internal cooling - IKZ - 18 bar. This 4 axis machining centre has a ISO 40 spindle with 12,000 rpm and 18kW motor power. It comes with presetting, chip conveyor and a 30 tool magazine. The table size is 1200 x 540 mm.

Overview

brand: DOOSAN
year: 2012
MODEL: DNM 500
production hours: 13558
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DOOSAN DNM 500

General Data

Machine weight: 6500 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 12000 1/MIN
Spindle motor power: 18 kW
Tool taper: ISO 40

Movement

X-AXIS Movement: 1020 MM
Y-AXIS Movement: 540 MM
Z-AXIS Movement: 510 MM

Table

Outer length: 1200 mm
Outer width: 540 mm

Tools

Slots in storage: 30

Media

Chip conveyor: Yes
Internal cooling: Yes
Cooling pressure: 18 bar

Additional Equipment

- Internal Cooling - IKZ 18 bar
- Chip Conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Number of tools places in magazine: 30
- - Presetting: yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
