DN SOLUTIONS - NHP 5000IT-MIL-DN -2021-00001

Name: DN SOLUTIONS NHP 5000
Brand: DN SOLUTIONS
SKU: IT-MIL-DN -2021-00001
Price: 153500 GBP
Availability: InStock

£ 153,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DN SOLUTIONS NHP 5000 Horizontal Machining center

Show in original language

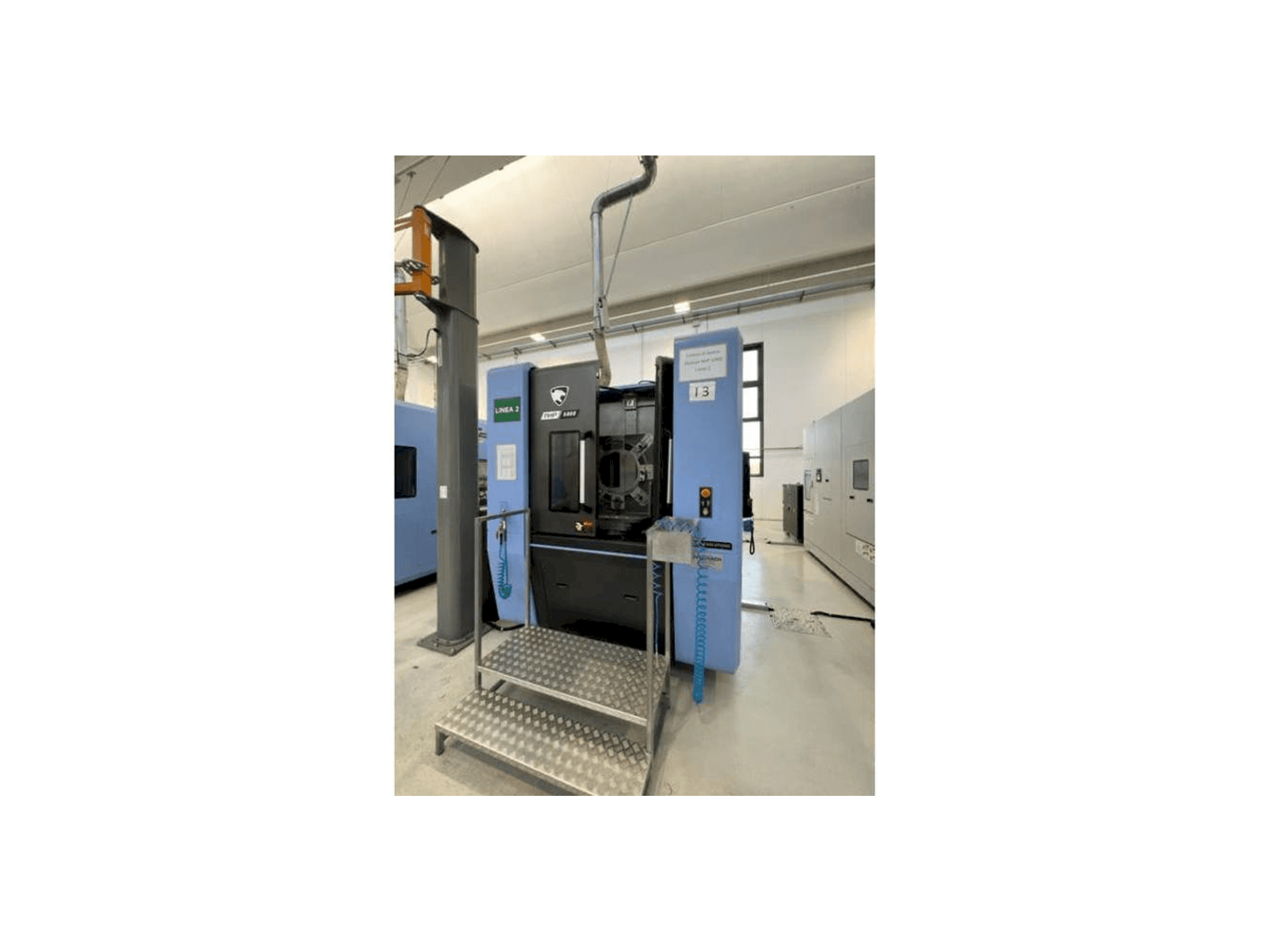

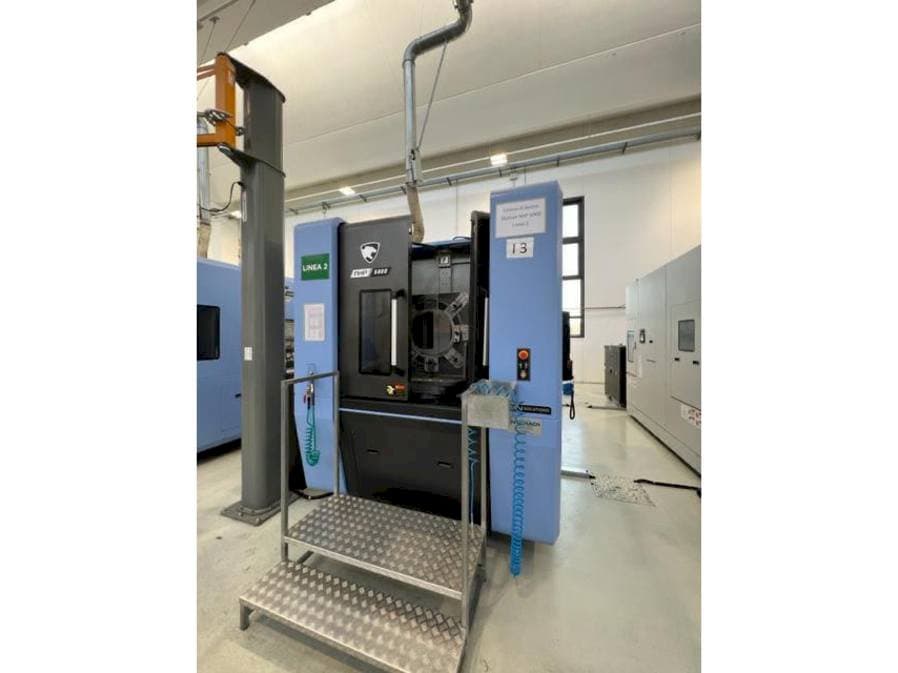

This DN SOLUTIONS NHP 5000 Horizontal Machining center was manufactured in the year 2021. It is equipped with a FANUC 31I-MODEL B control unit and has 4 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: DN SOLUTIONS
year: 2021
MODEL: NHP 5000
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - DN SOLUTIONS NHP 5000

General Data

Measurements width: 2680 mm
Measurements depth: 5450 mm
Measurements height: 2880 mm
Machine weight: 11500 kg

Control Unit

Model: 31I-MODEL B
Brand: FANUC

Main drive

Spindle speed range: 15000 1/MIN
Tool taper: ISO 40
Number of axis: 4

Movement

X-AXIS Movement: 730 mm
Y-AXIS Movement: 730 mm
Z-AXIS Movement: 880 mm

Table

Outer length: 500 mm
Outer width: 500 mm

Tools

Slots in storage: 60

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Weight piece (spindle): 500 kg
- - Torque (cont. / 10 min) (spindle): 150 nm
- - Rapid x-axis travel (rapid travel): 60000
- - Y-axis rapid traverse (rapid traverse): 60000
- - Z-axis rapid traverse (rapid traverse): 60000
- - Max. Diameter tool (atc warehouse): d. 75 d. 170
- - Max. Length tool (from reference line) (atc magazine): 550
- - Tool selection method (atc magazine): fixed
- - Max. Weight tool (atc magazine): 12
- - Tool change time (atc magazine): 2. 8
Qualitative Machine Benefits:
- - Pressure (refrigerant): 70 bar
- - Cooling tank (refrigerant): 500l
- - Apc 2 stations
- - Running x730 x y730 x z880 (voltage: d. 800x1000)
- - Iso 50 electric spindle with double contact flange, oil cooled
- - Pallet capacity: 500 kg
- - External air blow adjustable “m” function
- - Internal refrigerant supply at 70 bar
- - Preparation of the measurement probe for zeroing of the piece with renishaw rmp60 cycles (radio broadcast) -data server 2gb, fanuc aicc 2 software (high speed for molds and 3d figures, 1ooo blocks ahead)
- - Communication with ports and usb + ethernet

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
