➤ Used DMG SAUER ULTRASONIC 10 Sauer | Machining Center

Show in original language

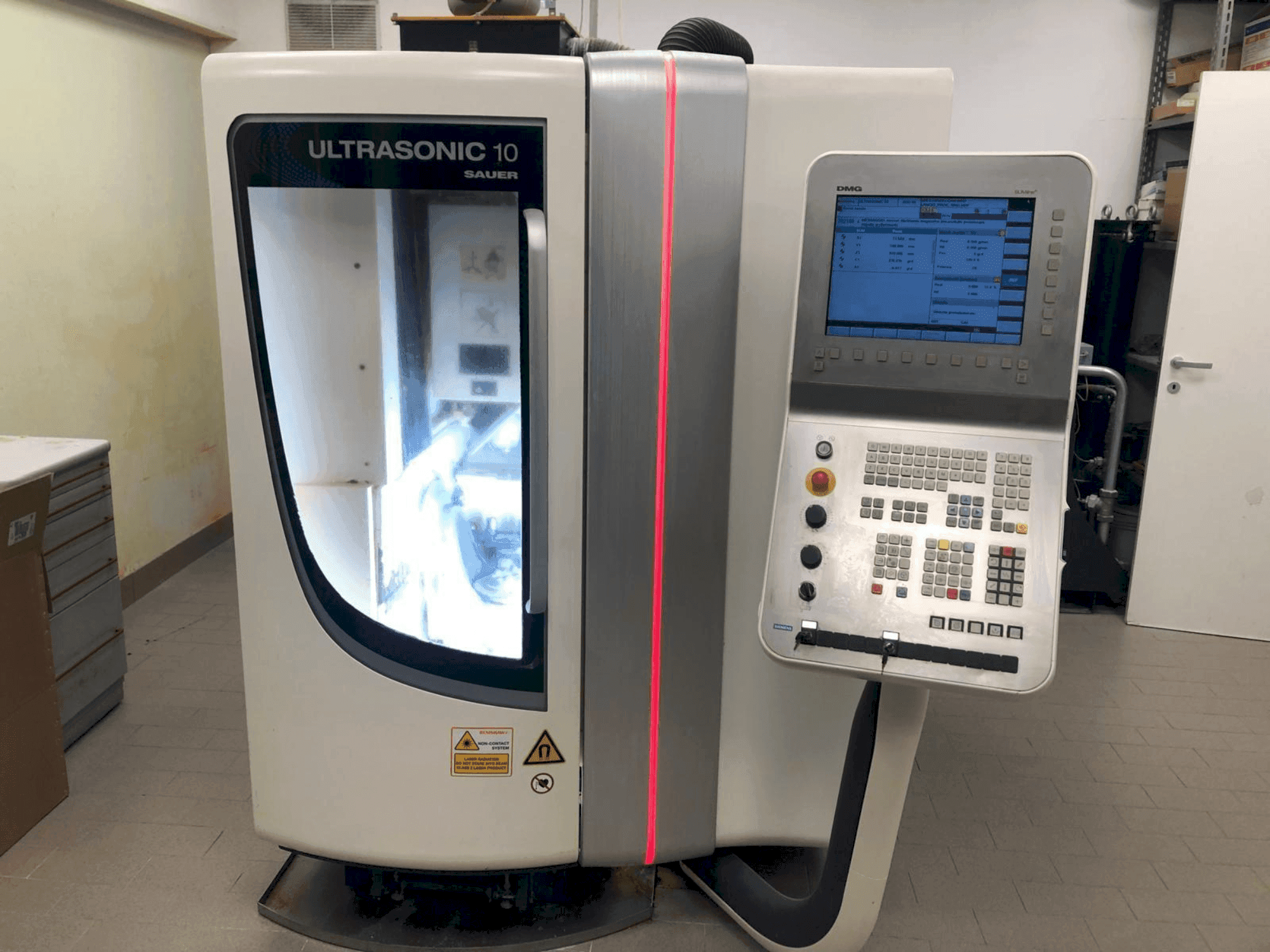

This 5-axis DMG SAUER ULTRASONIC 10 Sauer was manufactured in 2010, offering advanced capabilities in a vertical machining centre format. Ideal for complex geometries and precision parts, this machine represents a significant asset for any machining operation. Contact us for more information about this machine.

Overview

brand: DMG
year: 2010
MODEL: SAUER ULTRASONIC 10 Sauer
production hours: 23676
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG SAUER ULTRASONIC 10 Sauer

General Data

Measurements width: 1530 mm
Measurements depth: 1775 mm
Measurements height: 2253 mm
Machine weight: 1800 kg

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D SL

Main drive

Spindle speed range: 40000 rpm 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 120 mm
Y-AXIS Movement: 120 mm
Z-AXIS Movement: 200 mm
A-AXIS Movement: -15° to 120° MM
C-AXIS Movement: 360° MM

Table

Table load: 5 kg

Tools

Type of tool holder: HSK-25

Media

Power consumption: 25 kVA

Additional Equipment

- Accessories: Ultrasonic PowerShrink

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum rotation speeds: 40000 rpm
- - Maximum milling speed range: 40000 rpm
- - Nc table with clamping surface: ø 190 mm
- - Working voltage: 400v (n/pe) / 50a
- - Compressed air required: 6 bar
- - Average air consumption: 20 m³/hour

Extra information

- Machine still under power
