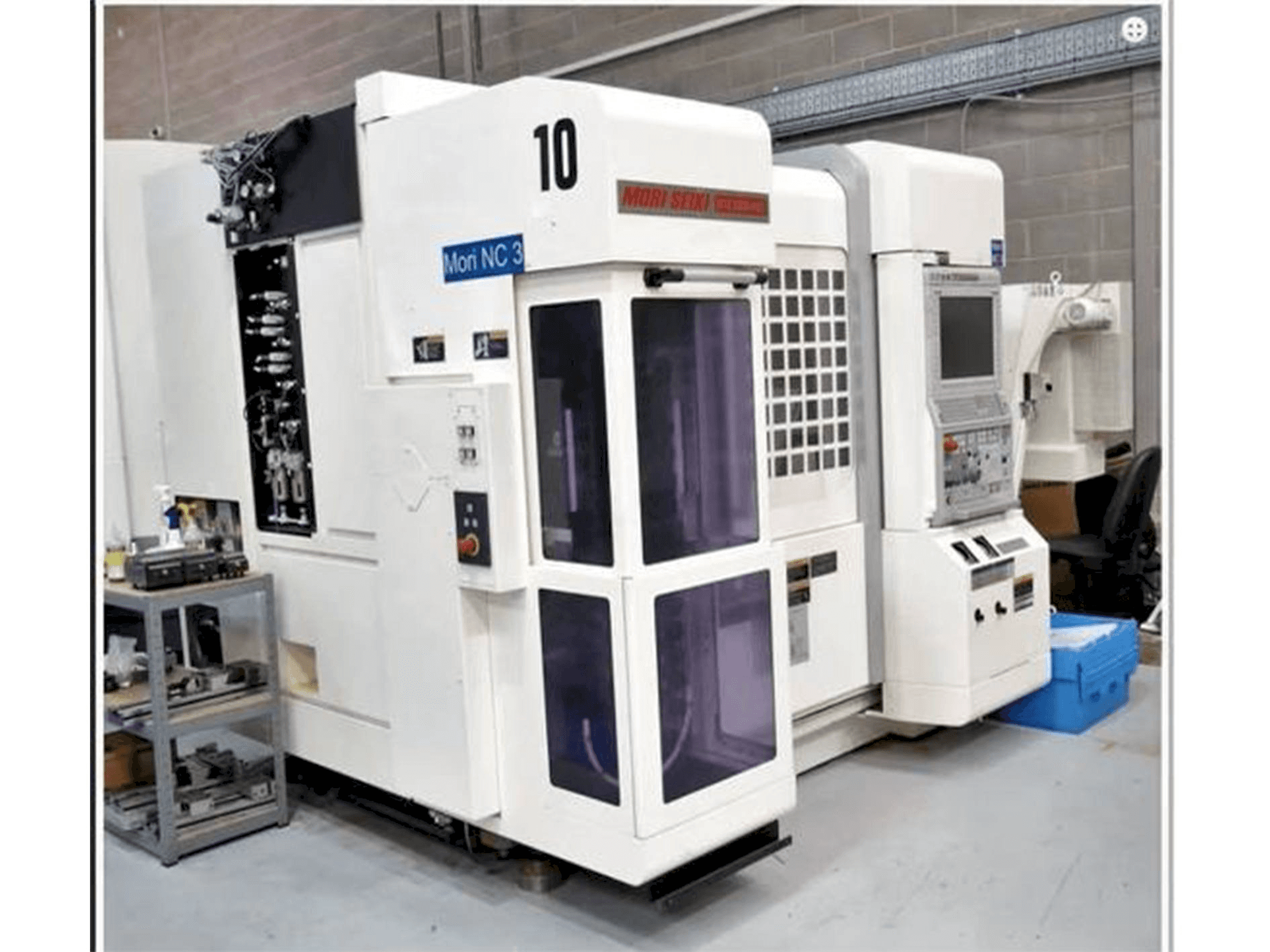

DMG Mori NTX1000 HSC WMZ Lathe machine.

Show in original language

This DMG Mori NTX1000 HSC WMZ Lathe machine was manufactured in the year 2012 in United Kingdom. This machine works with a spindle speed up to 2000 rpm. It counts with an ATC 10 station turret and a tool spindle taper Capto C5.

Overview

brand: DMG MORI
year: 2012
MODEL: NTX1000 HSC WMZ
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold

Technical Information - DMG MORI NTX1000 HSC WMZ

Main drive

Spindle speed range: 6000 - 20000 1/MIN
Spindle motor power: 11 kW
Tool taper: Capto C5

Movement

X-AXIS Movement: 380 mm
Y-AXIS Movement: 105 mm
Z-AXIS Movement: 460 mm
A-AXIS Movement: 825 mm
B-AXIS Movement: 120° MM

Workpiece

Workpiece drm: 370 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over cross slide Ø370mm.
- - Swing over bw axis Ø840mm.
- - Max turning length 424mm.
- - Max bar capacity Ø52mm.
- - 'x2'=155mm(turret), 'z2'=610mm(turret).
- - Through spindle bore Ø61mm.
- - Max speed of work discharge unit 1,000rpm.
- - 38 tool
- - Atc. 10 station turret.
- - Rapid traverse 'x' & 'y' 40m/min, 'z'=50m/min.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
