DMG MORI - ecoTurn 450 V1DE-TUR-DMG-2016-00002

Name: DMG MORI ecoTurn 450 V1
Brand: DMG MORI
SKU: DE-TUR-DMG-2016-00002
Price: 41500 GBP
Availability: InStock

£ 41,500

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI ecoTurn 450 V1 For Sale | gindumac.com

Show in original language

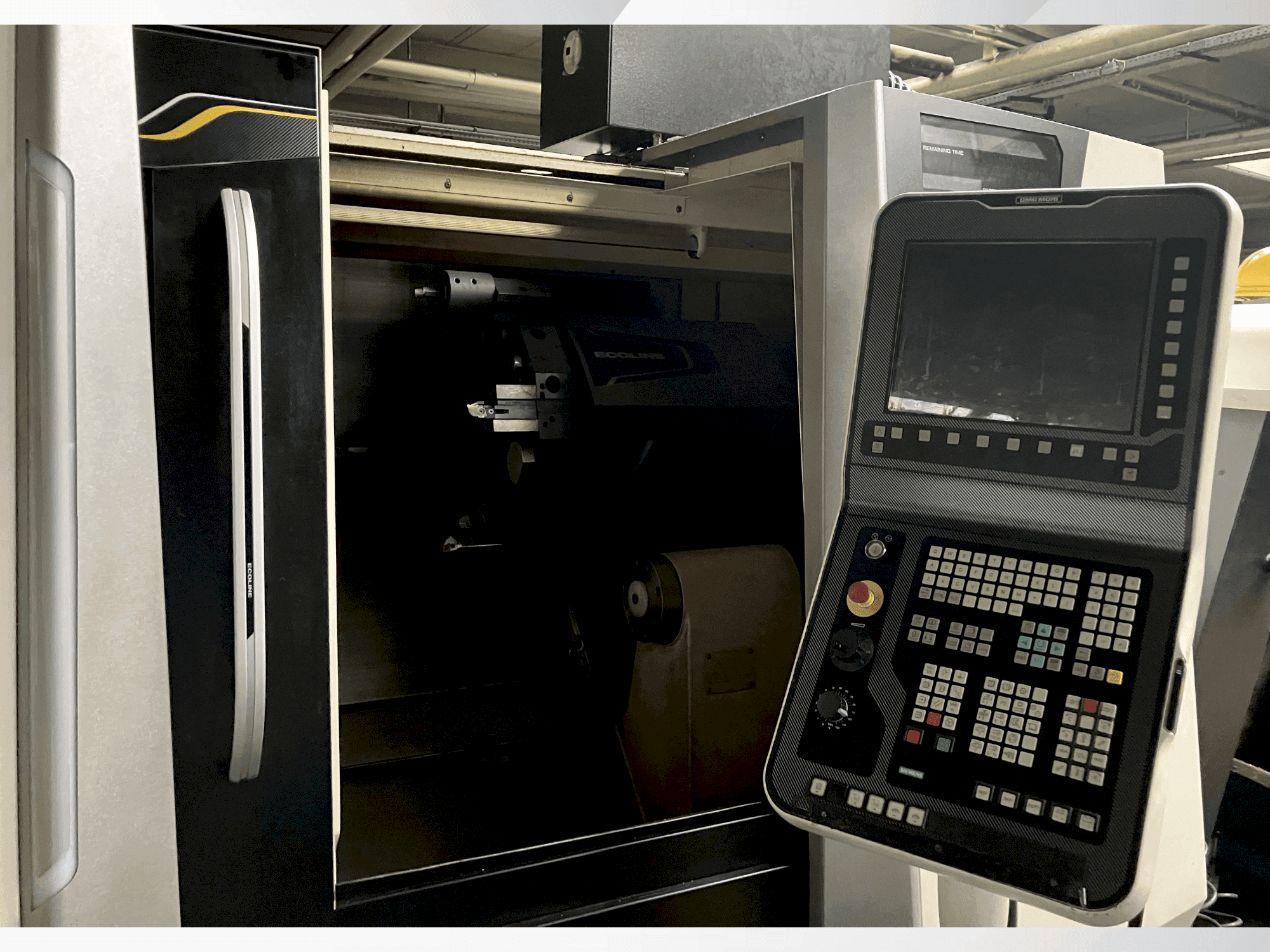

This DMG MORI ecoTurn 450 V1 horizontal turning machine was manufactured in 2016. It features a Siemens Sinumerik 840D control system, a maximum turning diameter of 400mm, and a rapid traverse rate of 30 m/min in both X and Z axes. The spindle supports a maximum speed of 4000 rpm, and the tool turret holds 12 stations. Consider the opportunity to buy this DMG MORI ecoTurn 450 V1 horizontal turning machine. Contact us for more information.

Overview

brand: DMG MORI
year: 2016
MODEL: ecoTurn 450 V1
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - DMG MORI ecoTurn 450 V1

General Data

Machine weight: 5800 kg

Control Unit

Brand: SIEMENS

Controller

Brand: Siemens
Model: Sinumerik 840D

Main drive

Spindle speed range: 4000 rpm 1/MIN

Media

Chip conveyor: Yes

Additional Equipment

- Hydraulic Unit Tank Capacity: 10 L / Max. Pressure: 55 bar
- Coolant System Capacity: 170 L / Coolant Spray Gun: 5 bar
- Mechanical Oil Separator Type: ASF 600 m³/h

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dimensions of machine (lxwxh): machine with chip tray 3000 x 2660 x 1932 mm; machine with chip conveyor approx. 4180 x 2660 x 1932 mm
- - Torque (40%/100% ed): 370 / 280 nm
- - Max. Swivel range over bed: 650 mm / swivel range over x carriage: 465 mm
- - Max. Turning diameter: 400 mm / max. Turning diameter with y-axis: 315 mm
- - Chuck diameter: 250/215 mm / travel x: 267. 5 mm / travel z: 600 mm / rapid traverse x/z: 30/30 m/min
- - Tool stations: 12 tool stations / tool holder: vdi 40 /cylinder shaft diameter: 40 mm / number of tool stations: bmt 6
- - Stroke: 500 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
