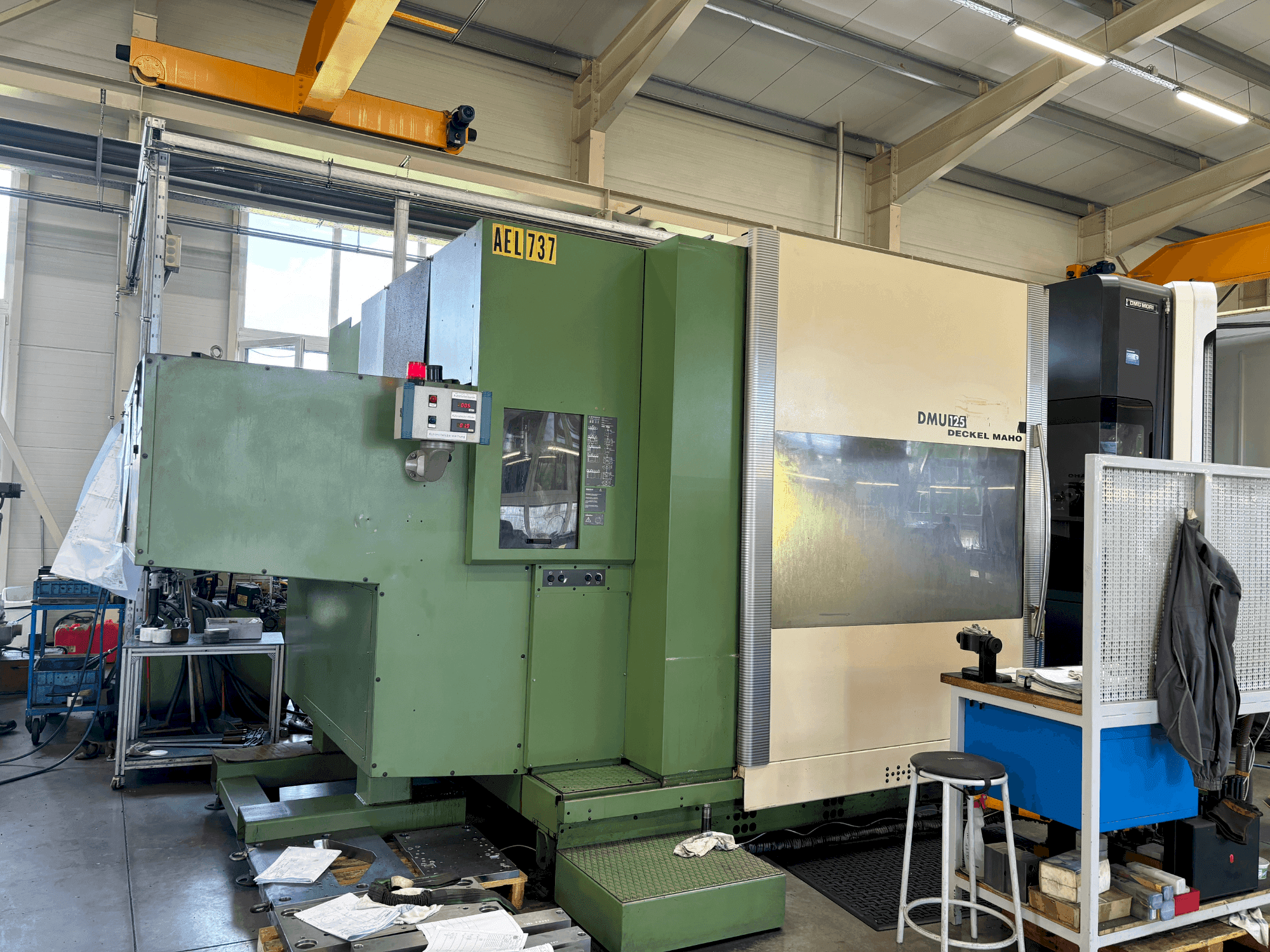

DMG MORI - DMU 125HU-MIL-DMG-2000-00003

Additional Equipment

• - Tool Changer with Magazine: SK 40 / SK 50: Magazine Capacity: 30 / 60 / 120 / 180 tools, HSK-E 50: Magazine Capacity: 30 tools
• - Total Weight in Magazine: 100 / 200 / 400 / 600 kg (SK 40), 200 / 400 / 800 / 1,200 kg (SK 50)
• - Max. Rotational Speed: 8.1 U/min
• - Feed: 2,900 °/min// Max. Rotational Speed: A-Axis: 5.6 U/min, C-Axis: 7.1 U/min
• - Tool Clam
• - Swivel Range A-Axis: +/- 45° / 30° // Rotary Range C-Axis: n x 360°
• - Tool Interface: Tapered Shank SK 40 or SK 50 according to DIN 69871, Hollow Shank HSK-E50 or HSK-A63 according to DIN 69893
• - T-Slot Distance (Radial): 22.5° / T-Slot Width: Direct T-Slot: 18 H7 mm, Clamping Slot: 18 H11 mm
• - Center Bore Diameter: Ø 50 H6 mm
• - Permissible Load on Work Tables: Fixed Table: 2,500 kg, NC Rotary Table: 2,000 kg, NC Swivel Rotary Table: 1,000 kg

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Fixed table clamping surface: 1,500 x 1,050 mm
  • - Nc rotary table clamping surface: Ø 1,250 x 1,000 mm
  • - Nc swivel rotary table clamping surface: Ø 1,000 mm
  • - Permissible load on fixed table: 2,500 kg
  • - Permissible load on nc rotary table: 2,000 kg
  • - Permissible load on nc swivel rotary table: 1,000 kg
  • - Steplessly programmable feed speed for x, y, z axes from 20 to 10,000 mm/min, rapid traverse speed of 40 m/min, comprehensive tool changer with large magazine capacity, high permissible load on work tables
  • - Feed drive type: ac brake motors for x, y, z axes
  • - Setup operation speed: 20 to 2,000 mm/min
  • - Max. Torque: 3,508. 4 nm /holding torque: 5,950 nm
• Qualitative Machine Benefits:
  • - High precision with measurement system resolution of 0. 001°

Extra information

• - Machine still under power
