DMG MORI DMF 360-11 Vertical Machining center

Show in original language

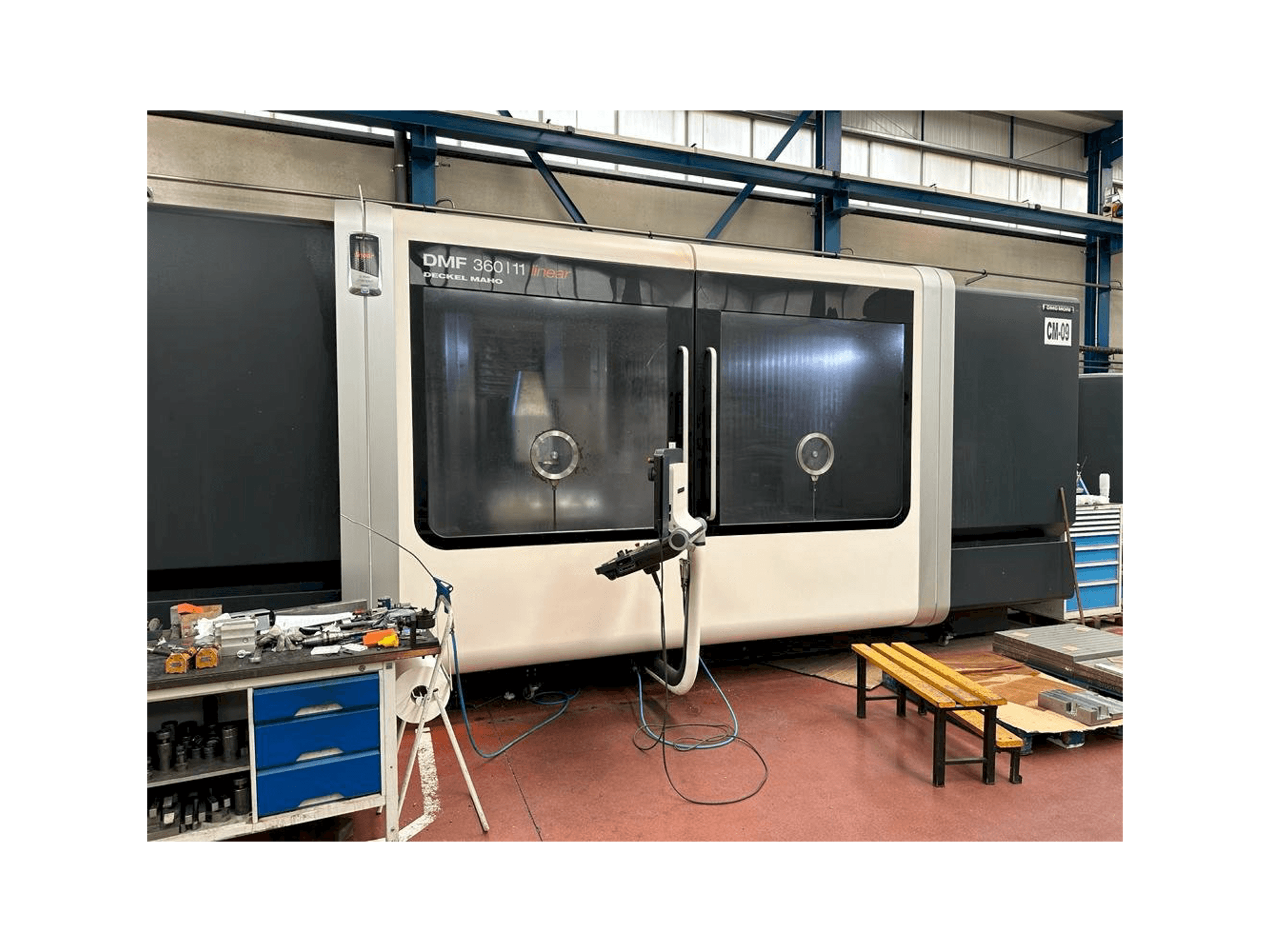

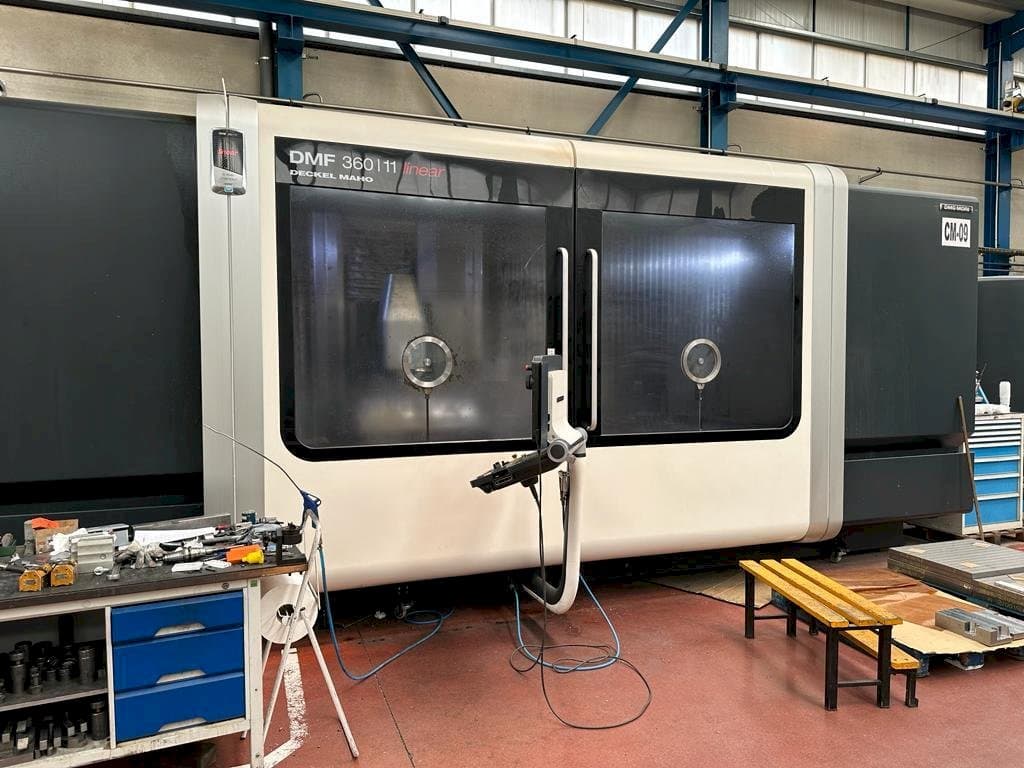

This DMG MORI DMF 360-11 Vertical Machining Center was manufactured in the year 2014 in Germany. It is equipped with a HEIDENHAIN control unit and has 5 axis. The machine has a spindle speed of 18000 rpm

Overview

brand: DMG MORI
year: 2014
MODEL: DMF 360-11
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMF 360-11

General Data

Measurements width: 7941 mm
Measurements depth: 10940 mm
Measurements height: 3042 mm
Machine weight: 30200 kg

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 3600 mm
Y-AXIS Movement: 1100 mm
Z-AXIS Movement: 900 mm

Workpiece

Workpiece weight: 5000 kg

Table

Outer length: 4200 mm
Outer width: 1100 mm

Tools

Slots in storage: 60
Max weight: 12 kg
Max tool diameter: 160 mm
Max tool length: 360 mm
Type of tool holder: BT40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Inner coolant supply 40bar/600l
- - Infrared measuring probe ts 649 dmg
- - Tool laser measuring blum
- - Preparation 3d quickset
Qualitative Machine Benefits:
- - Very good condition
- - Little working hours

Extra information

- the table is not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
