DMG MORI - DMC 1150 VPT-MIL-DMG-2016-00002

Name: DMG MORI DMC 1150 V
Brand: DMG MORI
SKU: PT-MIL-DMG-2016-00002
Price: 73850 GBP
Availability: InStock

£ 73,850

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMC 1150 V For Sale | gindumac.com

Show in original language

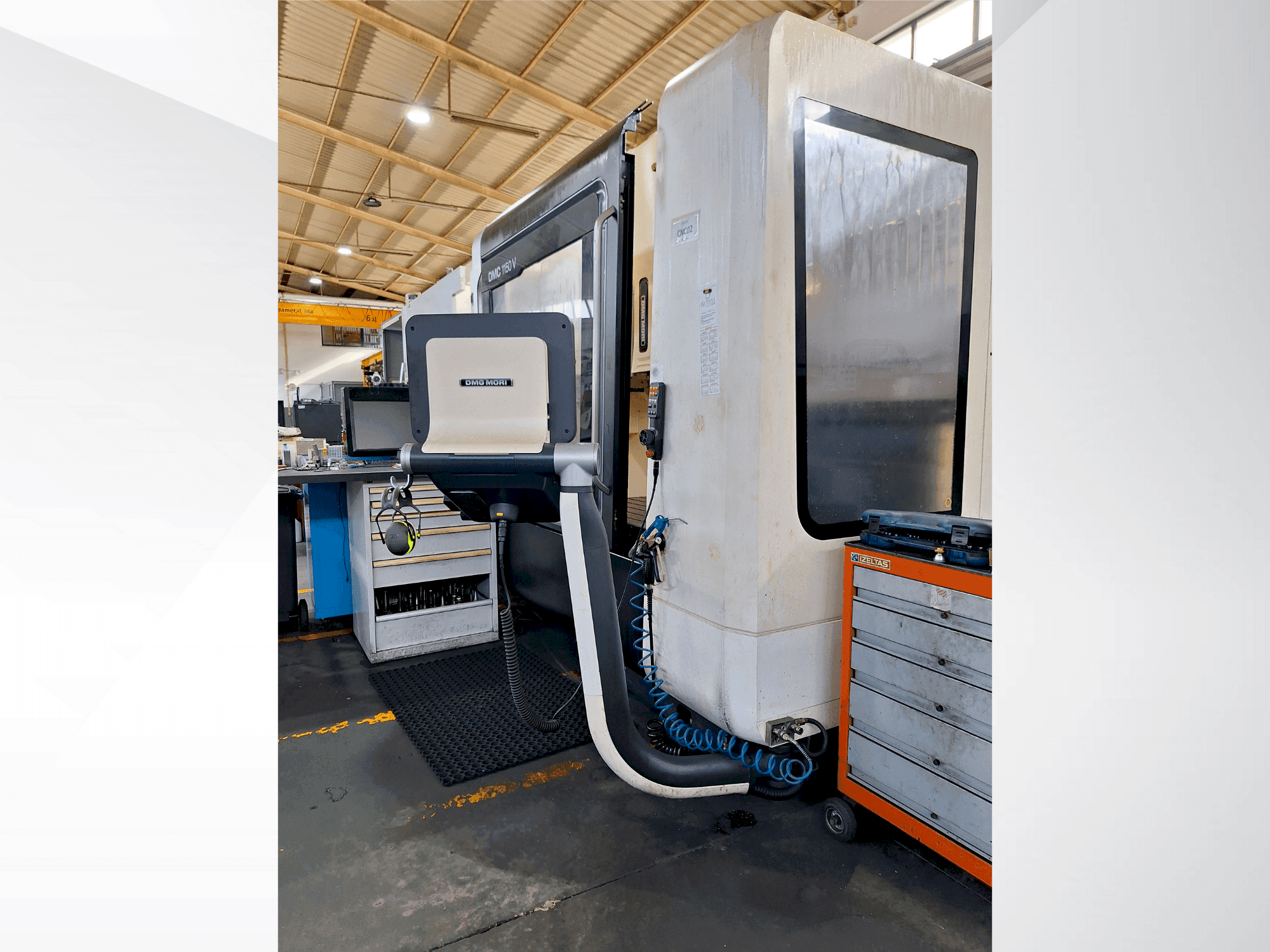

This 3-axis DMG MORI DMC 1150 V was manufactured in 2016. A robust vertical machining center featuring a 1150 mm X-axis, 700 mm Y-axis, and 550 mm Z-axis. It boasts a rapid traverse of 42 m/min and a speed range up to 14,000 rpm. Equipped with a Heidenhain TNC 640 control, 30-position SK40 tool magazine, and a chip extractor system. If you are looking to get high-quality milling capabilities consider the DMG MORI DMC 1150 V machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2016
MODEL: DMC 1150 V
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 1150 V

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Spindle speed range: 20 - 14000 1/MIN
Tool taper: ISO40/SK40 DIN69871
Number of axis: 3

Movement

X-AXIS Movement: 1150 mm
X-AXIS Rapid traverse: 42 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 42 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 42 m/min

Table

Outer length: 1460 mm
Outer width: 750 mm

Additional Equipment

- Infrared touch probe Make: Renishaw PP 60 optical (OMP 60)
- Tool length and diameter measurement
- Automatic cleaning of tool holders using an air jet
- Tool cone calibration equipment
- Safety package for power supply failure
- Overvoltage limiter
- Undervoltage monitoring with rapid braking activation
- Electronic handwheel
- Chip extractor (chip scraper)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Screen size: ergoline® control, 19” screen
- - Tool holder: in accordance with din69872
- - Tool changer positions: 20
- - Tool magazine positions: 30 sk40
- - Tool storage: magazine with positions and double gripper, incl. Manual direct loading
- - Tank capacity: 310 l
- - Discharge height: 950 mm
Qualitative Machine Benefits:
- - Coolant wash in the work area
- - Coolant change area
- - Drill gun for chip removal

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
