DMG MORI CTX2500/1250 Universal Turning Centre

Show in original language

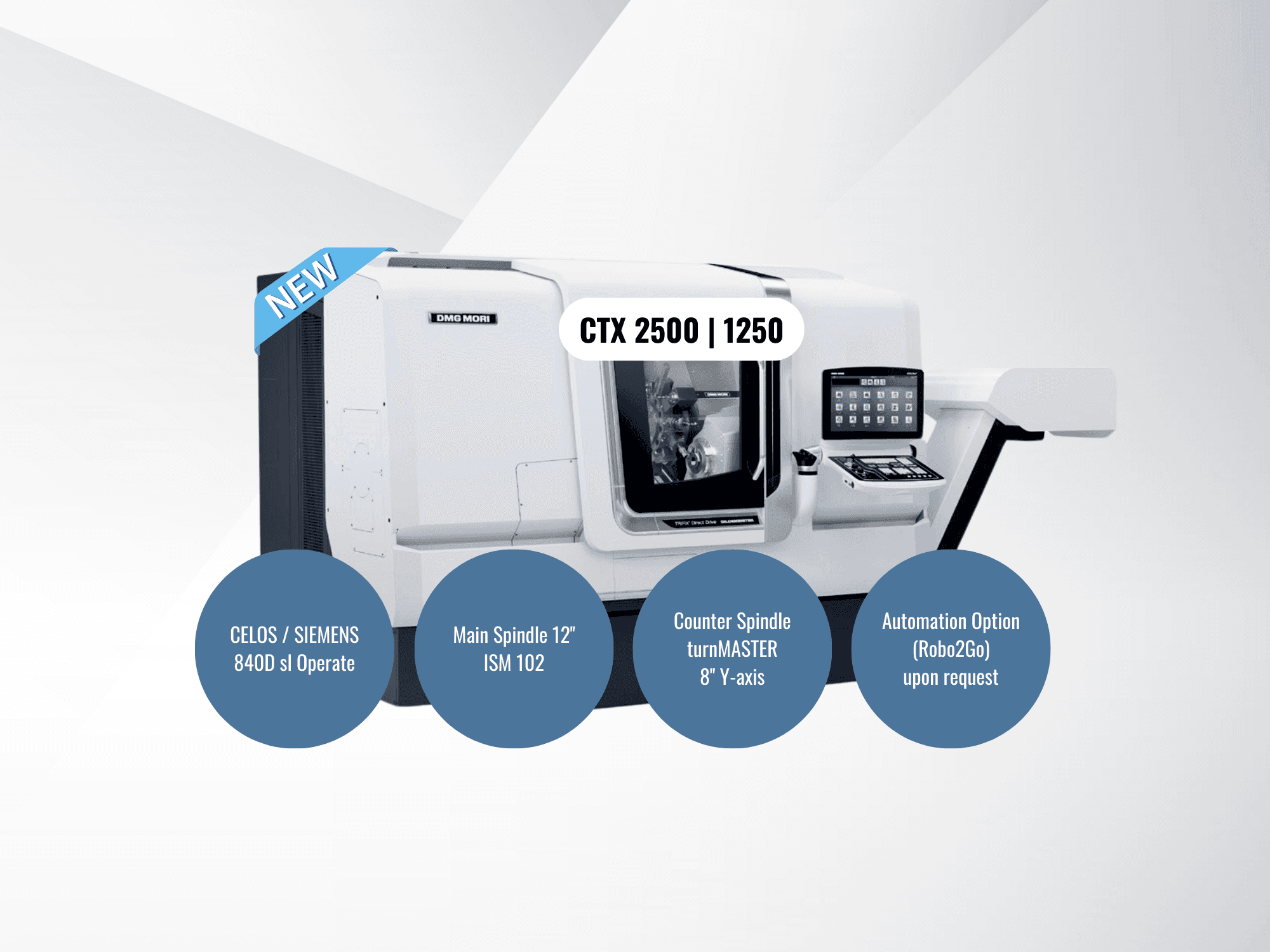

This DMG MORI CTX2500/1250 Universal Turning Centre was manufactured in 2023 and is brand new. It is available immediately in GERMANY and can be delivered right away. The machine comes with a CELOS / SIEMENS 840D sl Operate Control Unit, 12'' ISM 102 main spindle and turnMASTER 8'' Y-axis counter spindle. An automation option Robo2Go can be offered additionally upon request. See original brochure attached as PDF and video impressions of CTX2500 series in the video gallery.

Overview

brand: DMG MORI
year: 2023
MODEL: CTX 2500/1250
production hours: 0
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold

Technical Information - DMG MORI CTX 2500/1250

Control Unit

Model: CELOS (Siemens 840D sl Operate)

Main drive

Tool taper: VDI40
Number of axis: 5

Media

Oil water separator: Yes
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Chip conveyor hinged type
- BFU 8/80 bar frequency controlled 980l cooler
- Mechanical oil mist extractor 1100m³/h
- Tool measuring device for main spindle manuel, diameter 400 // Measuring System for Y-axis & for Z-axis
- Signal lamp 4-fold coloured
- proTIME
- Enlarged container for sideway oil 6l
- Fixing elements
- Lubricating unit with electric level monitoring
- Tool holder package Quickchange VDI40, star, WTO

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Main spindle 12 inch ism 102 // counter spindle turnmaster 8 inch y-axis
- - Dynamic two-pressure clamp, at the control main spindle & counter spindle
- - 3-jaw chuck kncs-n 400-128 make smvv // set base jaws 3 pieces 0 250/260 // set base jaws 3 pieces 9 400 // 3-jaw chuck kncs-n 225-68 make smvv
- - Tailstock function for counter spindle
- - Steady rest slide automatically positionable // quick change system for steady rest // steady rest carrier for steady rest 25-180mm // steady rest smvv k2 clamping range 25-180 mm
- - Double cartridge filter upper turret // filter element for double cartridge liner
- - Coolant supply through the main spindle & counter spindle // coolant/compressed air switchable on spindle(s) & on tool carrier // coolant spray gun
- - Minimess test point couplings for hydraulic - hydraulic filter with monitoring and pre warning - hydraulic oil ievel and temperature monitoring

Extra information

- Window rinsing or the security windows - Automatic door electrical // Electrical interface for Robo2Go // Package for tropical climate // Package for instable supply // Measure mm // Additional 8 free M-commands // Easy Tool Monitor 2.0 // DXF Reader for Siemens // Excentric turning and milling operation // Tooth system milling via gear hobbing // Alternating speed // Polygon Turning // Multi-thread cycle 2.0 // Broaching // Y-Axis Parting // autoCHUCK

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
