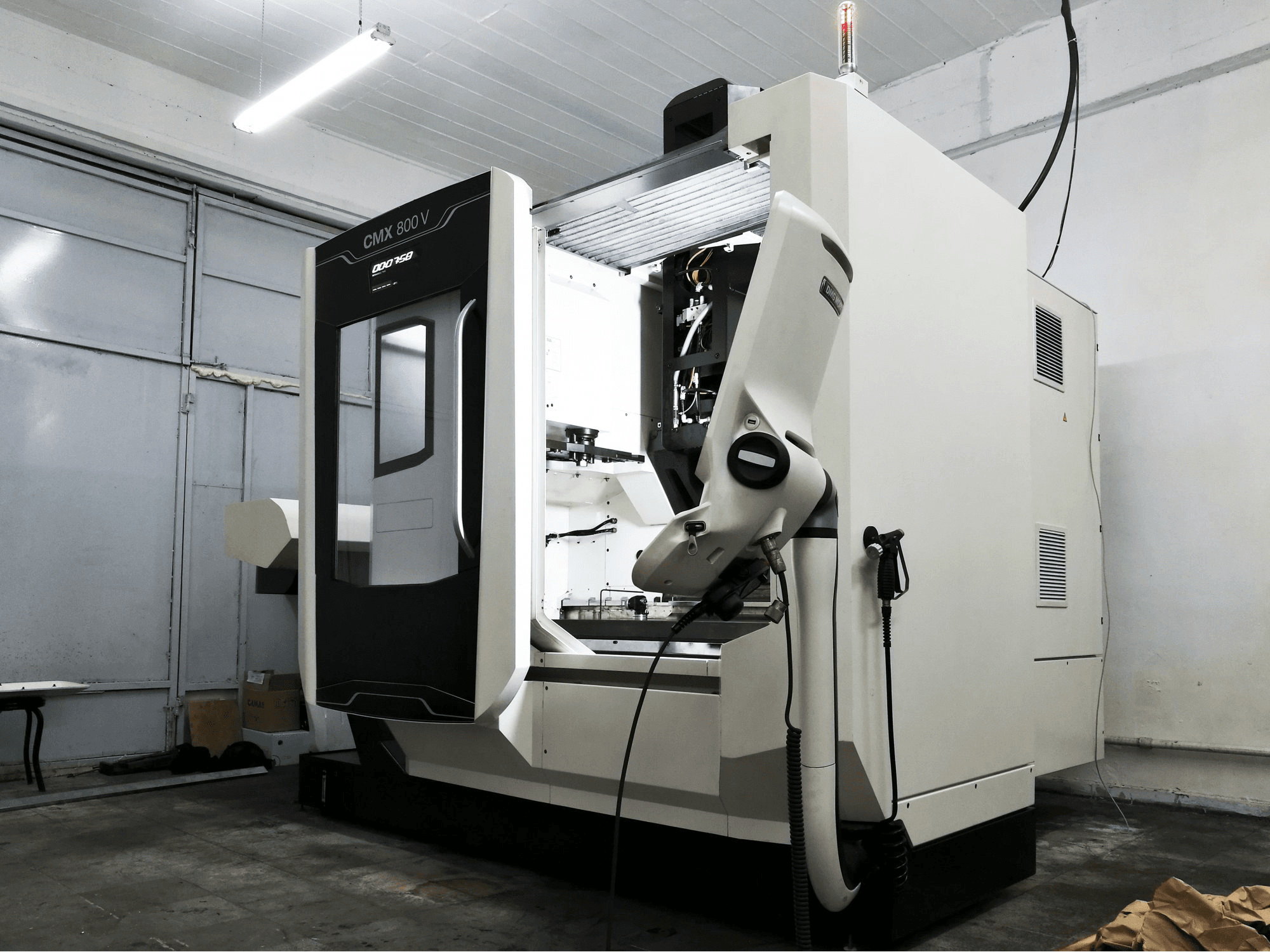

DMG MORI CMX 800 V Machining Center

Show in original language

This DMG MORI CMX 800 V Machining Center from 2016 is a nearly new machine, with a production record of only 230 hours. Operated through a SIEMENS SINUMERIK 840D sl Control unit (with RJ-45 interface), the equipment stands out for its perfect condition. As additional equipment, a Renishaw Measurement system is included.

Overview

brand: DMG MORI
year: 2016
MODEL: CMX 800 V
production hours: 230
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI CMX 800 V

General Data

Measurements width: 3395 mm
Measurements depth: 2747 mm
Measurements height: 2937 mm
Machine weight: 5450 kg

Control Unit

Model: SINUMERIK 840D sl
Interface: RJ-45, USB
Remote control: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 0-12000 1/min
Spindle motor power: 13 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 800 mm
X-AXIS Working Feed: 1-30000 mm/min
X-AXIS Feed Force: 5 kN
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Working Feed: 1-30000 mm/min
Y-AXIS Feed Force: 5 kN
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 510 mm
Z-AXIS Working Feed: 1-30000 mm/min
Z-AXIS Feed Force: 5 kN
Z-AXIS Rapid traverse: 30 m/min

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 1100 mm
Outer width: 560 mm
TSlots size: 18 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 80/125 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V / 50Hz
Power consumption: 32 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Renishaw Measurement system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
