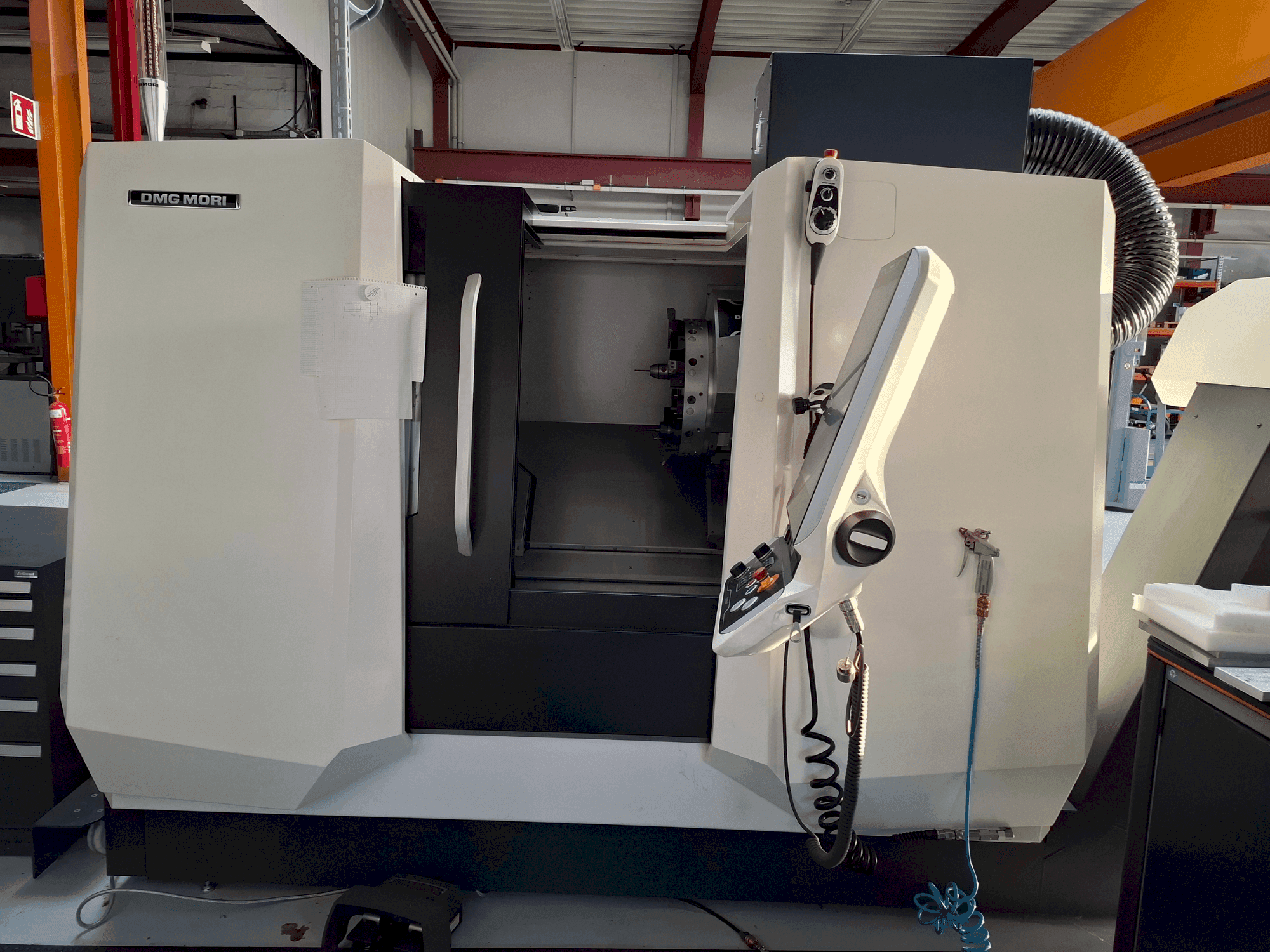

DMG MORI - CLX 350 V3DE-TUR-DMG-2019-00004

Additional Equipment

• - Tank Capacity: 17 liters / Pump Pressure: 55 bar / Maximum Pump Flow Rate: 18 l/min
• - Pneumatics: Air Consumption: 15 m³/h/ Air Pressure: 6 + 20% bar/ Air Humidity at 20°C: 20 to 75%
• - Hollow Clamping Device (Main Spindle): Clamping Cylinder Speed: 5000 rpm/ Piston Stroke: 29 mm / Pulling Force (P): 45 kN (min) / Pressing Force (F): 68 kN (max)/ Max Pressure: 68 bar (max)
• - Oil/Emulsion Mist Separation: Length: 778 mm / Width: 400 mm / Height: 520 mm /Weight: 50 kg / Air Flow: 600 m³/h / Motor Power: 0.5 kW /After-Run Time (after shutdown): approx. 1 min

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Spindle mount (flange): type a2-6, type a2-5 / chuck diameter: 210/250 mm, 170 mm / bar capacity: 65 mm, 36 mm / spindle bore diameter: 73 mm, 45 mm / front bearing diameter: 120 mm, 90 mm /
  • - Maximum spindle power (100% duty cycle): 11 kw, 12. 6 kw / maximum spindle power (40% duty cycle): 16. 5 kw, 16. 2 kw / maximum spindle speed (100% & 40% duty cycle): 5000 rpm / maximum torque (100% duty cycle): 112 nm, 48 nm / maximum torque (40% duty cycle): 168 nm, 62 nm / voltage type/range: ac/1
  • - Ball screw drive x/y/z axis (dxp): 32 x 10 mm / feed force x/y/z (100% duty cycle): 3. 5/3. 5/6 kn / feed force x/y/z (40% duty cycle): 4. 5/4. 5/7. 5 kn / rapid traverse x/y/z: 30/22. 5/36 m/min / torque: 20 nm
  • - Positioning accuracy: p (x): 0. 005 mm /p (z): 0. 008 mm /p (y): 0. 005 mm/ position tolerance c: 30 mgrad
  • - Axis distance: 715 mm / center height: 345 mm / maximum swing over bed: 580 mm / swing over x-slide: 360 mm / maximum turning diameter: 320 mm / chuck diameter: 210/250 mm / travel x: 242. 5 mm /travel z: 540 mm
  • - Machine (max height): 1852 mm / machine with signal light (height): 2208 mm / width: 1767 mm / with control (min width): 1928 mm / with control (max width): 2271 mm / length with chip conveyor: 3700 mm / installation area (lxw): 4885 x 4837 mm
  • - Height: 1624 mm / width: 855 mm / length: 3588 mm / weight: 500 kg / discharge height: 950 mm / coolant capacity: 170 liters / pump power: 0. 85 kw / pump flow rate: 20 l/min / pump pressure: 5 bar / chip conveyor performance: 150 kg/h / max. Chip length: 130 mm / max. Chip bundle diameter: 50 mm
  • - Number of driven tools: 12 / tool mounting: vdi 30 axial / coupling for driven tools: vdi 16 x 0. 8 din 5480 / tool axis: 20 x 20 mm /maximum speed of driven tools: 5500 rpm /maximum power s1 (100% duty cycle): 3. 30 kw / maximum power s3 (40% duty cycle): 5. 44 kw / maximum torque, 100% duty cycle: 15 nm / maximum torque, 40% duty cycle: 20 nm
  • - Travel: 550 mm /maximum clamping force: 4000 n /sleeve mounting: mk 4/ tailstock movement: hydraulic/ tailstock positioning: ±6 mm
