DMG GILDEMEISTER CTX beta 1250 TC

Show in original language

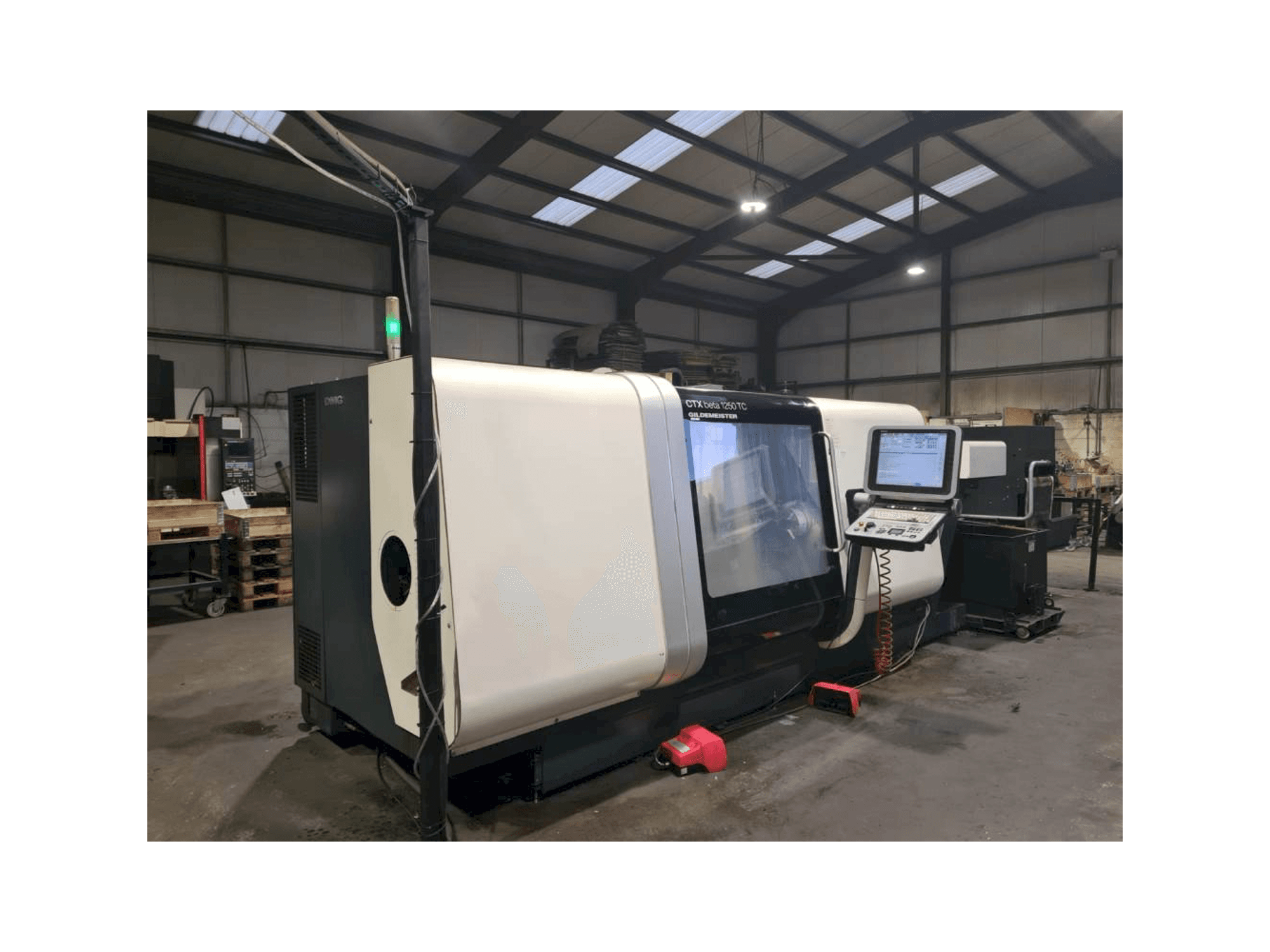

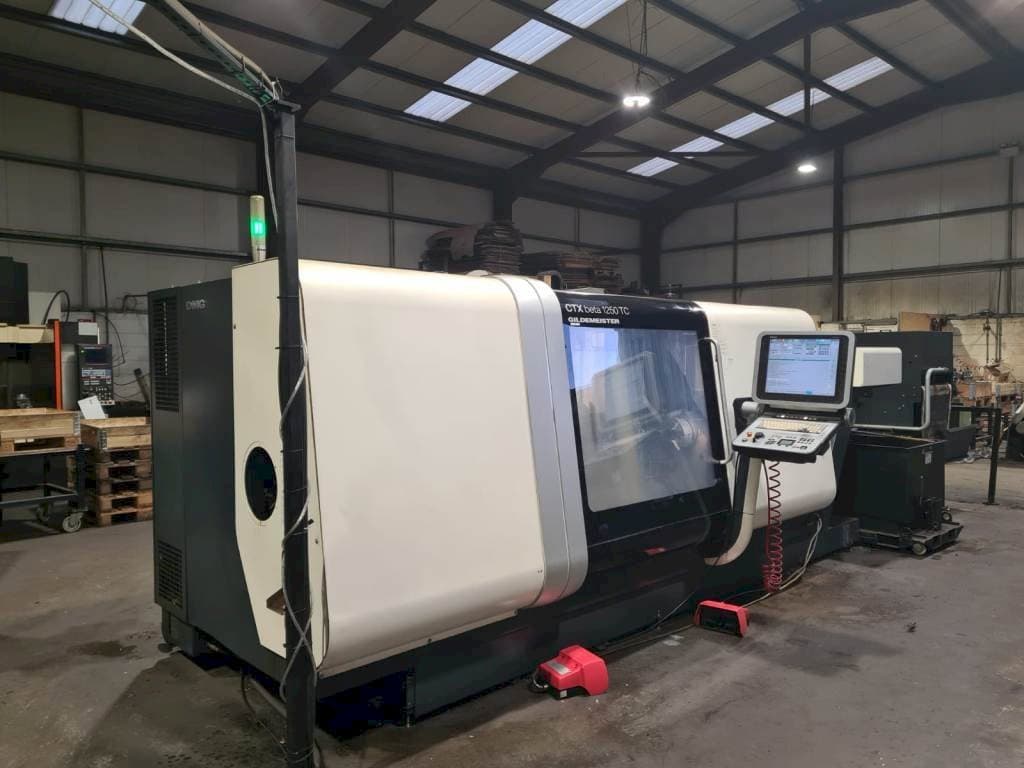

This DMG CTX beta 1250 TC Lathe was built in the year 2010 in Italy. The machine has approximately 13000 spindle hours. This 7 axis machine works through a Heidenhain CNC Pilot 4290 control unit. It performs with a spindle speed up to 12000 rpm. This machine has mainly been used to produce machine parts and is found in excellent condition.

Overview

brand: DMG
year: 2010
MODEL: CTX beta 1250 TC
production hours: 13000
application type: Turning
Location: Ireland
machine type: Turn-Mill Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DMG CTX beta 1250 TC

General Data

Measurements width: 7000 mm
Measurements depth: 3500 mm
Measurements height: 2500 mm
Machine weight: 8000 kg

Control Unit

Model: CNC Pilot 4290
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 3
Spindle speed range: 12000 1/MIN
Number of axis: 7

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 200 mm
Z-AXIS Movement: 1425 mm
B-AXIS Movement: 220 mm

Workpiece

Workpiece drm over bed: 390 mm
Workpiece z: 1250 mm

Tools

Slots in storage: 24
Type of tool holder: HSK63

Media

Main electronic connection: 400 V 50 Hz
Power consumption: 70 kVA
Chip conveyor: Yes

Additional Equipment

- Laser Tool Measurement
- Part Probing
- Selection of HSK63a Tooling
- 12" SMW Hydraulic Chuck
- 8" SMW Hydraulic Chuck
- Coolant Filtering System

Additional Information

Machine history

Material type: Mild steel
End product: Machined parts

Machine Benefits

Technical Machine Benefits:
- - 7 controlled axes (x,z1,z3,y,c1,c2,b)
- - Multi tasking turning/milling center
- - Format: spindle 1, spindle 2, milling spindle, 24 tool atc
- - Atc for milling spindle: 24 station
- - Main spindle & sub spindle - 5000rpm
- - Max bar capacity: 67mm
- - C-axis: 360 deg ; full c axis on main & sub spindle
- - 5 axis simultaneous machining
Qualitative Machine Benefits:
- - Machine in excellent condition
- - Only 13000 spindle on hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
