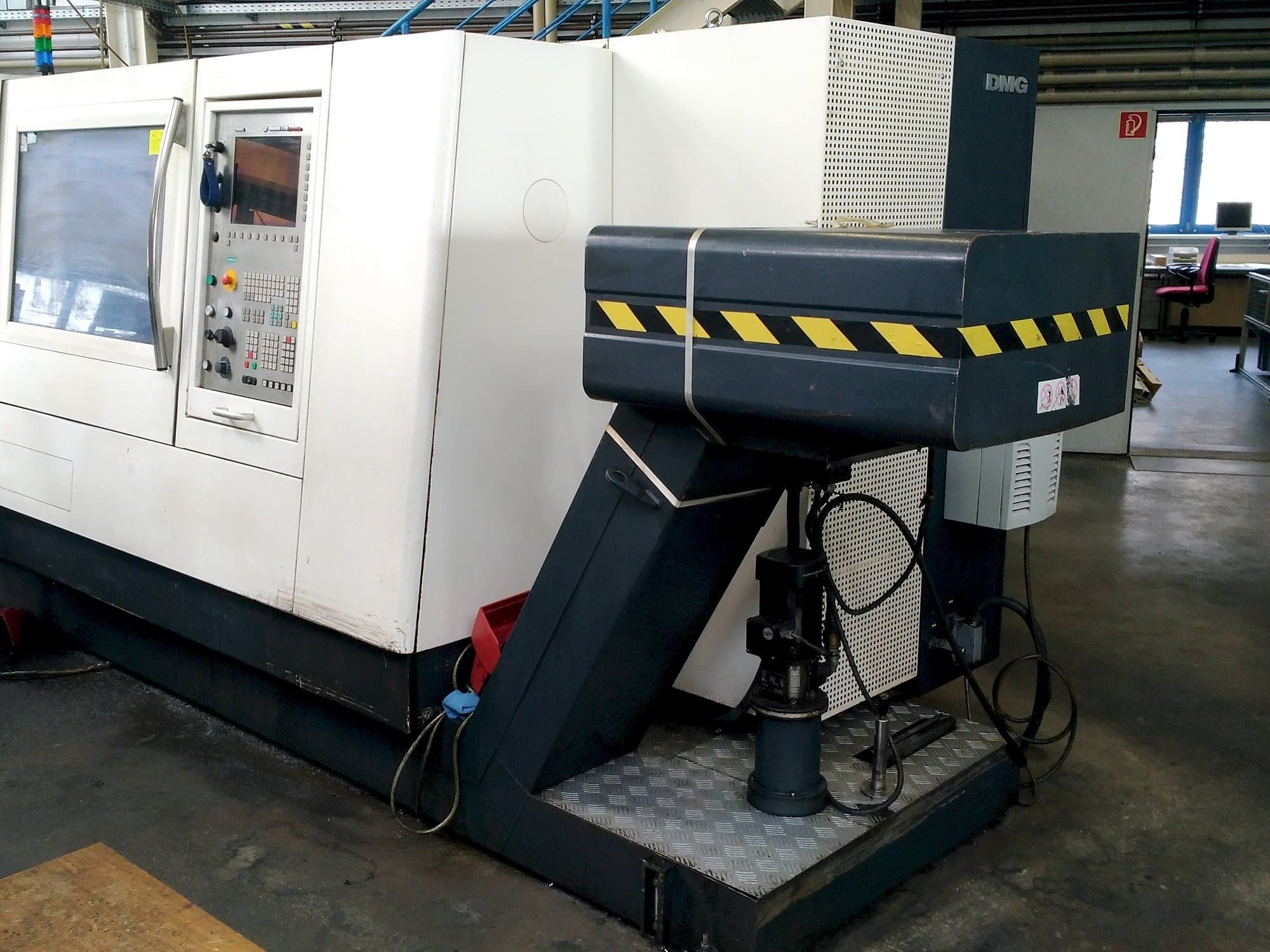

Gildemeister DMG CTX 510 eco lathe

Show in original language

This DMG CTX 510 eco lathe machine was manufactured in 2008 in China. The machine has 45263 working hours. It is operated through a Siemens 810D powerline control unit. This 2 axis machine has a spindle range of 500 - 3250 rpm.

Overview

brand: DMG
year: 2008
MODEL: CTX 510 eco
production hours: 45263
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG CTX 510 eco

General Data

Measurements width: 5080 mm
Measurements depth: 1855 mm
Measurements height: 1930 mm
Machine weight: 7500 kg

Control Unit

Model: 810D powerline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 500 - 3250 1/MIN
Spindle bore: 102,5 mm
Number of axis: 2

Movement

X-AXIS Movement: 300 mm
Z-AXIS Movement: 1050 mm

Media

Main electronic connection: 400 V - 50/60 Hz
Power consumption: 50 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Chuck diameter: 250 mm
- - Spindle nose: fl 220 h5
- - Nominal torque (s1): 420/500 nm
- - Maximum turning diameter: 465 mm
- - Maximum turning length: 1000 mm
- - Maximum mass between center: 350 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
