➤ Used DEMAG IntetElect 80/370-310 For Sale | gindumac.com

Show in original language

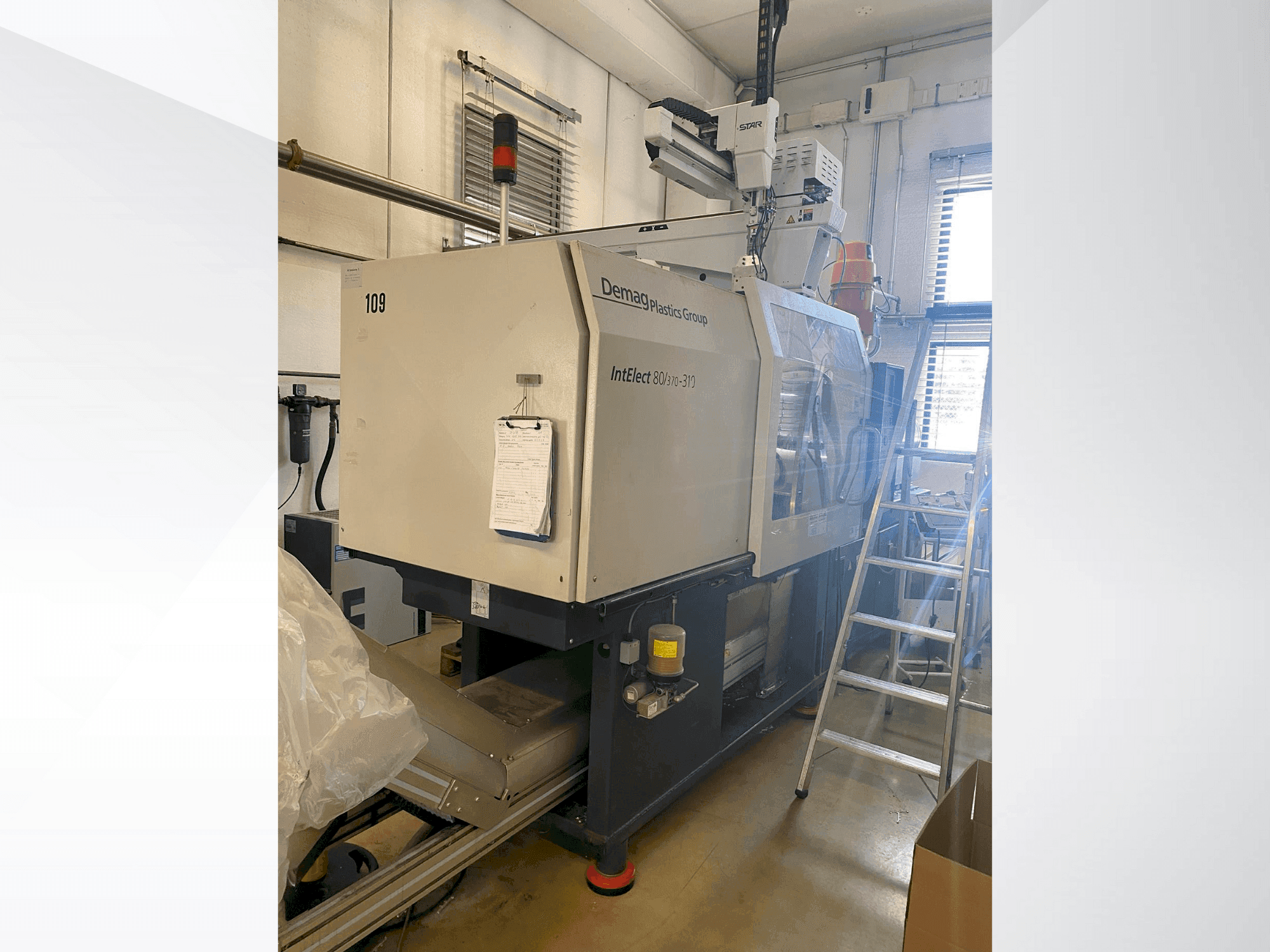

This DEMAG IntetElect 80/370-310 was manufactured in 2008. A robust hydraulic injection moulding machine, it features a clamping force of 800 kN and a screw diameter of 35 mm. It supports a maximum shot volume of 155 cm³ and a shot weight of 138 g. Dimensions are 4250 mm in length, 1276 mm in width, and 1922 mm in height. Consider the DEMAG IntetElect 80/370-310 machine we have for sale. Contact us for further details regarding this hydraulic injection moulding machine.

Overview

brand: DEMAG
year: 2008
MODEL: IntetElect 80/370-310
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Immediately

Technical Information - DEMAG IntetElect 80/370-310

General Data

Measurements width: 1276 mm
Measurements depth: 4250 mm
Measurements height: 1922 mm
Machine weight: 4750 kg

Injection Unit

Screw diameter: 35 mm
Shot weight: 138 g
Stroke volume: 155 cm³
Injection pressure: 2150 bar
Heating capacity: 9.4 kW
Nozzle pressure: 30 kN

Clamping unit

Clamping force: 800 kN
Opening stroke: 340 mm
Distance between bars: 370 x 370 mm
Mould height min: 150 mm
Mould height max: 410 mm
Size of mold platens: 600 x 590 mm
Ejector stroke: 90 mm
Ejector force for / back: 25 kN

Additional Information

Extra information

- Clamping unit: Holding force: 880 kN Maximum mold weight: 700 kg Maximum mold weight on moving platen: 450 kg Maximum retraction force: 25 kN Dry cycle stroke: 1.6 – 259 s/mm Core pull: 0 units Injection unit: Screw L/D ratio: 20 Maximum nozzle stroke: 250 mm Nozzle immersion depth (SVO): 20 mm Material hopper capacity: 35 liters

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
