DEMAG ERGOTECH 4200-2300 Injection Moulding Machine

Show in original language

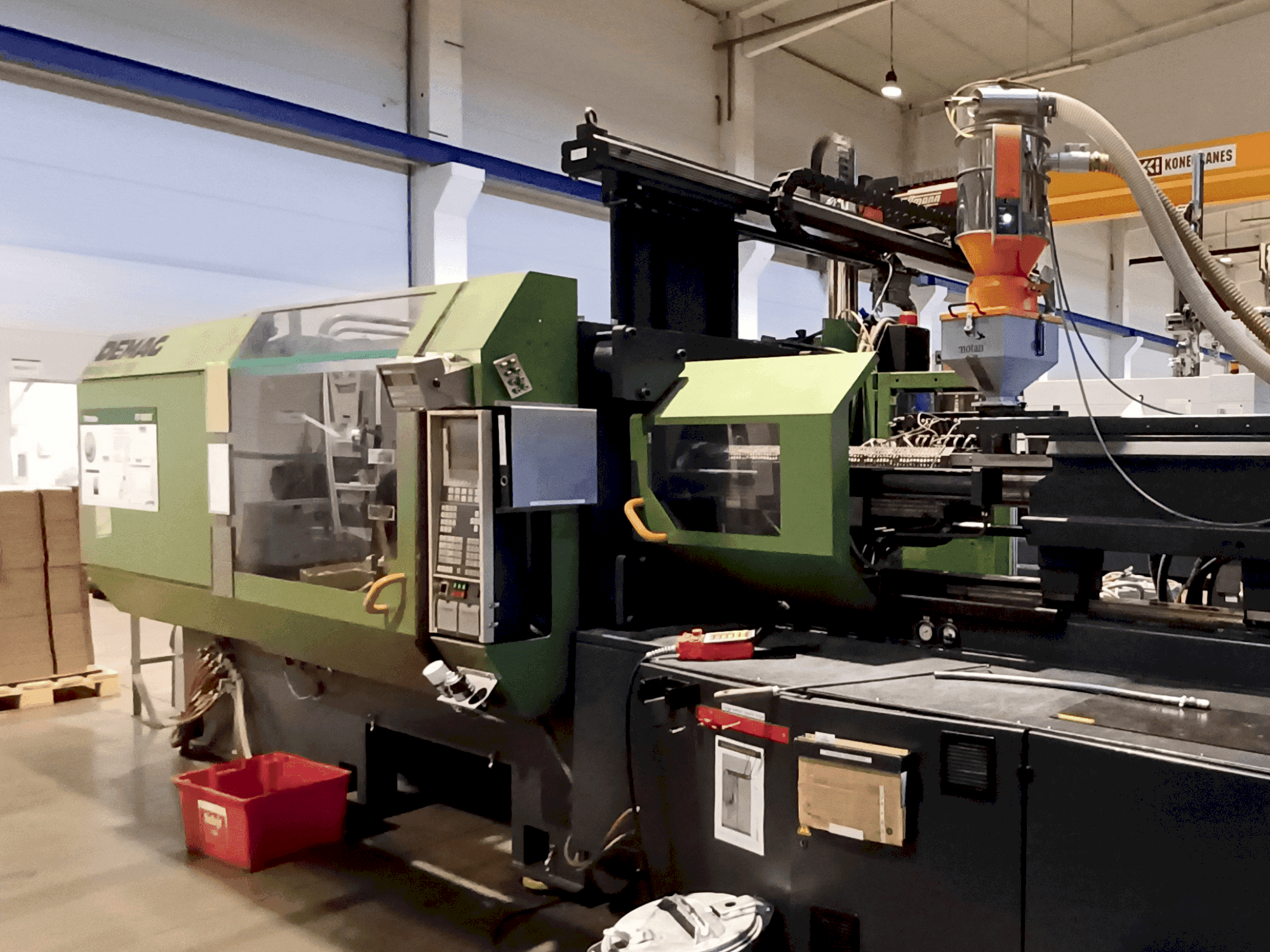

This DEMAG ERGOTECH 4200-2300 Injection Moulding Machine was built in the year 1995 and has 25000 production hours. It is equipped with a Wittmann handling. The machine has a clamping force of 4200 kN and a screw diameter of 70 mm. It comes with 2 core pullers.

Overview

brand: DEMAG
year: 1995
MODEL: ERGOTECH 4200-2300
production hours: 25000
application type: Injection Moulding
Location: Hungary
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - DEMAG ERGOTECH 4200-2300

General Data

Machine weight: 5100 kg

Injection Unit

Screw diameter: 70 mm
Shot weight: 1090 g (PS)
Stroke volume: 1212 ccm CM³
Injection pressure: 1877 bar
Plasticizing rate max.: 59 g/s
Screw speed: 182 rpm
Heating capacity: 45 kW (Pump), 27 kW (installed heating)

Clamping unit

Clamping force: 4200 kN
Opening stroke: 710 mm
Max open daylight: 800 mm
Distance between bars: 1530 mm
Mould height min: 380 mm
Mould height max: 820 mm
Size of mold platens: 1200 x 1100 mm

Additional Equipment

- Wittmann Handling W322-310 CNC (X = 800 mm / Y = 1600 mm / Z = 2500 mm)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Closing nozzle (hydr. /pneum. ): 2/1
- - Core pull control, 2 core pulls (as)
- - Tool weight: ds (kg) 1700 // as (kg) 3400
- - L/d ratio: 20
- - Nozzle radius (mm): 15
- - Nozzle bore (mm): 4
- - Injection flow ps (g): 330
- - Dosing max. (mm): 620
- - Centring ring ds160, as200

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
