DECKEL MAHO MH 800 C Universal Machining Center

Show in original language

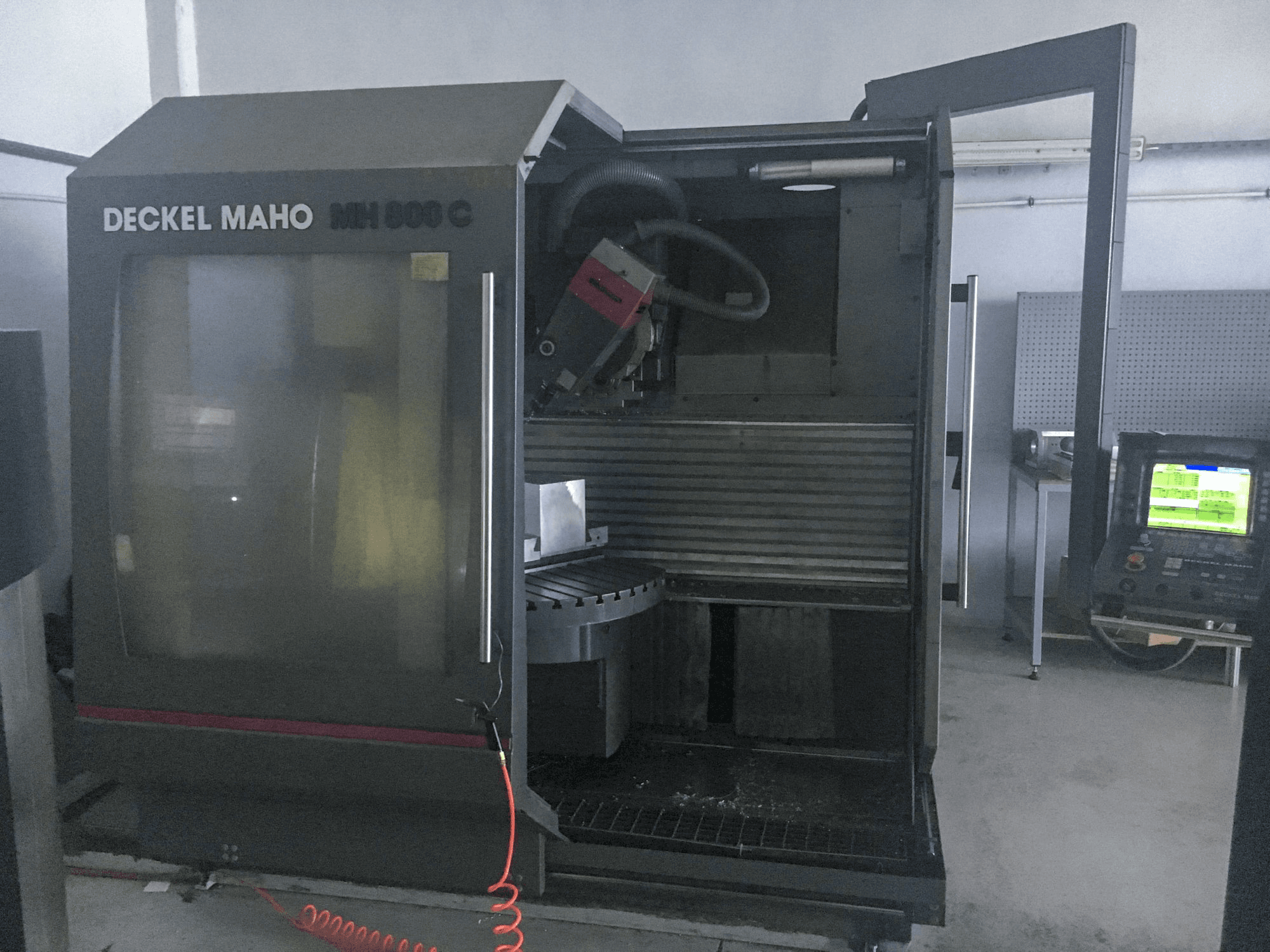

This DECKEL MAHO MH 800 C Universal Machining Center was manufactured in 1996 in Germany and counts a total of 29950 production hours. Operated through a DECKEL MAHO CNC 532 Control unit, this model stands out for its ability of 5 axis simultaneous operation and is very suitable for complex tool and die machining. During the past, this machine has mainly worked with steel and aluminium and comes with an additional chip conveyer.

Overview

brand: DECKEL MAHO
year: 1996
MODEL: MH 800 C
production hours: 29950
application type: Milling
Location: Turkey
machine type: Universal Machining Centre
availability: Sold

Technical Information - DECKEL MAHO MH 800 C

General Data

Measurements width: 3400 mm
Measurements depth: 3400 mm
Measurements height: 2589 mm
Machine weight: 6200 kg

Control Unit

Model: CNC 532

Main drive

Number of spindles: 1
Spindle speed range: 6300 1/min

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 500 mm
Z-AXIS Movement: 600 mm
B-AXIS Movement: 360° mm
C-AXIS Movement: +/-60° mm

Workpiece

Workpiece weight: 700 kg

Table

Outer length: 600 mm
Outer width: 900 mm

Tools

Max weight: 10 kg
Max tool diameter: 80-130 mm
Max tool length: 315 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 38 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Chip Conveyer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
