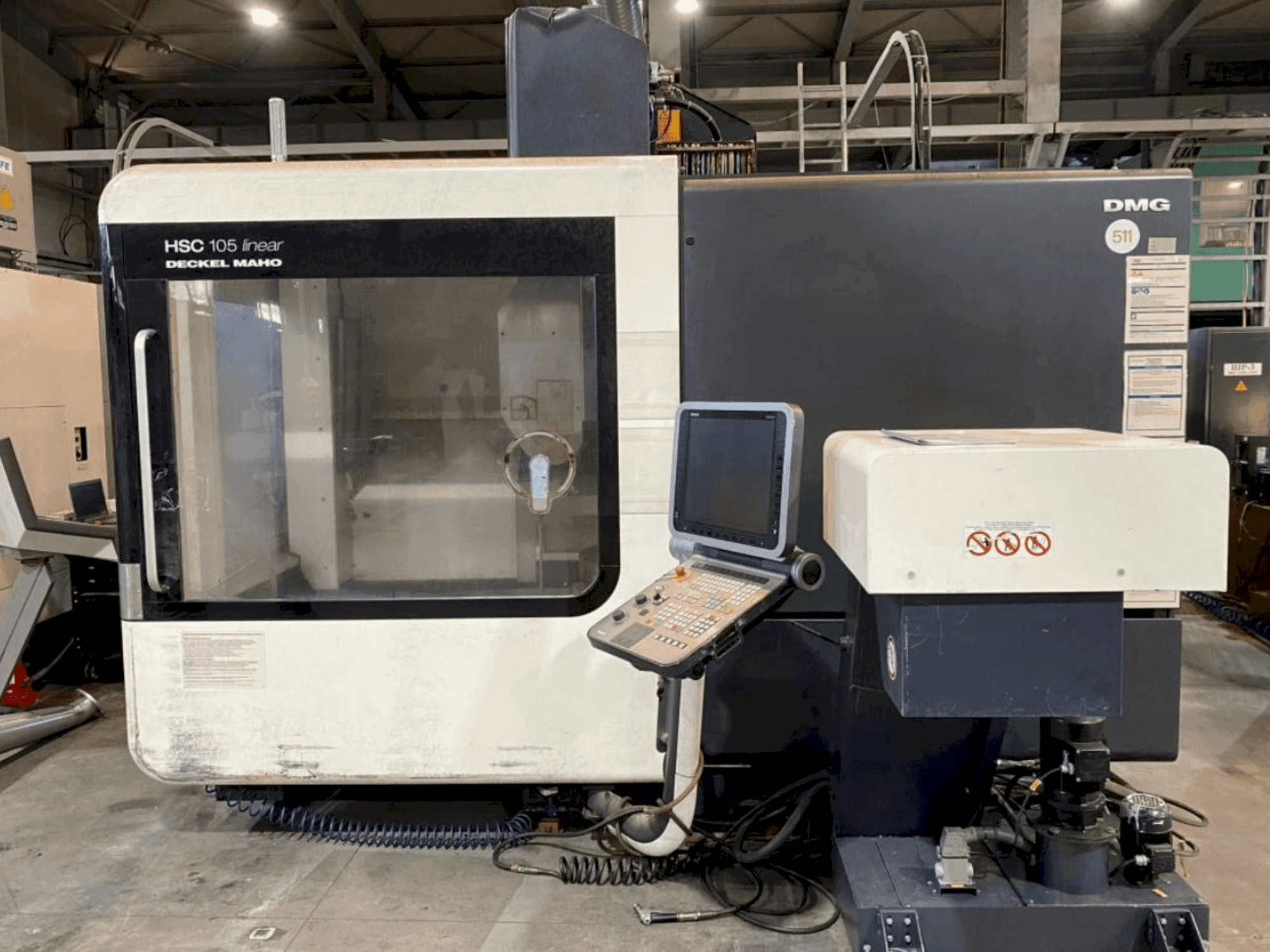

This 5-axis DECKEL MAHO HSC 105 Linear was manufactured in 2008. A vertical machining centre featuring 3D-Control Heidenhain iTNC 530, DMG ERGOline Control with a 19" display, and digital controlled AC-Motor spindle. It supports a spindle speed range of 20-18,000 rpm and a spindle taper HSK-A63 DIN 69893. Ideal for complex geometries, the machine we have for sale offers precision and versatility. For more information about this vertical machining centre, please reach out to us.

Overview

brand: DECKEL MAHO
year: 2008
MODEL: HSC 105 Linear
application type: Milling
Location: Moldova
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO HSC 105 Linear

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 18000 rpm 1/MIN
Spindle motor power: 41 kW / 30 kW
Tool taper: HSK-A63 DIN 69893
Number of axis: 5

Movement

X-AXIS Movement: 450 mm
Y-AXIS Movement: 580 mm
Z-AXIS Movement: 400 mm

Workpiece

Workpiece drm: 450 mm
Workpiece weight: 200 kg

Additional Equipment

- 3D-Control Heidenhain iTNC 530
- Operator screen SmarT.NC DMG ERGOline Control, 19" display
- Electronic handwheel
- Ethernet Data lines and adapter
- Application Tuning Cycle ATC-Software selection of the optimal milling mode for the current machining
- Maximum workpiece height: 350 mm
- C-Axis: 360 degrees Rotation Range (110 rpm)
- A-Axis: +10/-110 degrees Til

Additional Information

Extra information

- Machine still under power
