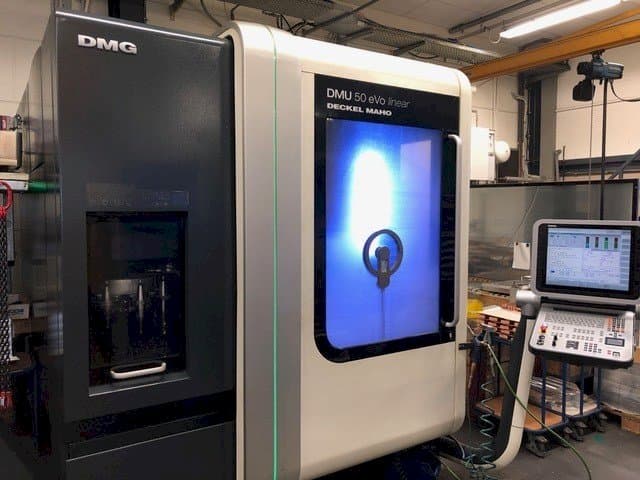

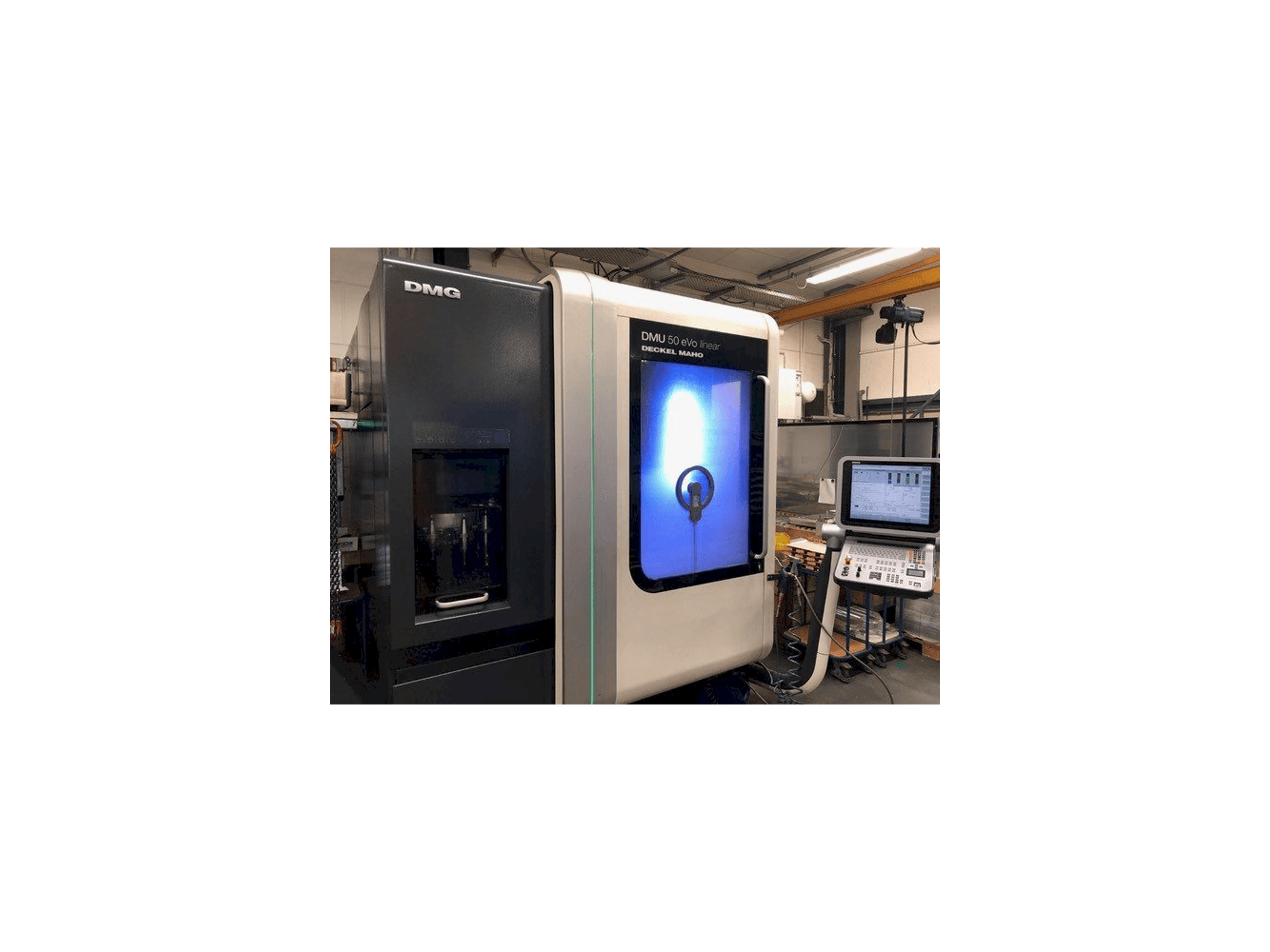

DECKEL MAHO DMU 50 eVo Linear Universal Machining Center

Show in original language

This DECKEL MAHO DMU 50 eVo Linear Universal Machining Center was built in Germany in 2008 and has been working for 48632 hours, from which 21092 are running hours. Operated through a HEIDENHAIN iTNC 530 Control unit, this machine can work with a spindle speed up to 18000 rpm with 5 simultaneous axis.

Overview

brand: DECKEL MAHO
year: 2008
MODEL: DMU 50 eVo Linear
production hours: 48632
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - DECKEL MAHO DMU 50 eVo Linear

Control Unit

Model: iTNC 530
Brand: HEIDENHAIN

Main drive

Spindle speed range: 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 500 mm
X-AXIS Working Feed: 80 m/min
Y-AXIS Movement: 450 mm
Y-AXIS Working Feed: 50 m/min
Z-AXIS Movement: 400 mm
Z-AXIS Working Feed: 50 m/min

Table

Outer length: 500 mm
Outer width: 380 mm
Number of tslots: 60
Table load: 200 kg

Media

Internal cooling: Yes

Additional Equipment

- filter for internal cooling
- chip conveyor
- electronic handwheel
- Measuring probe included

Additional Information

Machine history

Material type: Aluminium, copper

Machine Benefits

Technical Machine Benefits:
- - Spindle taper sk 40
- - Cooling lubricant cleaning system 600 litres
- - 120 tool places
Qualitative Machine Benefits:
- - Regular 2000h maintenance with exchange of the rotary unit
- - Service reports available
- - Side disk renewed

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
