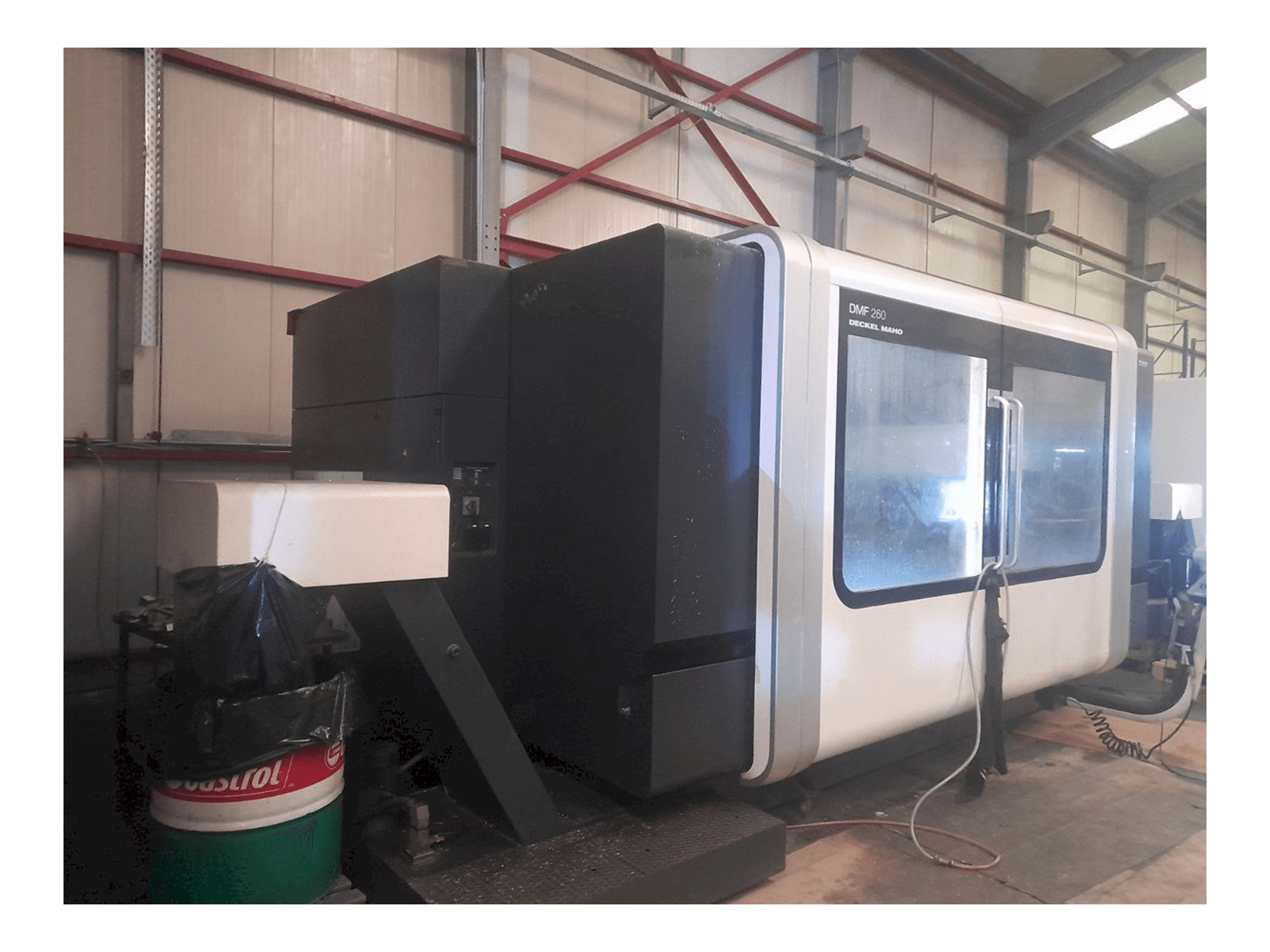

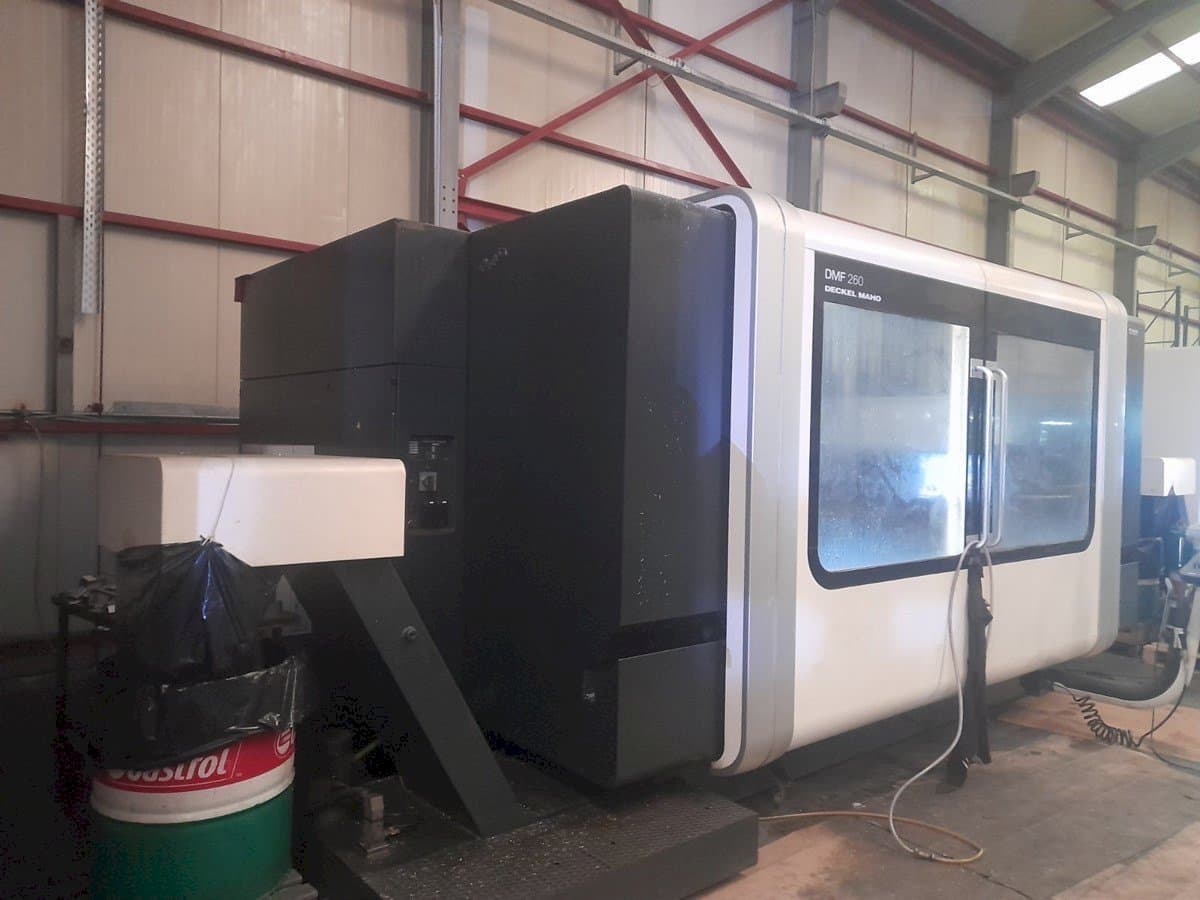

DECKEL MAHO DMF 260 Vertical Machine Center

Show in original language

This DECKEL MAHO DMF 260 Vertical Machine Center was built in Germany in the year 2010 and has 29271 hours, of which 14211 are spindle hours. It is equipped with a 3D-control Siemens 840D solution line operation mode ShopMill Open ERGOline® Control, a 19" display, and has 3 axis. The machine has a spindle speed of 20 - 8000 rpm.

Overview

brand: DECKEL MAHO
year: 2010
MODEL: DMF 260
production hours: 29271
application type: Milling
Location: Greece
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMF 260

Control Unit

Model: 840D
Brand: SIEMENS

Main drive

Spindle speed range: 20 - 8000 1/MIN
Spindle motor power: 23.5/13.5 kW
Tool taper: SK40 DIN 69871
Number of axis: 3

Movement

X-AXIS Movement: 2600 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 700 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid move 40 m/min
- - Acceleration 4 m/s2
- - Tool clamping according to din 69872
- - Magazine for 30 tools (chain with double gripper)
- - Chip-to-chip time 7,6 s
- - Rigid table 2,900 x 700 mm
- - Full-protective cabin, coolant tank
- - Direct measuring systems
- - Swarf conveyor (scraper conveyor) discharge height 950 mm
- - Stop block hsk-a63/sk40/cat40
Qualitative Machine Benefits:
- - Air purge for linear measuring systems x,y,z

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
