DECKEL MAHO DMC 60H hi-dyn

Show in original language

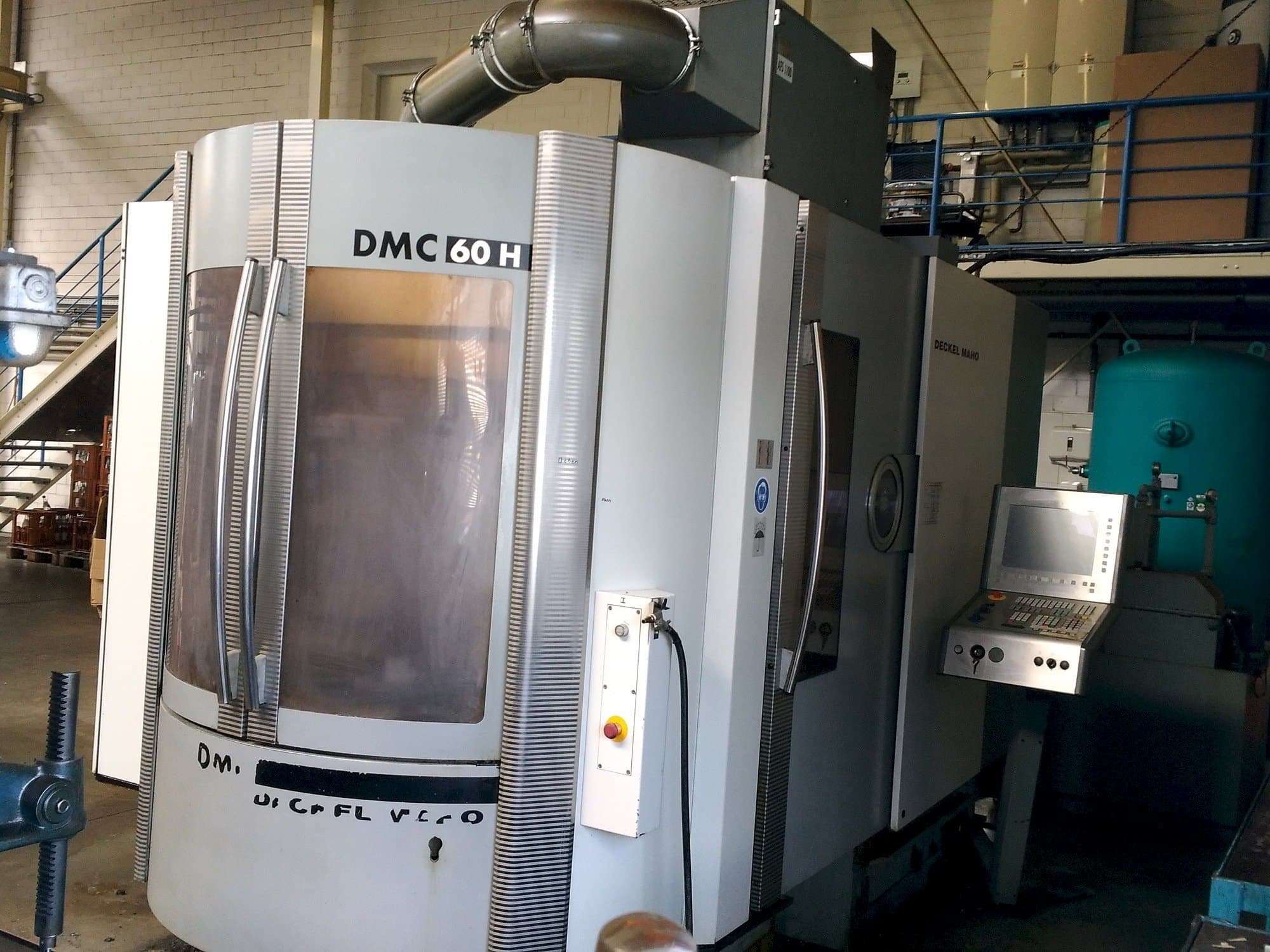

This DECKEL MAHO DMC 60H hi-dyn Universal Machining Center was manufactured in Germany in the year 2004. It has a record of 58156 hours, of which 30911 are operating hours. This 4 axis machine is equipped with a SIEMENS SINUMERIK 840D powerline control Unit. It performs with a spindle speed range 0 - 15000 rpm. This machine includes several spare parts.

Overview

brand: DECKEL MAHO
year: 2004
MODEL: DMC 60H hi-dyn
production hours: 58156
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DECKEL MAHO DMC 60H hi-dyn

General Data

Measurements width: 4800 mm
Measurements depth: 5000 mm
Measurements height: 2900 mm
Machine weight: 11400 kg

Control Unit

Model: SINUMERIK 840D powerline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 0 - 15000 1/MIN
Spindle motor power: 13/20 kw
Number of axis: 4

Movement

X-AXIS Movement: 600 mm
X-AXIS Feed Force: 9600 n
X-AXIS Rapid traverse: 1-60000 mm/min
Y-AXIS Movement: 560 mm
Y-AXIS Feed Force: 8000 n
Y-AXIS Rapid traverse: 1-60000 mm/min
Z-AXIS Movement: 560 mm
Z-AXIS Feed Force: 9600 n
Z-AXIS Rapid traverse: 1-60000 mm/min

Tools

Max weight: 10 (200) kg
Max tool diameter: 90 (160 max) mm
Max tool length: 350 mm
Type of tool holder: SK 40

Media

Main electronic connection: 400 V 50 HZ
Power consumption: 80 KVA

Additional Equipment

- OIL MIST SEPARATOR
- scraper belt conveyor 350 K-1/100 (Knoll)
- HYDROCYCLONE PLANT F 60-1 (KNOLL)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - B-axis travel: 360 º
- - Round table max. Speed 25. 7 rpm
- - Pallet clamping force: 80000 n
- - 2 + 1 pallets
- - Pallets size: 400 x 500 mm
- - Permissible load per pallet: 600 kg

Extra information

- THE MACHINE WORKED PERFECTLY UNTIL IT WAS DECOMMISSIONED 6 MONTHS AGO

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
