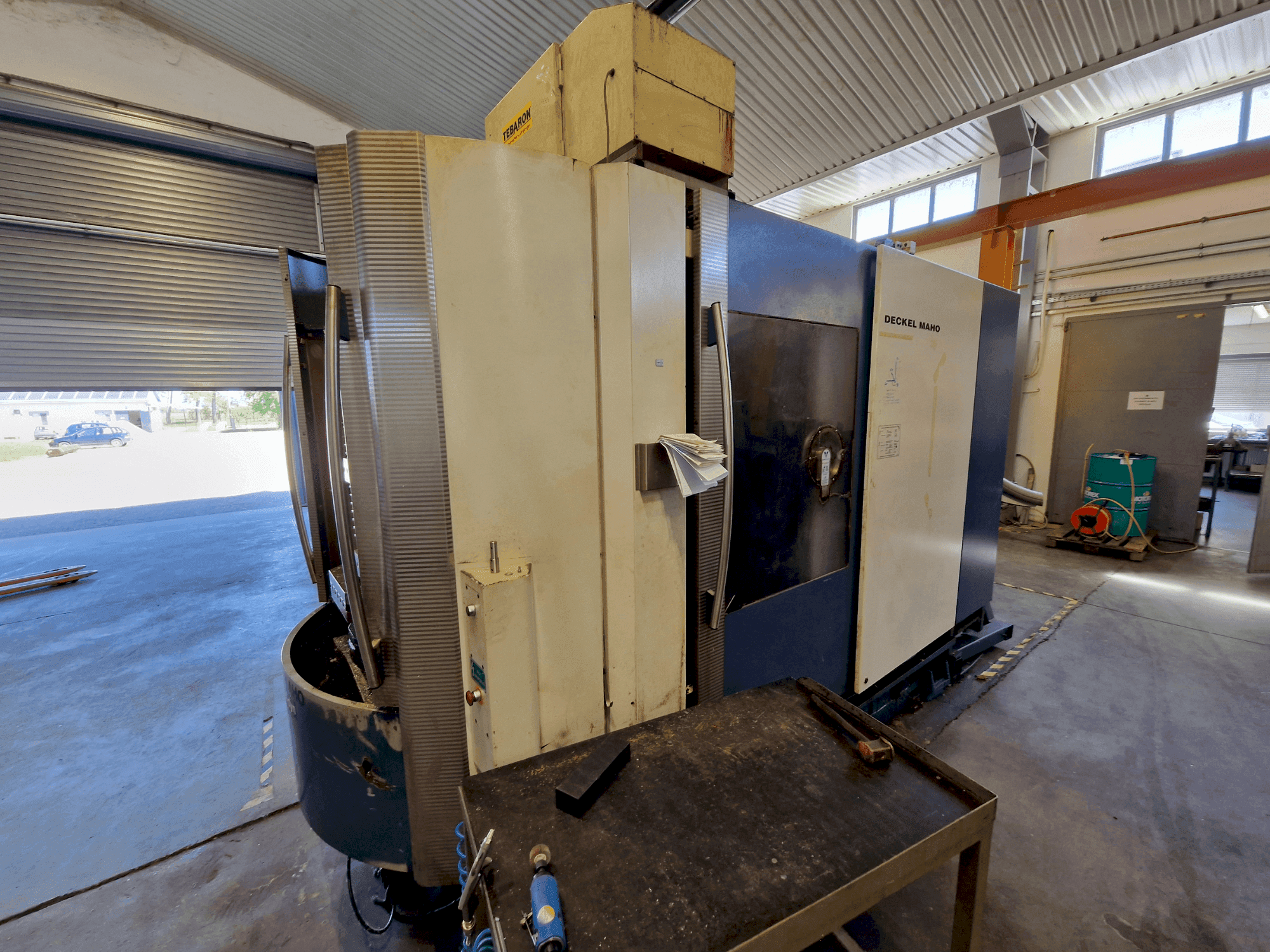

This 4-axis DECKEL MAHO DMC 60 H Hy Din horizontal machining center was manufactured in 2001. It features a robust direct drive motor with speeds up to 15,000 rpm and a torque of up to 191 Nm. The machine includes a versatile tool magazine with capacities ranging from 40 to 180 tools and a maximum tool weight of 12 kg. Ideal for complex machining tasks, the DECKEL MAHO DMC 60 H Hy Din machine we have for sale. Contact us for further details.
Overview
- brand: DECKEL MAHO
- year: 2001
- MODEL: DMC 60 H Hy Din
- production hours: 28815
- application type: Milling
- Location: Hungary
- machine type: Horizontal Machining Centre
- availability: Immediately
Technical Information - DECKEL MAHO DMC 60 H Hy Din
Main drive
- Spindle speed range: 8000 (standard), 15000 (optional) 1/MIN
- Spindle motor power: 13 kW (S1), 20 kW (S6)
- Tool taper: SK 40, HSK 63
Movement
- X-AXIS Movement: 600 mm
- Y-AXIS Movement: 560 mm
- Z-AXIS Movement: 560 mm
- AXIS 1 Movement: 360 °
Table
- Outer length: 400 MM
- Outer width: 500 MM
- TSlots size: x 14H12 mm
- Table load: 350/600 kg
Additional Equipment
- - Multiple tool magazine options
- - Advanced tool handling and balancing features
- - High-precision measurement system
- - Efficient internal coolant supply (optional)
Additional Information
- Technical Machine Benefits:
- - Torque: 124 nm (s1), 191 nm (s6)
- - Speed max. : 25. 7 rpm
- - Pallet clamping force: 80,000 n
- - Tilting moment max. : 8000 nm
- - Tangential moment (clamped max. ): 6000 nm
- - Tangential moment (released max. ): 2600 nm
- - Number of pallets: 2
- - Guide slot (number x width): 1 x 14h7 mm
- - Precision movement: infinitely programmable feed speeds ensure precise control.
- - Tool handling versatility: various tool magazine configurations cater to extensive tooling needs.
- Qualitative Machine Benefits:
- - Tool balancing: meets din iso 1940 standards for reduced vibration and increased precision.
- - Coolant system: optional internal coolant setup enhances tool performance and longevity.
- - Accurate measurement: high-resolution systems ensure precise machining results.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
