DAH LIH DL-MCV1250 Vertical Machining Center

Show in original language

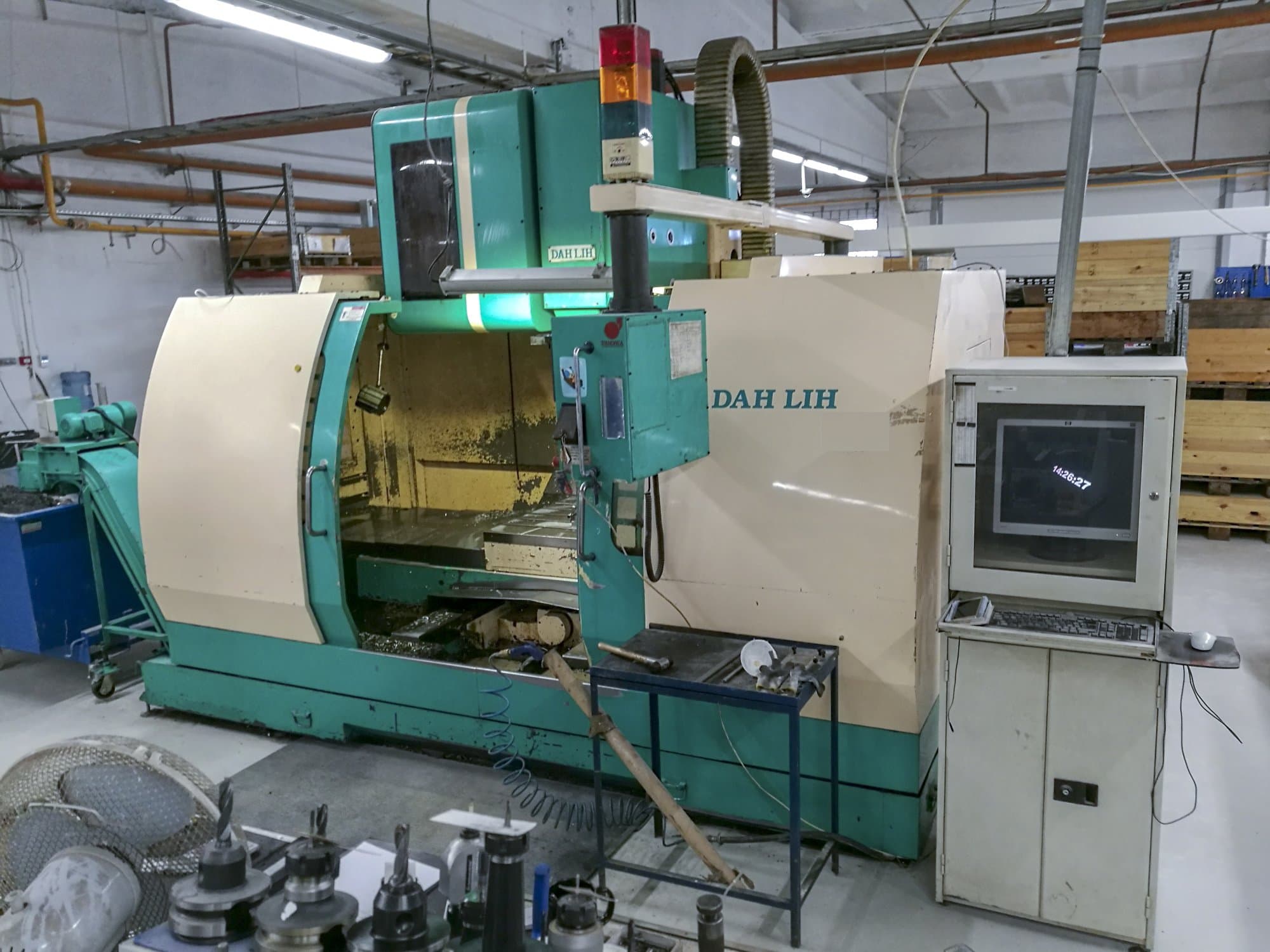

This DAH LIH DL-MCV1250 Vertical Machining Center was built 2001 in Taiwan and has a working record of only 4436 production hours. This model, which is equipped with a FANUC Series O-M Control unit, was mainly working with different types of steel during the past and comes with a bunch of additional equipment like 60 tool holders.

Overview

brand: DAH LIH
year: 2001
MODEL: DL-MCV1250
production hours: 4436
application type: Milling
Location: Latvia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAH LIH DL-MCV1250

General Data

Measurements width: 5006 mm
Measurements depth: 4256 mm
Measurements height: 3500 mm
Machine weight: 10500 kg

Control Unit

Model: Series O-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/min

Movement

X-AXIS Movement: 1250 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 700 mm

Workpiece

Workpiece x: 1100 mm
Workpiece y: 500 mm
Workpiece z: 700 mm
Workpiece weight: 1500 kg

Table

Outer length: 1400 mm
Outer width: 820 mm

Tools

Max weight: 15 kg
Max tool diameter: 110 mm
Max tool length: 350 mm

Media

Main electronic connection: 50 Hz / 3 P
Chip conveyor: Yes

Additional Equipment

- 60x Toolholder
- Oil Filter
- Chip Conveyor
- 4th Axis

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
