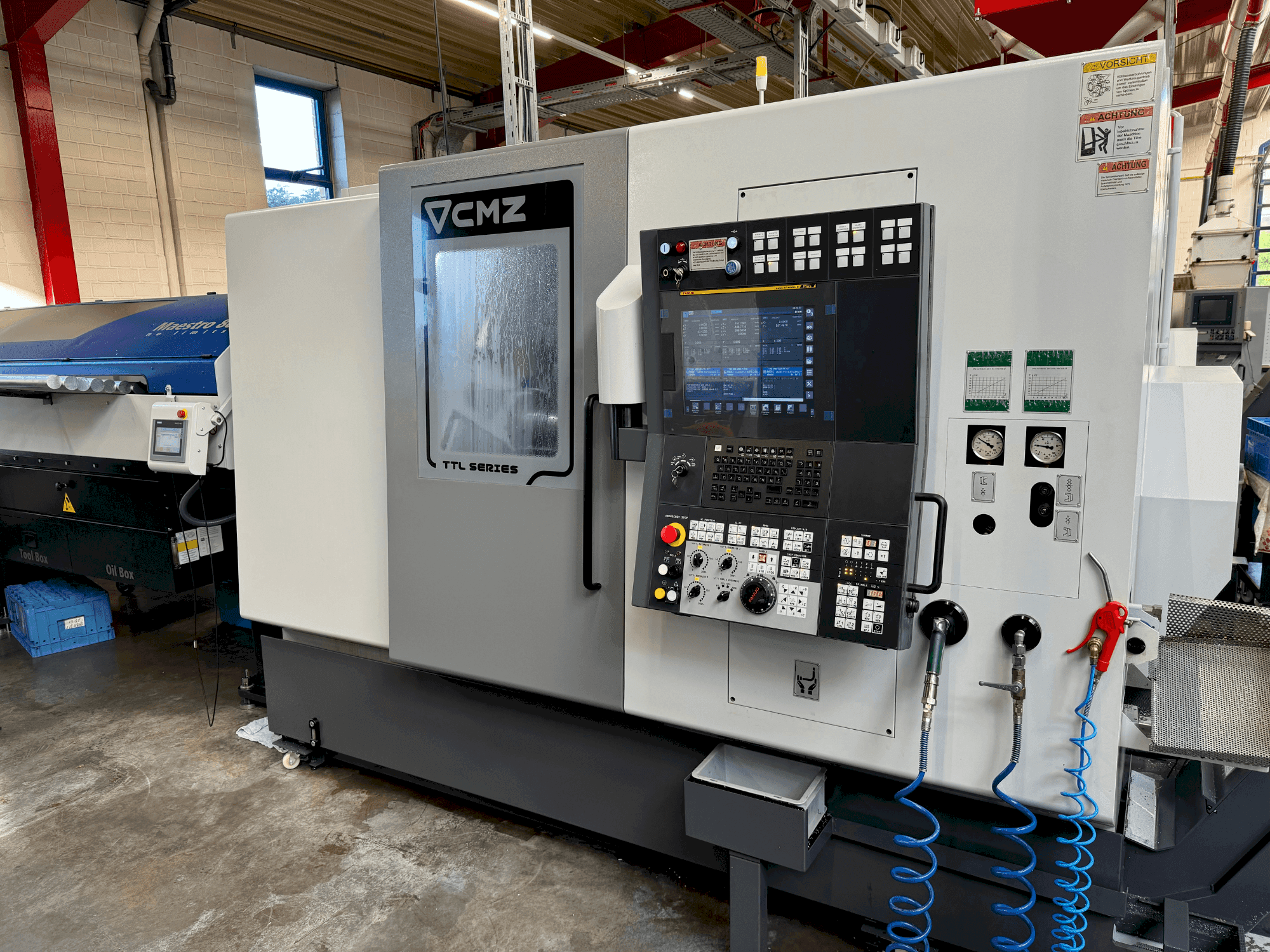

Front view of CMZ TTL-66-66-T1Y-T2Y  machine

CMZ - TTL-66-66-T1Y-T2YDE-TUR-CMZ-2022-00001

£ 186,800
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis CMZ TTL-66-66-T1Y-T2Y lathe was manufactured in 2022. It features a maximum rod diameter of 66mm, turning diameter up to 220mm, and main spindle power of 35Kw. The machine includes a 70 bar high-pressure system with a filter system and an additional tank. A second identical machine is also available from 2022. For more information about this lathe, please reach out to us.

Overview

  • brand: CMZ
  • year: 2022
  • MODEL: TTL-66-66-T1Y-T2Y
  • application type: Turning
  • Location: Germany
  • machine type: Multi-Spindle Turning Machine
  • availability: Immediately

Technical Information - CMZ TTL-66-66-T1Y-T2Y

Main drive

  • Number of spindles: 1
  • Spindle speed range: 4000 rpm 1/MIN
  • Spindle motor power: 35 kW
  • Number of axis: 9

    Additional Equipment

    • - Machine language: German / Machine manuals available for download in pdf format / G codes type A in Fanuc control / LPS for left spindle
    • - Reduction tube for left spindle / 3 jaw power chuck SMW-Autoblock BB-D 210 Ø66 for left spindle with one set of soft jaws / Collet chuck Hainbuch AXFIX 65 (mini) 10794/0003 for left spindle
    • - Changing device Hainbuch diam. 65 / LPS system in right spindle / Tailstock on the right spindle (long version) for moving tailstock center CM 3 (not included in the option) / clamping pressure for right spindle; selectable via M function
    • - 3 jaw power chuck SMW-Autoblok BBD 175 Ø56 for right spindle with one set of soft jaws / Collet chuck Hainbuch AXFIX 65 (mini) 10794/0003 for right-hand spindle / Tool presetter (tool presetter) / Lateral chip conveyor (standard version)
    • - Coolant system consisting of two coolant pumps up to 70 bar, one for each turret, independently adjustable to 70-60-50-40-30-10 bar, mounted on an additional tank of 330 liters, as well as a filter system of 10µm.
    • - Coolant washing nozzle / Machine status light / Tool life monitoring (tool life management) / Tool load monitoring
    • - Programmable, automatic parts catcher (pneumatic) / The workpiece remover is equipped with a collecting tray that opens and closes pneumatically to remove the workpiece.
    • - Coolant supply through right-hand spindle
    • - Optional: Cucchi Giovanni Typ DB EVO70 loader

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Max rod diameter: 66 mm / max turning diameter: 220 mm / torque: 205 nm / distance between main and counter spindle: 800 mm
        • - Speed agw: 12000 min-1 / number of driven tool positions: 12 / high-pressure system: 70 bar with filter system and additional tank
        • - Cmc cnc lathe model: ttl-66-66-t1y-t2y

      Extra information

      • - 2nd identical machine available also from 2022 // the hour meters of the machines are Machine 1 : 8086 hours / Machine 2 : 10775 hours

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
